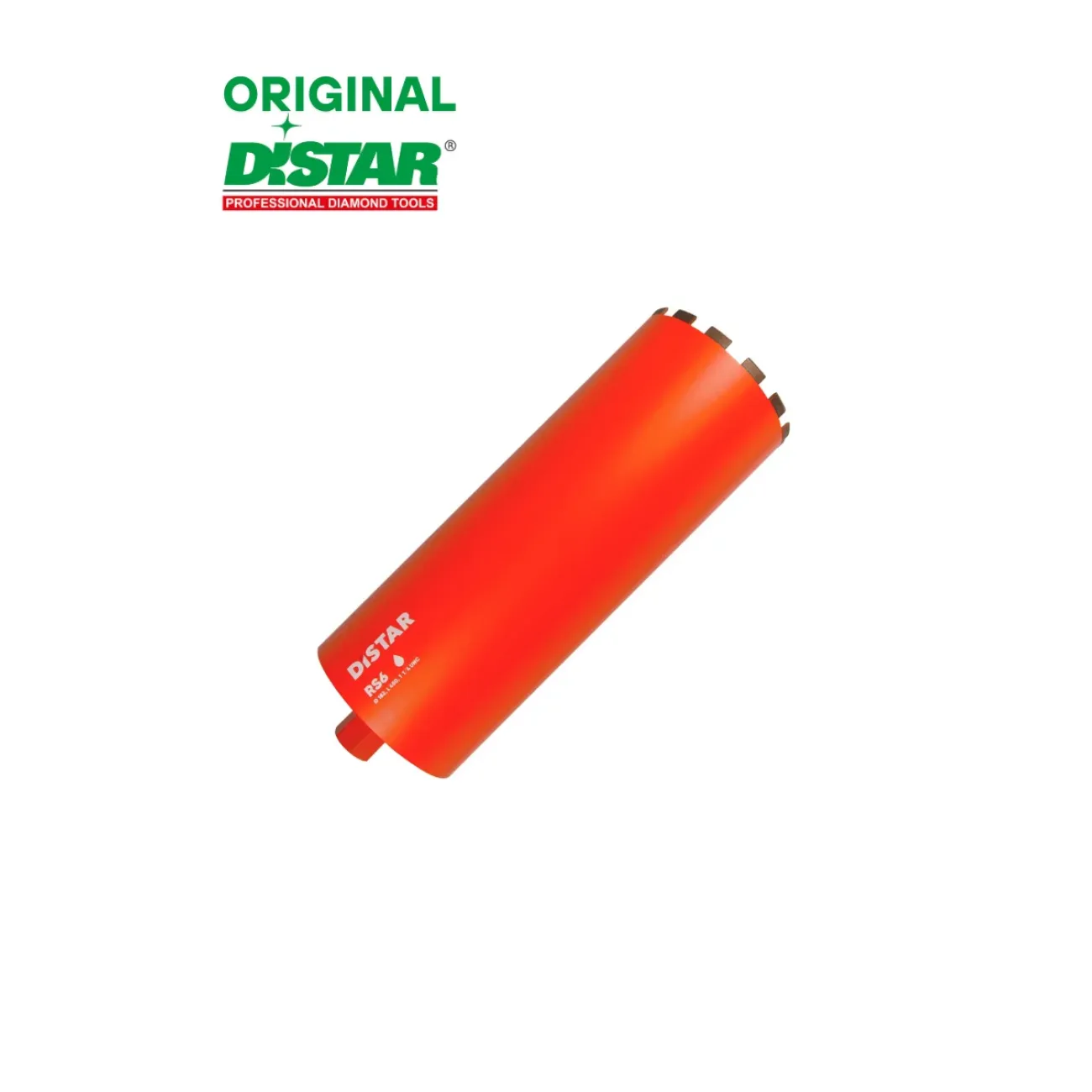

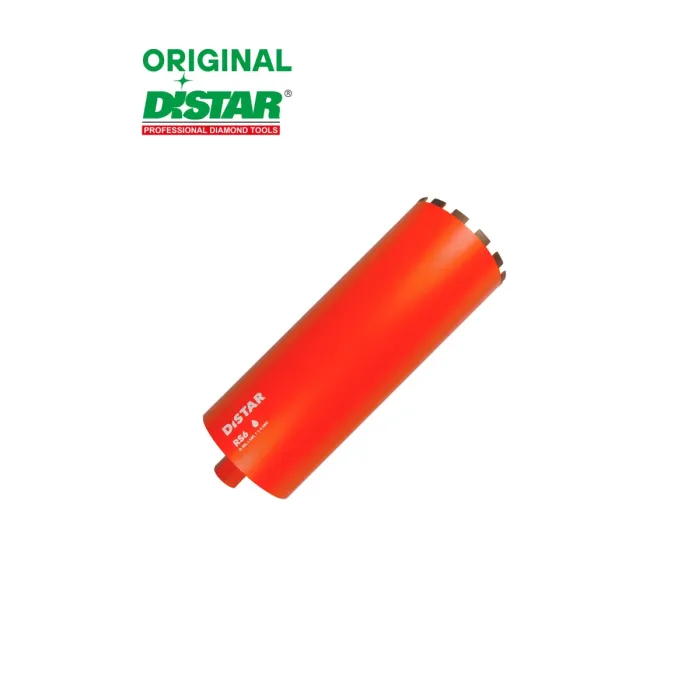

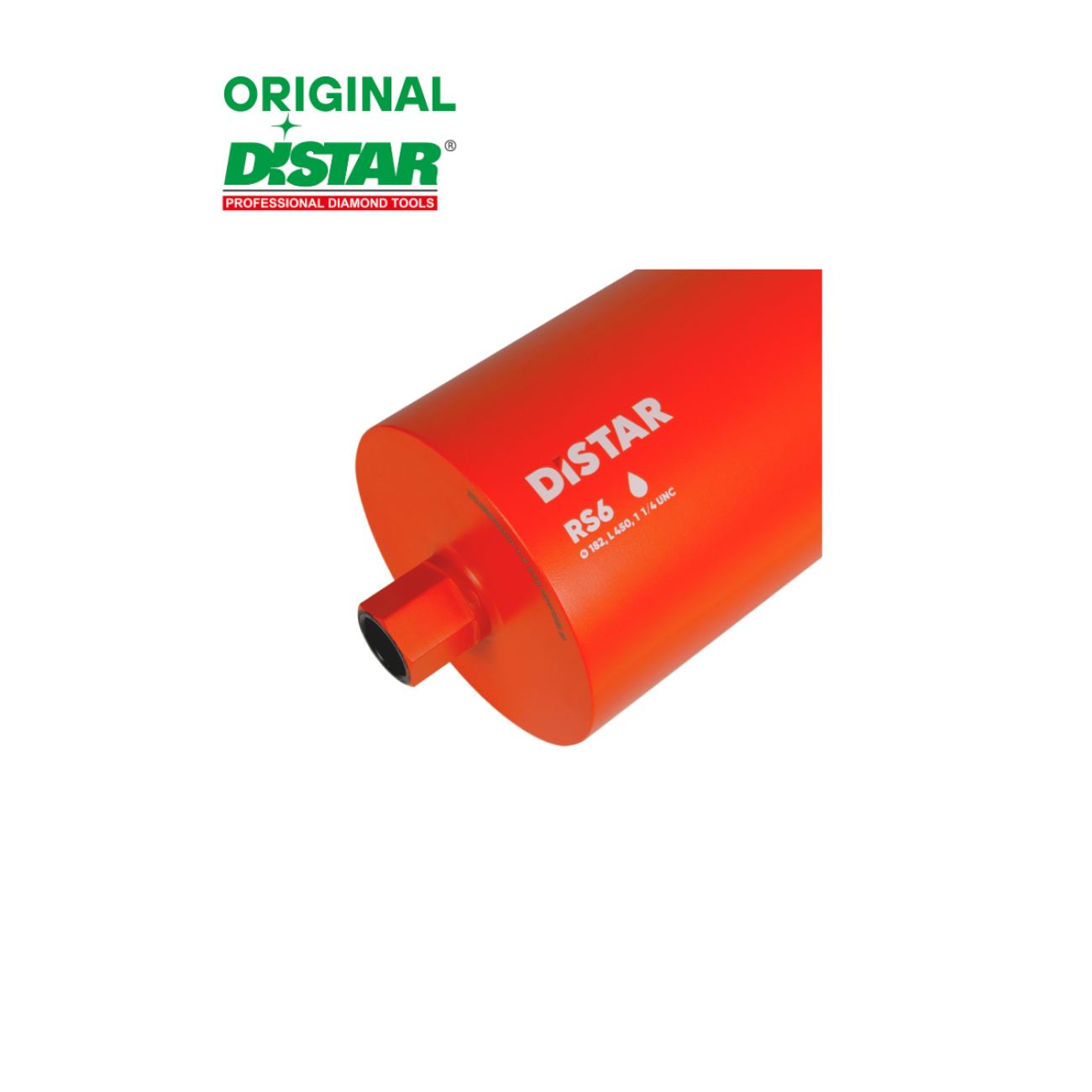

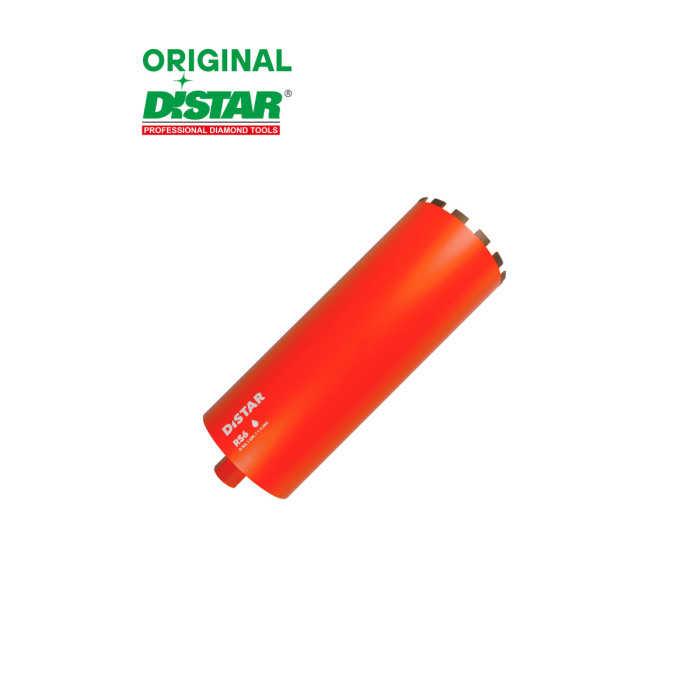

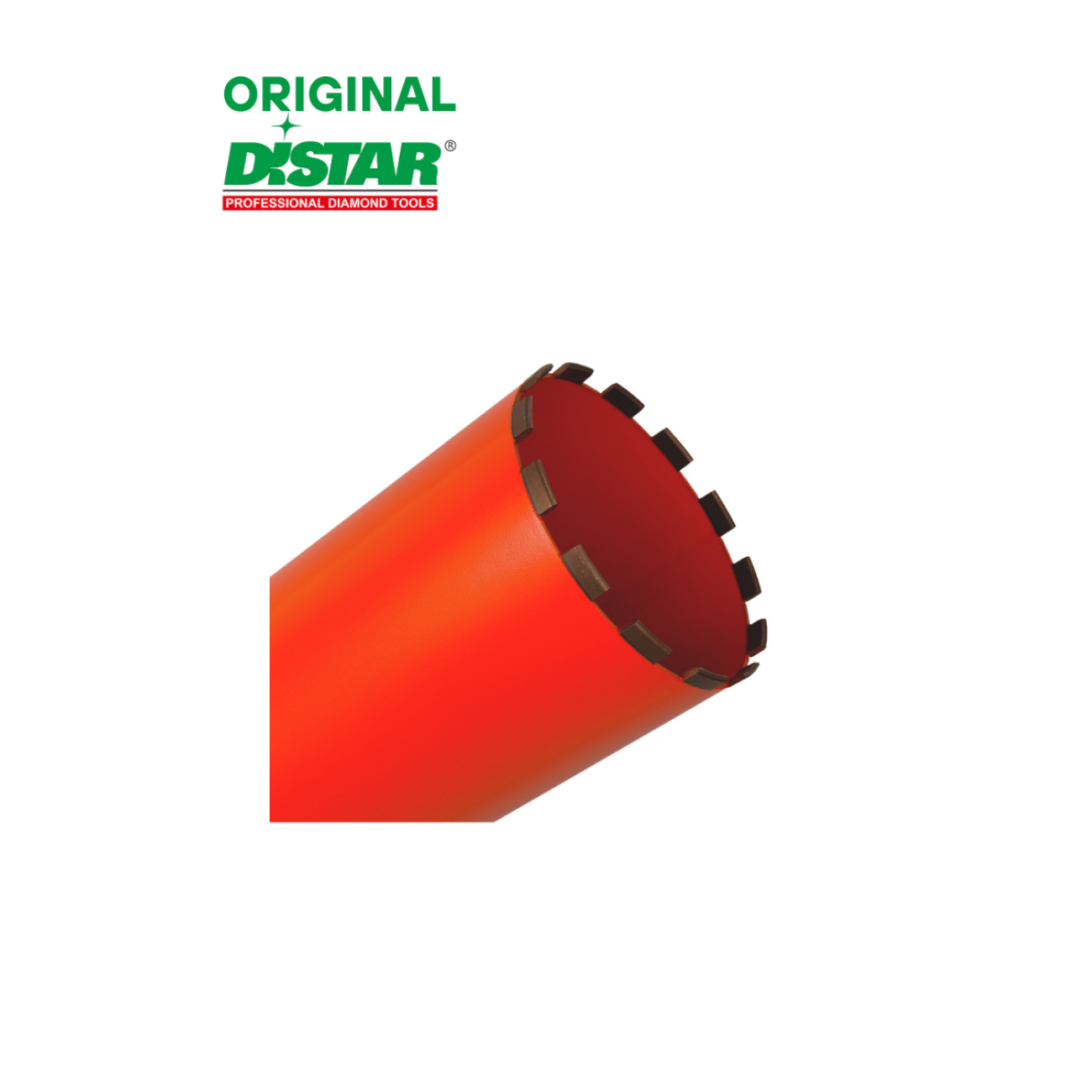

Diamond drill bit Distar DDS-W 182x450x1 1/4 UNC RS6 10170085135 - 910251 - 10170085135

Description Diamond drill bit Distar DDS-W 182x450x1 1/4 UNC RS6 10170085135

Diamond drill bit Distar DDS-W 182x450x1 1/4 UNC RS6 10170085135

• Drilling diameter: 182 mm.
• Drilling tip type: cylindrical with 13 faces.
• Number of segments: 13.
• Tail type external: hexagonal.
• Type of tail: internal thread.
• Tail diameter internal: 1 1/4 UNC.
• Length: 450 mm.
• Cooling: with water.
• Materials for use: concrete, reinforced concrete, brick ․
• Compatible with Diamond drilling machine, drill.
• Packaged in a colored box.

The RS6 diamond drill is made specifically for working with highly reinforced concrete.

Thanks to the soft bond and special diamond, the segment provides high speed even with fine-grained reinforced concrete. The drill can work at a speed of up to 6 linear centimeters per minute. At the same time, its service life reaches 7 linear meters (for a 102 mm drill in reinforced concrete grade M400 with 4 reinforcement bars with a diameter of 22 mm per 30 cm of drilling).

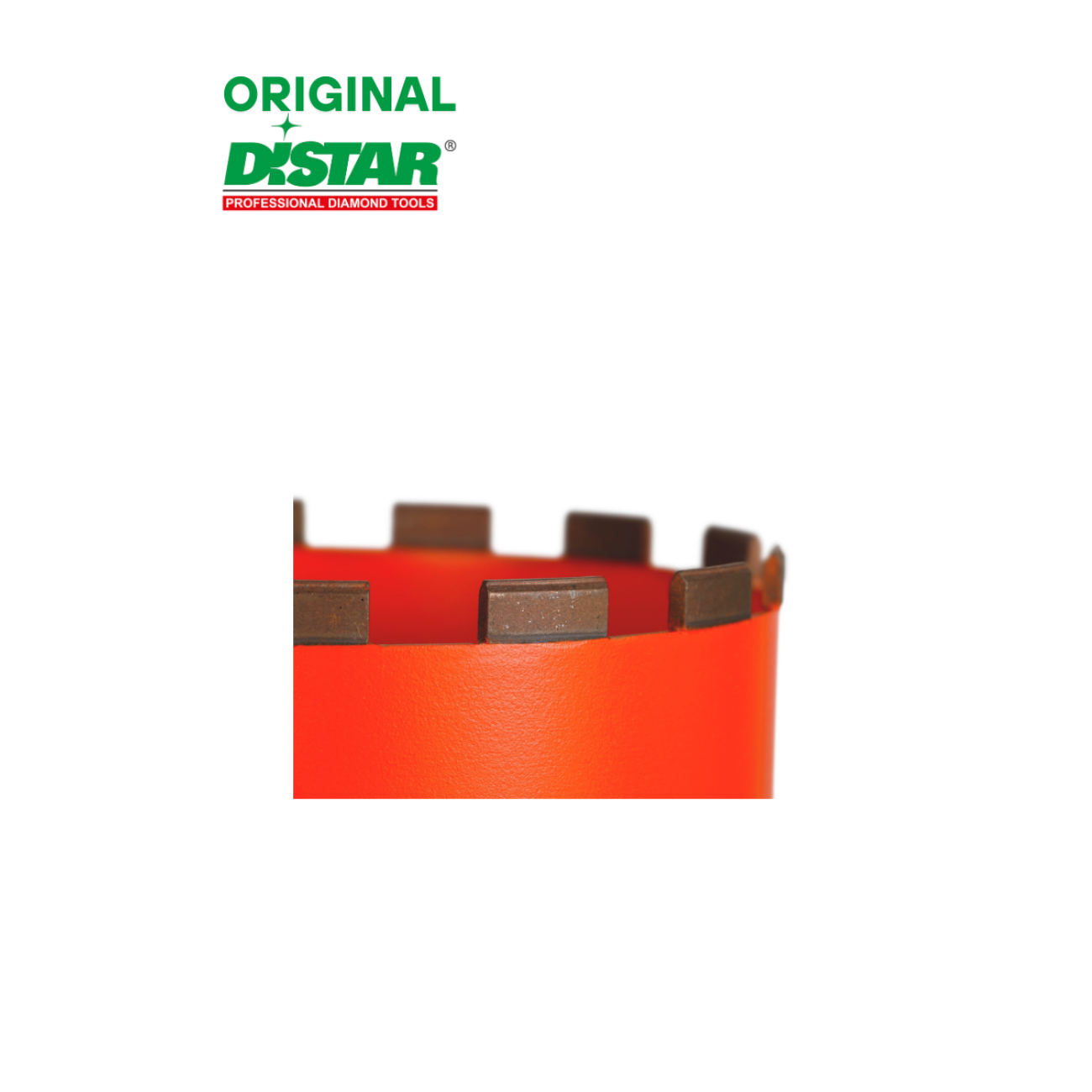

Thanks to the laser welding of diamond segments, the drill can withstand extreme loads and harsh operating conditions.

Depending on its purpose, it is produced in a different range of diameters. Models from 32 to 300 millimeters are available on the market. At the same time, the length of the tool is fixed and equals 450 millimeters.
