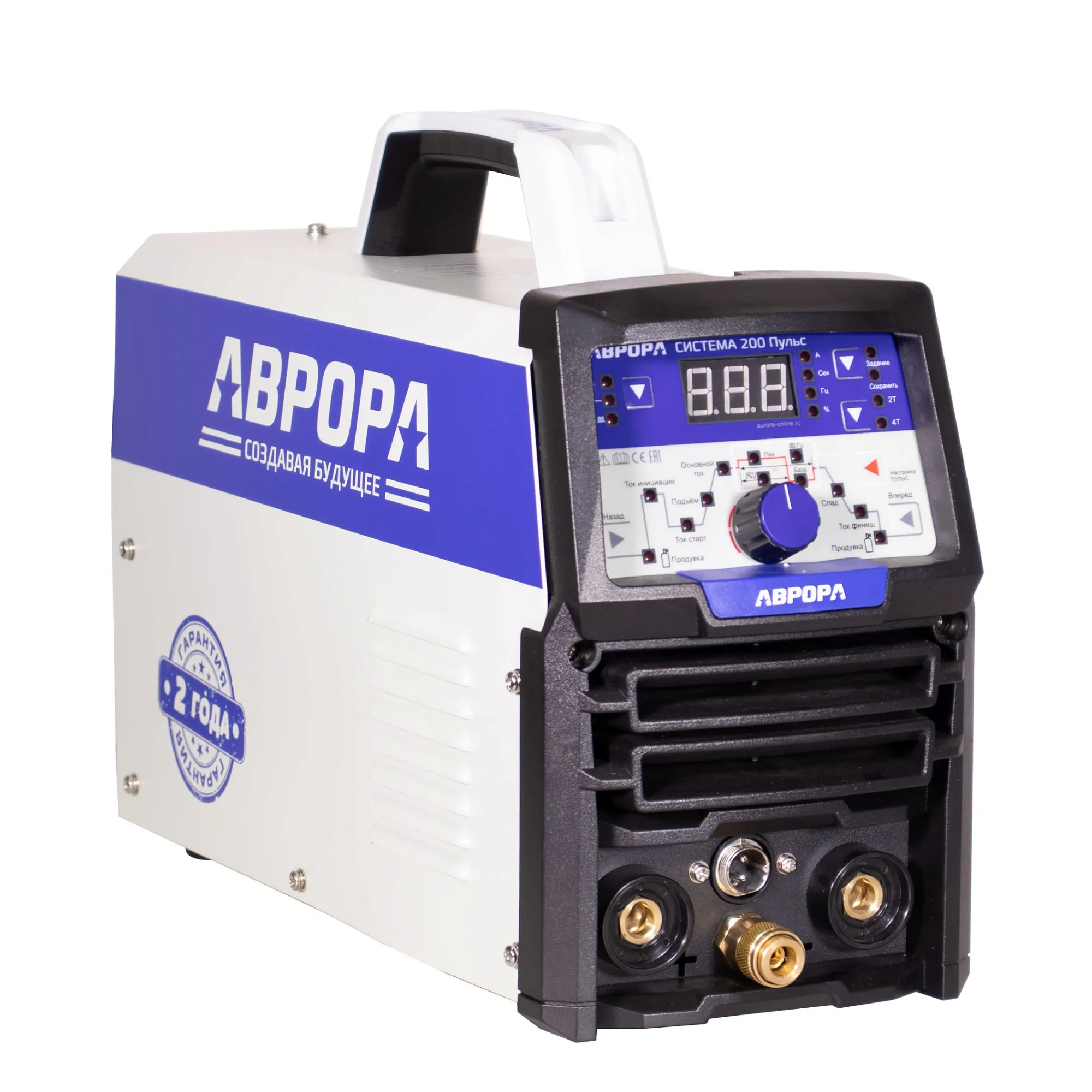

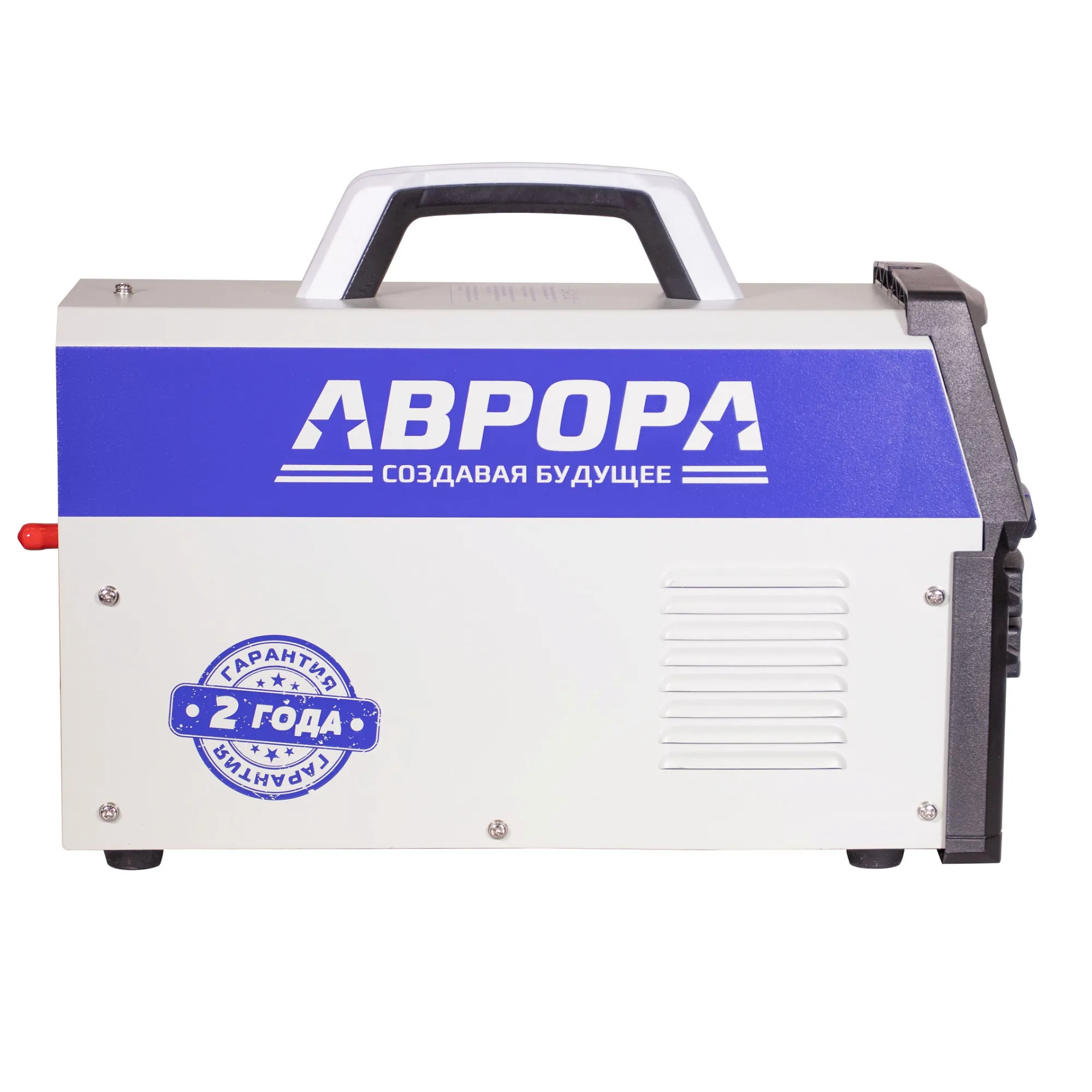

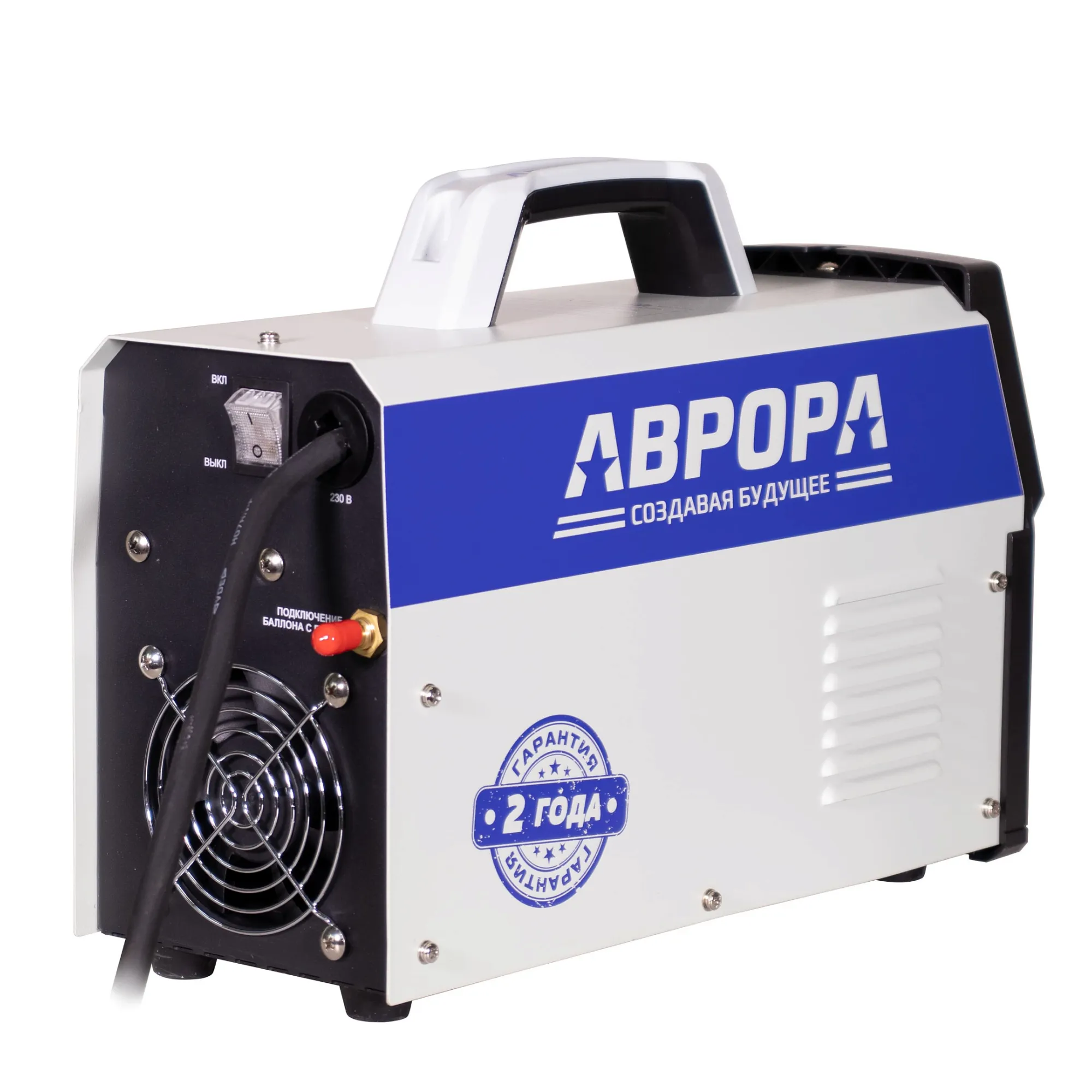

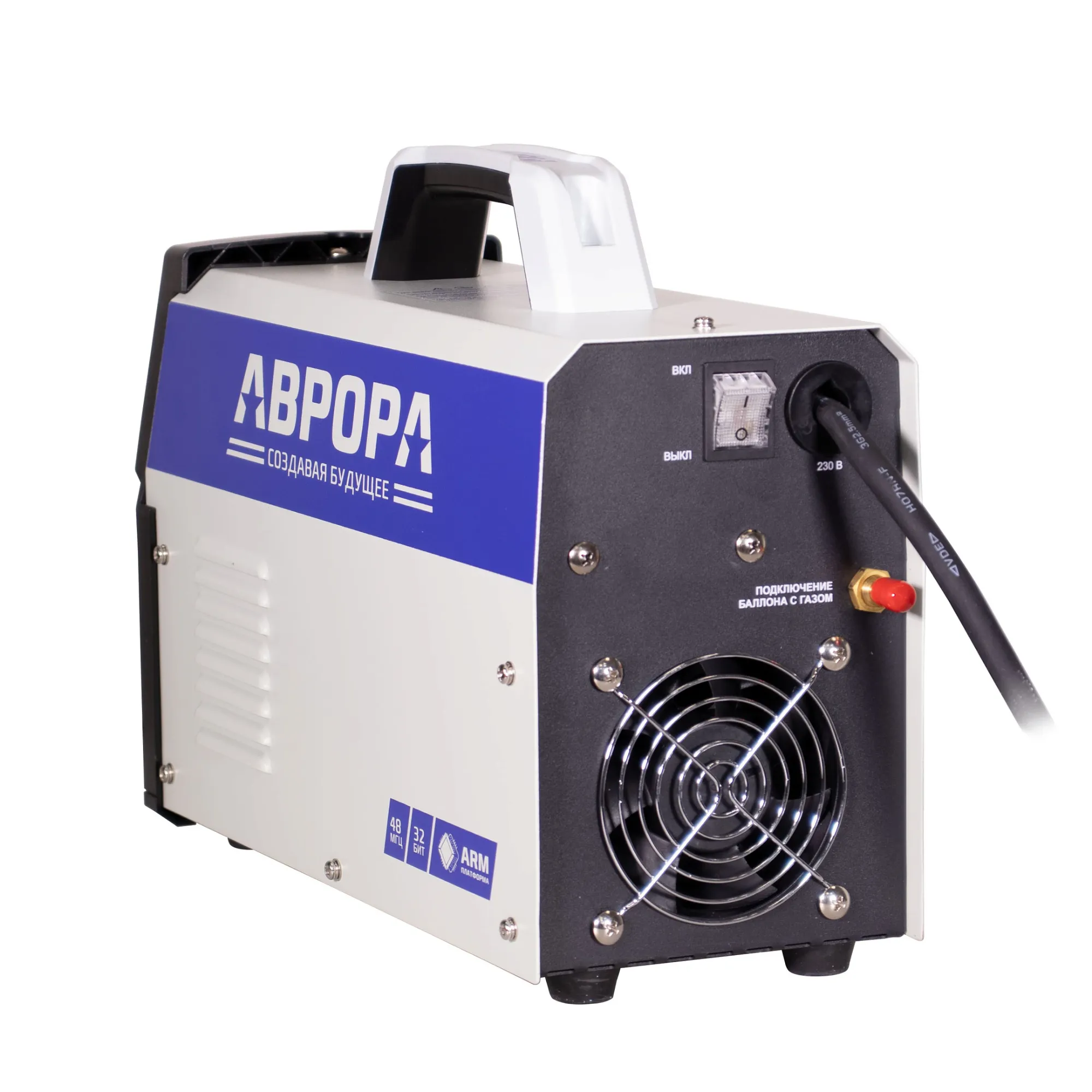

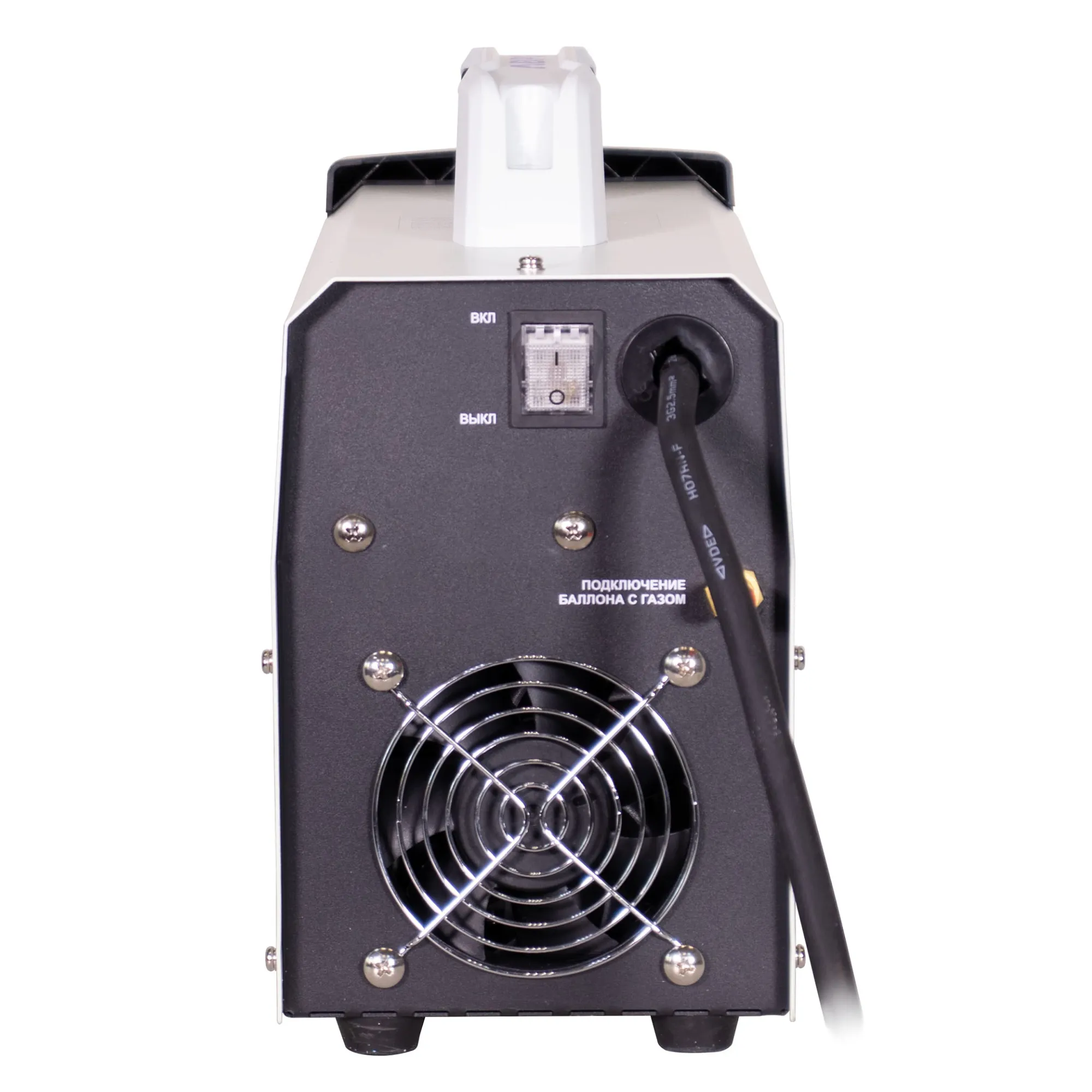

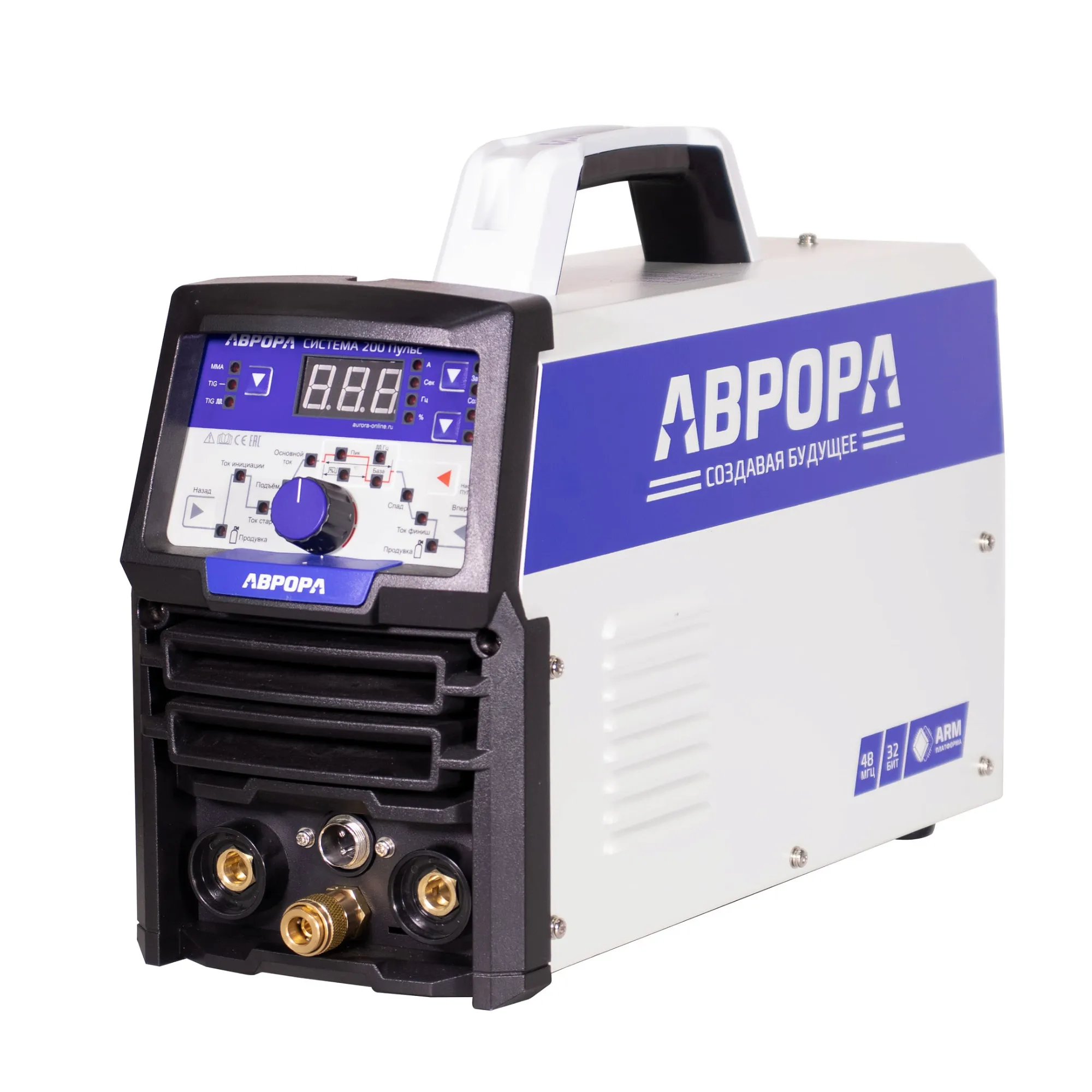

Aurora Sistema 200 PULS TIG welder: max current 200 A

Name: Aurora Sistema 200 PULS TIG welder: max current 200 A
Brand: Aurora
SKU: AP79749480
Price: 188890 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

Top

In stock

Model: Система 200 ПУЛЬС

Vendor code: AP79749480

Brand: Aurora

188,890֏

Price in reward points: 188890

Found it cheaper?

1889 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Aurora Sistema 200 PULS TIG welder, 200 A

Aurora Sistema 200 PULS is a TIG welder: max current 200 A, duty cycle 30%.

Welding

Duty cycle 30%, input voltage 160–250 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current200 A

Duty cycle30%

Input voltage160–250 V

Weight8 kg

Product description

Aurora Sistema 200 PULS is a TIG welder (TIG + MMA). Max current is 200 A, duty cycle 30%, input voltage 160–250 V. It weighs 8 kg.

Advantages

Two processes: TIG and MMA (stick) welding.
Welding current 10–200 A, duty cycle 30%.
Power supply 230 V.
Pulse mode with adjustable frequency and currents.
Non-contact HF arc ignition, 2T/4T modes, gas pre-flow and post-flow.

Technical specifications

Included in the packageMachine, 25 mm² welding cable, 2 m, 200 A earth clamp, TIG-26 torch, 4 m, gas hose, 2 m, collet and nozzle set, user manual

Manufacturer countryChina

PackingBox

Weight kg8

Voltage (Volt)230

Power (W)5600

Welding Type(s)TIG + MMA

Maximum electrode diameter mm4.0

No-load voltage V70

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeTIG welder

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)200

Rated current A200

MMA power consumption, kVA5.6

Protection classClass I

Power factor0.7

Nominal frequency of alternating current, Hz50/60

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %30

Minimum welding current (A)10

Maximum welding current (A)200

Minimum input voltage (V)160

Maximum input voltage (V)250

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21S

Welding cable length (m)2

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)6

Package contents

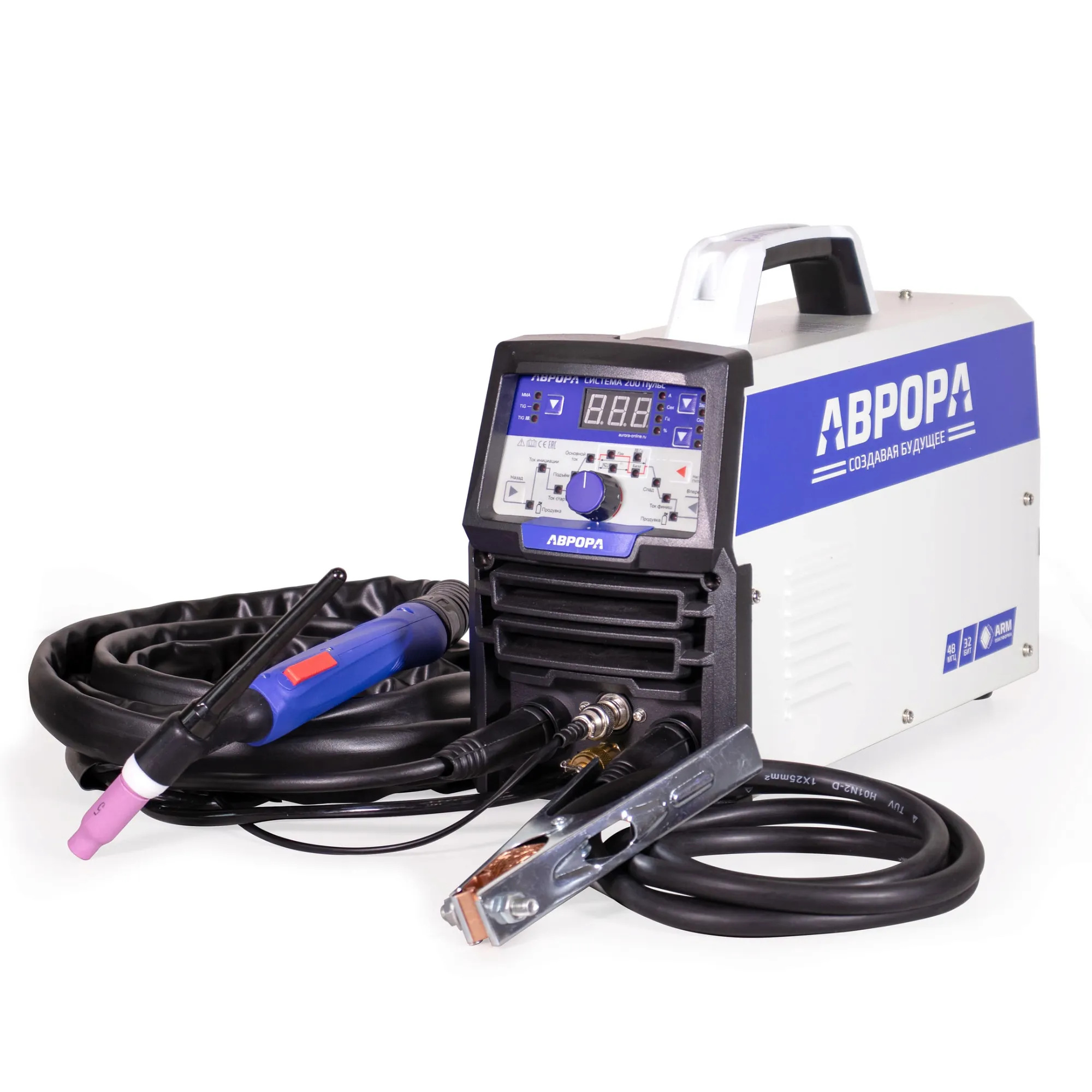

Machine, 25 mm² welding cable, 2 m, 200 A earth clamp, TIG-26 torch, 4 m, gas hose, 2 m, collet and nozzle set, user manual.

Applications

High-quality welding of stainless and carbon steel, copper and titanium in workshops, on pipelines and metal structures.

Main attributes Aurora Sistema 200 PULS TIG welder, 200 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 30

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21S

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 6

Maximum welding current (A) 200

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 10

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 5600

Power factor 0.7

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 2

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 4.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type TIG welder

Weight kg 8

Welding current type Direct current (DC)

Welding Type(s) TIG + MMA

Nutrition

Maximum input voltage (V) 250

Minimum input voltage (V) 160

MMA power consumption, kVA 5.6

No-load voltage V 70

Nominal frequency of alternating current, Hz 50/60

Power supply type Corded

Rated current A 200

Voltage (Volt) 230

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Machine, 25 mm² welding cable, 2 m, 200 A earth clamp, TIG-26 torch, 4 m, gas hose, 2 m, collet and nozzle set, user manual

Reviews about Aurora Sistema 200 PULS TIG welder, 200 A

There are no reviews for this product.

Questions and Answers (FAQ) Aurora Sistema 200 PULS TIG welder, 200 A

There are no questions about this product.

How to use Aurora Sistema 200 PULS TIG welder, 200 A

Soon...
