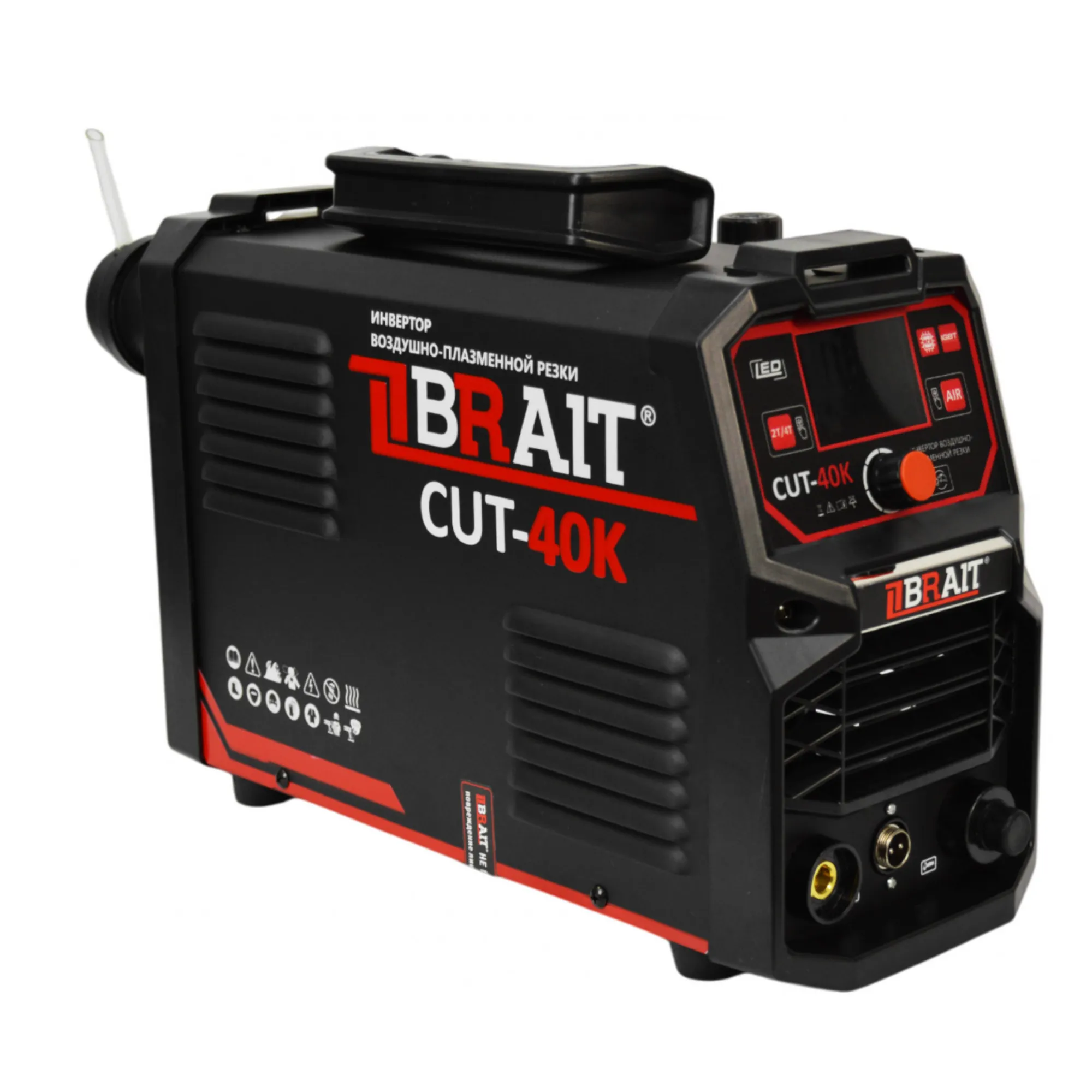

Brait CUT-40K plasma cutter: max current 40 A

Name: Brait CUT-40K plasma cutter: max current 40 A
Brand: BRAIT
SKU: IN96899193
Price: 165557 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: CUT-40K

Vendor code: IN96899193

Brand: BRAIT

165,557֏

Price in reward points: 165557

Found it cheaper?

8278 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Brait CUT-40K plasma cutter, 40 A

Brait CUT-40K is a plasma cutter: max current 40 A, cut up to 10 mm.

Plasma cutting

Cut up to 10 mm, input voltage 198–242 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current40 A

Cut up to10 mm

Input voltage198–242 V

Weight7.5 kg

Product description

Brait CUT-40K is a plasma cutter (plasma cutting). Max current is 40 A, cut up to 10 mm, input voltage 198–242 V. It weighs 7.5 kg.

Advantages

Built-in air compressor.
Cutting current 15–40 A, stepless.
Cuts 0.3–10 mm (up to 12 mm).
Duty cycle 60%, power 6.6 kW.

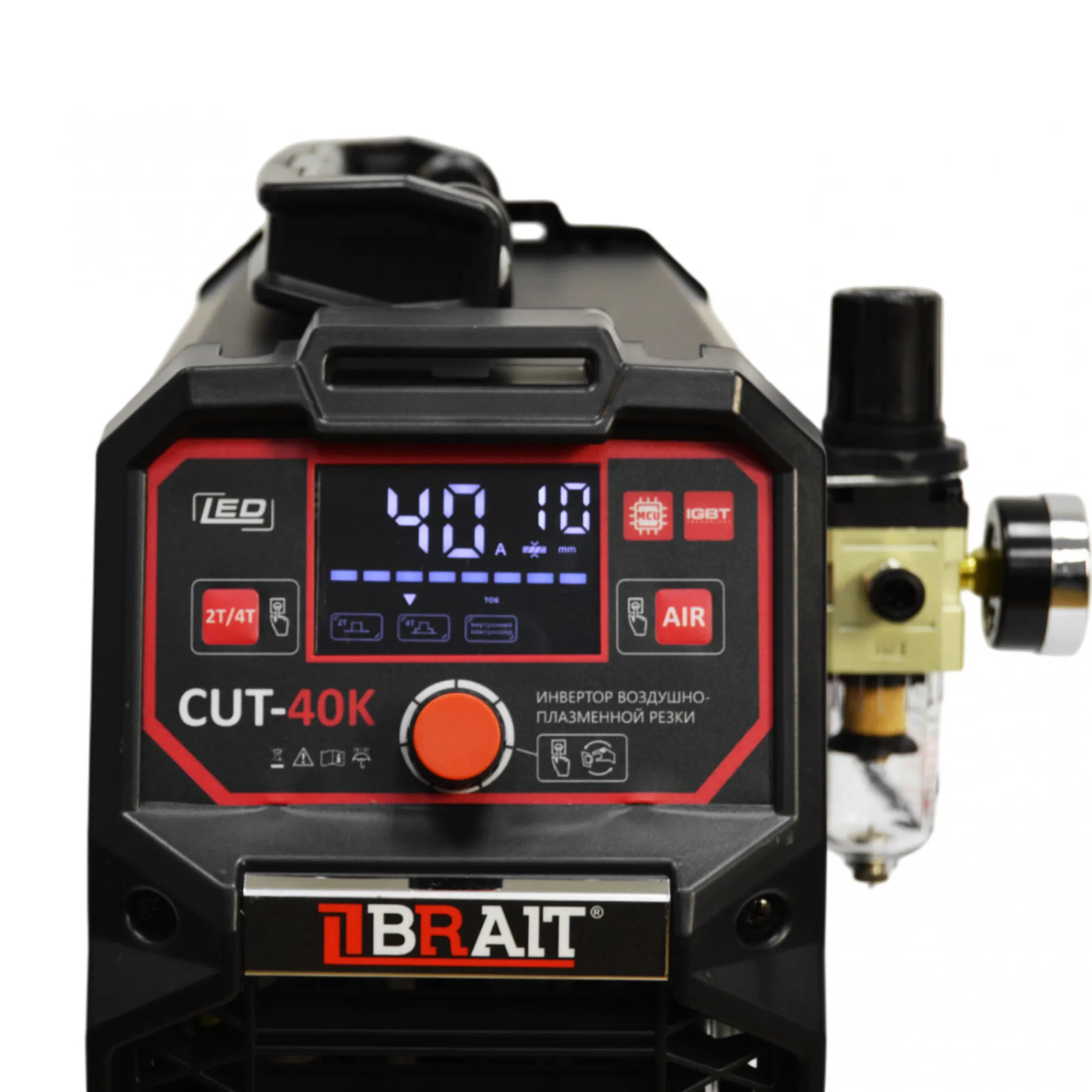

High-frequency arc ignition, 2T/4T modes.
Mains 220 V ±10%.

Technical specifications

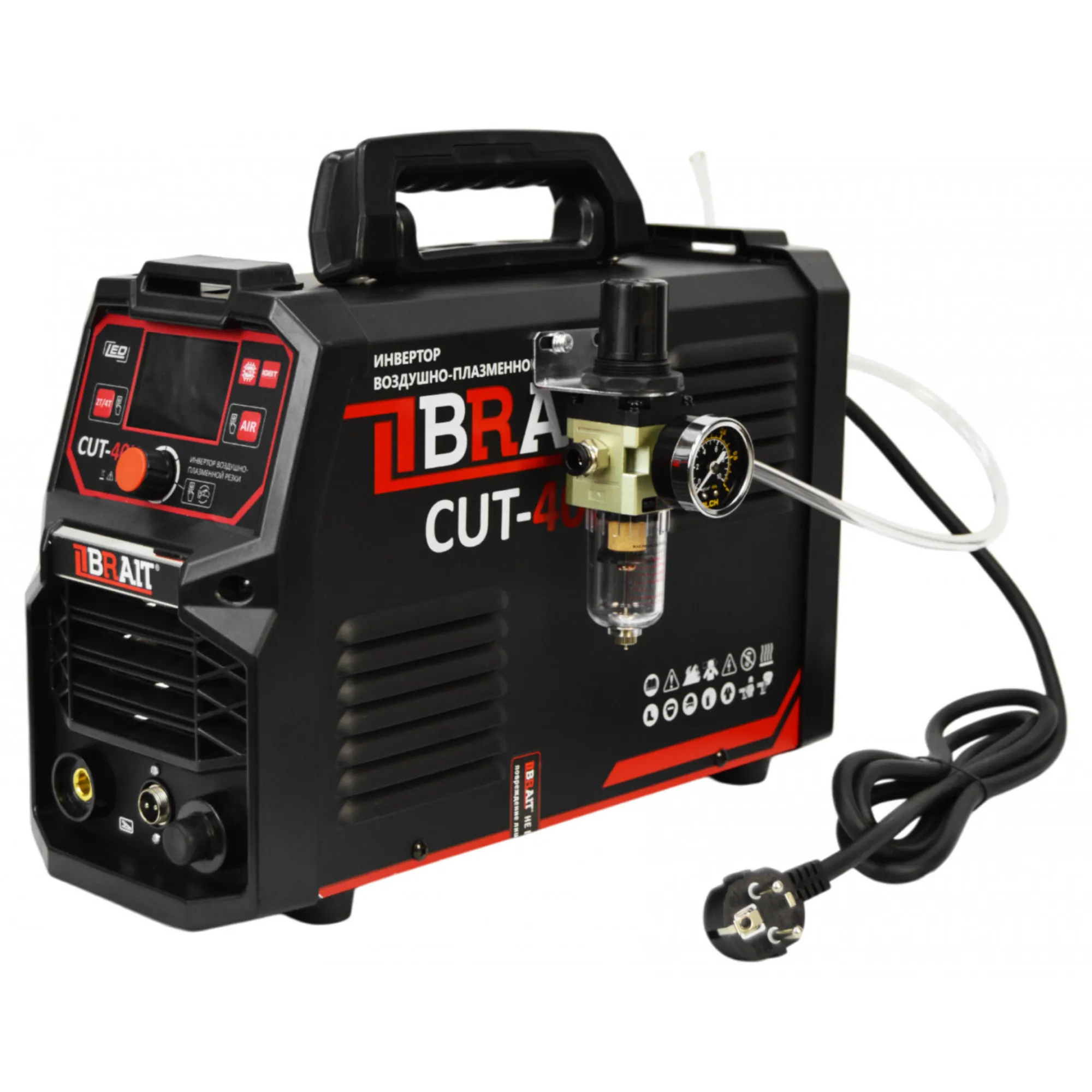

Included in the packageAir-plasma cutting inverter, PT31 plasma torch (5 m lead), welding cable with earth clamp, regulator with air filter, operating manual

Manufacturer countryChina

PackingBox

Weight kg7.5

Voltage (Volt)220

Power (W)6600

Welding Type(s)Plasma cutting (CUT)

Maximum electrode diameter mm0

No-load voltage V280

Warranty period. month12

Minimum electrode diameter mm0

Pull Force Lbs0

Air flow (l/min)100

TypePlasma cutter

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)220

Rated current A100

MMA power consumption, kVA6.6

Protection classClass I

Power factor0.73

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)10

Maximum cutting thickness in stainless steel (mm)10

Duty cycle, %60

Minimum welding current (A)15

Maximum welding current (A)40

Minimum input voltage (V)198

Maximum input voltage (V)242

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartNo

Arc ForceNo

Anti-StickNo

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21S

Welding cable length (m)5

Cooling typeAir

Built-in compressorYes

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)0

Package contents

Air-plasma cutting inverter, PT31 plasma torch (5 m lead), welding cable with earth clamp, regulator with air filter, operating manual.

Applications

Cutting of steel, stainless steel, aluminium and other conductive metals in workshops, production and on site.

Main attributes Brait CUT-40K plasma cutter, 40 A

Technical

Anti-Stick No

Arc Force No

Built-in compressor Yes

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start No

Ingress protection rating (IP) IP21S

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 10

Maximum cutting thickness in stainless steel (mm) 10

Maximum weldable metal thickness (mm) 0

Maximum welding current (A) 40

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 15

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 6600

Power factor 0.73

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 5

Minimum electrode diameter mm 0

Maximum electrode diameter mm 0

Vacuum pressure

Air flow (l/min) 100

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type Plasma cutter

Weight kg 7.5

Welding current type Direct current (DC)

Welding Type(s) Plasma cutting (CUT)

Nutrition

Maximum input voltage (V) 242

Minimum input voltage (V) 198

MMA power consumption, kVA 6.6

No-load voltage V 280

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 100

Voltage (Volt) 220

Size

Cable length (cm) 220

Packing

Packing Box

Set

Included in the package Air-plasma cutting inverter, PT31 plasma torch (5 m lead), welding cable with earth clamp, regulator with air filter, operating manual
