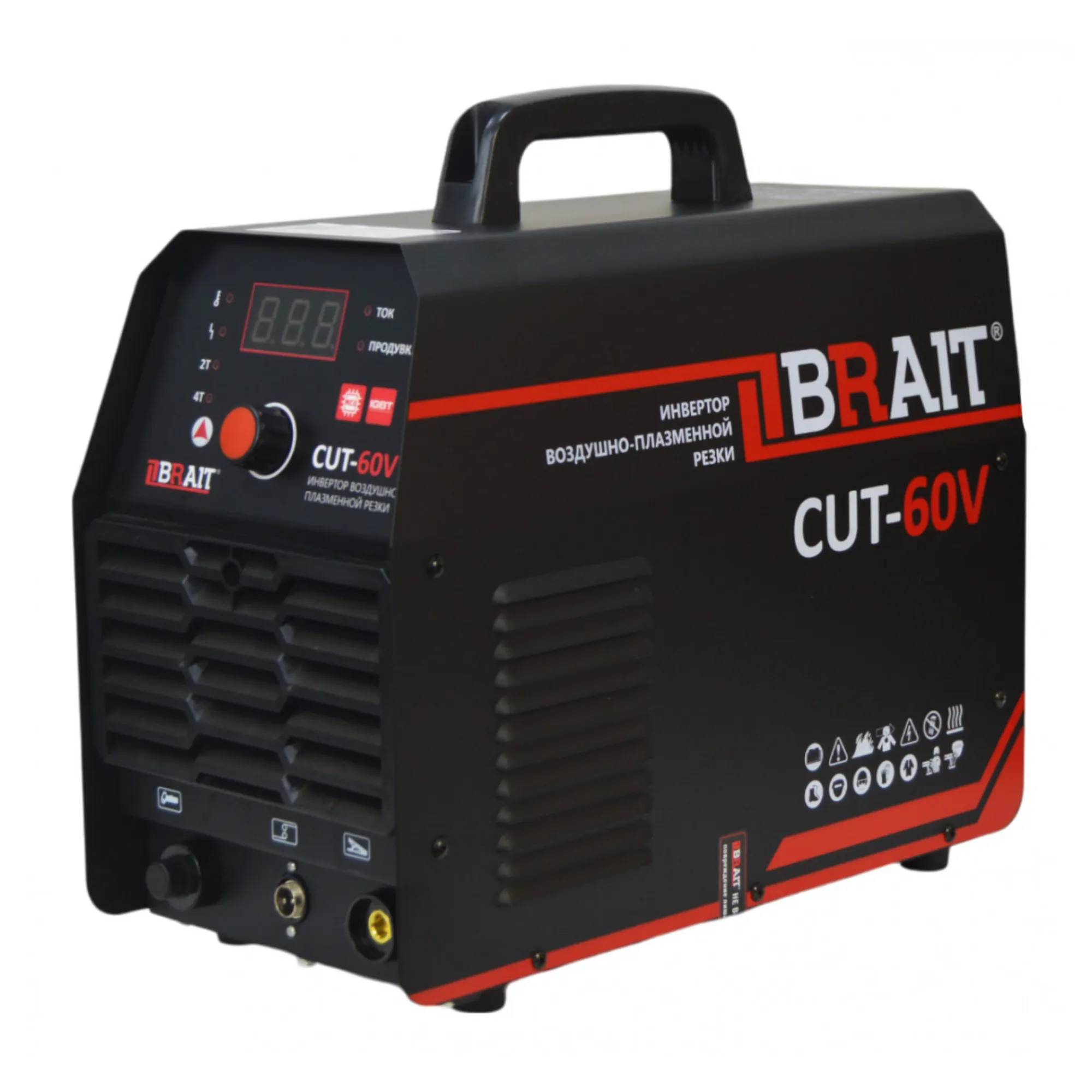

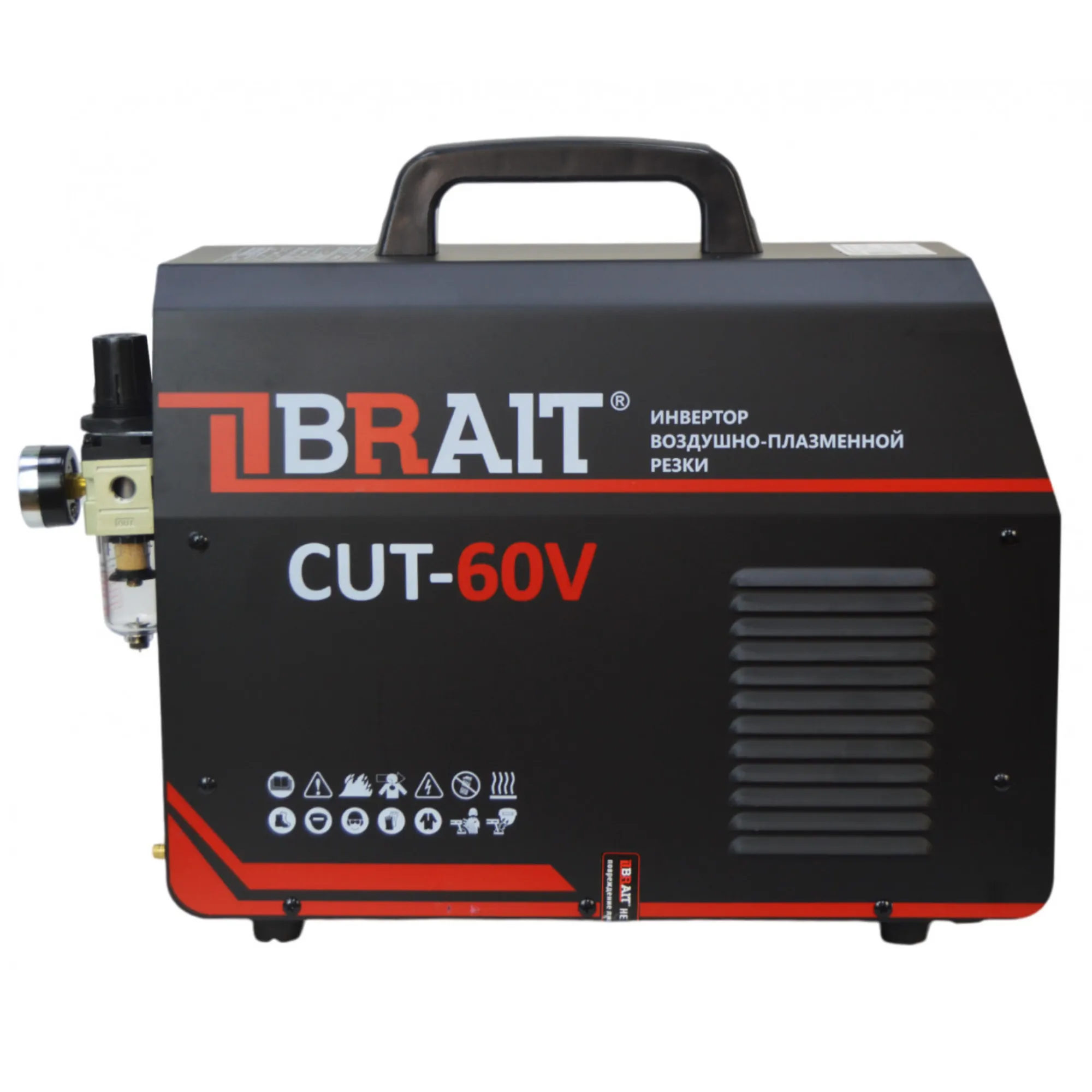

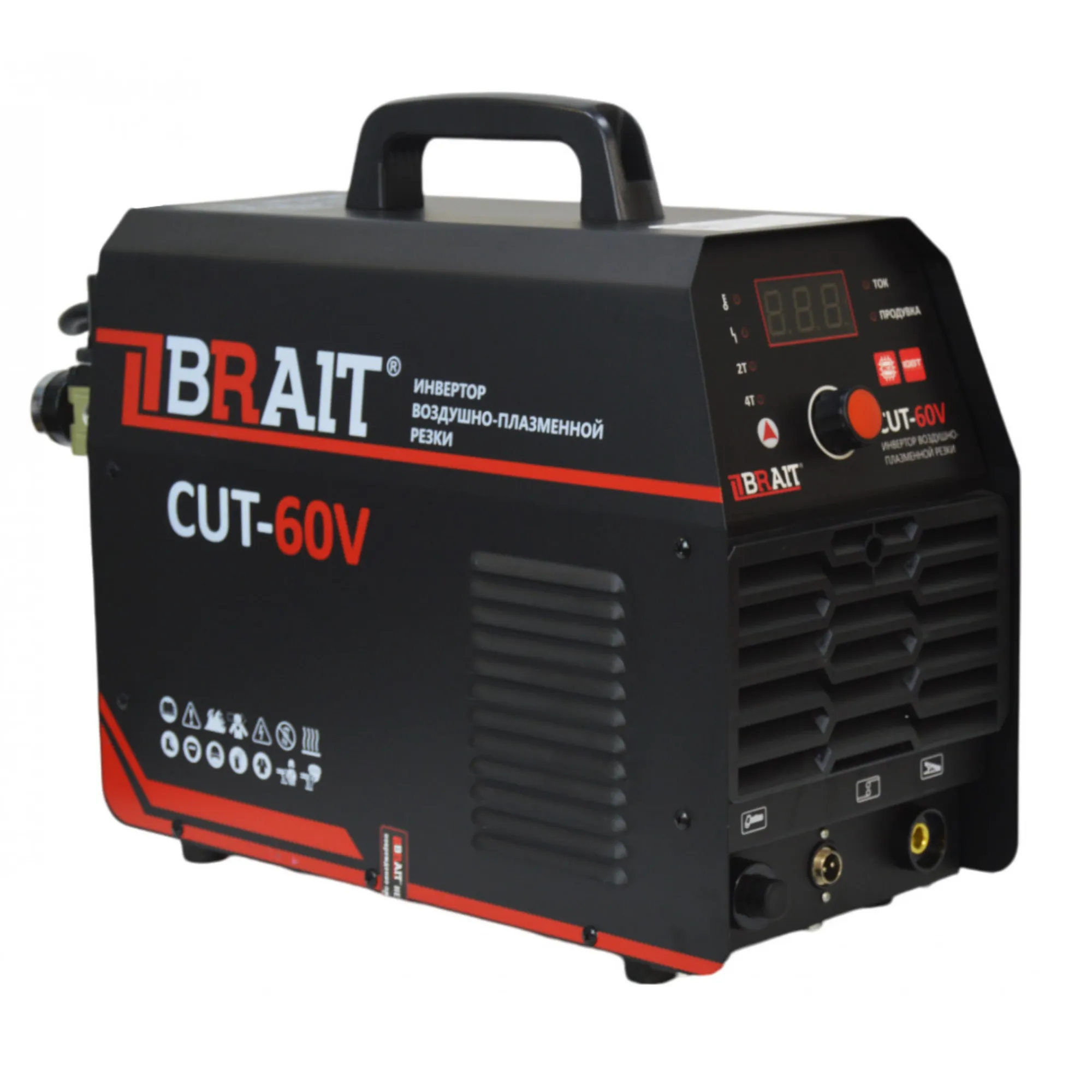

Brait CUT-60V plasma cutter: max current 60 A

Filter
27222 - 4279034 ֏ Price
- ֏
Stock status
Display
Duty cycle, %
Type
Power (Watts)
3.4 - 140 Weight
-
New
Instrument class
Maximum electrode diameter (mm)
Brand
Maximum welding current (A)
Supply voltage (V)
Welding Type(s)
Maximum cutting capacity in steel 400 N/mm² (mm)
Welding current type
Maximum wire diameter (mm)
Gasless welding (flux-cored wire)
MMA power consumption, kVA
Rated current A
New
In stock
Model: CUT-60V
Vendor code: IN46254009
Brand: BRAIT
216,668֏
Price in reward points: 216668
Found it cheaper?
10833 points to the account
Payment
Delivery
Delivery within 2 hours.
Delivery within 2 hours.
Yerevan
3,000֏
Delivery within 24 hours.
Delivery within 24 hours.
Yerevan
Free
Delivery within 3 hours.
Delivery within 3 hours.
Regions adjacent to Yerevan
5,000֏
Delivery within 36 hours.
Delivery within 36 hours.
Regions adjacent to Yerevan
Free
Delivery within 24 hours.
Delivery within 24 hours.
Regions not adjacent to Yerevan
35,000֏
Delivery within 7 days.
Delivery within 7 days.
Regions not adjacent to Yerevan
Free

Description Brait CUT-60V plasma cutter, 60 A

Brait CUT-60V is a plasma cutter: max current 60 A, cut up to 20 mm.
Plasma cutting

Cut up to 20 mm, input voltage 342–418 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current60 A
Cut up to20 mm
Input voltage342–418 V
Weight12.5 kg
Product description

Brait CUT-60V is a plasma cutter (plasma cutting). Max current is 60 A, cut up to 20 mm, input voltage 342–418 V. It weighs 12.5 kg.

Advantages
  • Cutting current up to 60 A.
  • Cuts steel up to 20 mm.
  • 380 V supply.
  • Overheat protection, fan cooling.
  • 60% duty cycle.
  • 2T/4T modes and gas purge.
Technical specifications
Included in the packagePlasma cutting inverter, plasma torch, earth cable with clamp, moisture separator/regulator, manual
Manufacturer countryChina
PackingBox
Weight kg12.5
Voltage (Volt)380
Power (W)9200
Welding Type(s)Plasma cutting (CUT)
Maximum electrode diameter mm0
No-load voltage V290
Warranty period. month12
Minimum electrode diameter mm0
Pull Force Lbs0
Air flow (l/min)120
TypePlasma cutter
Power supply typeCorded
Instrument classProfessional
Cable length (cm)220
Rated current A100
MMA power consumption, kVA9.9
Protection classClass I
Power factor0.93
Nominal frequency of alternating current, Hz50
DisplayYes
Overheat protectionYes
Maximum cutting capacity in steel 400 N/mm² (mm)20
Maximum cutting thickness in stainless steel (mm)14
Duty cycle, %60
Minimum welding current (A)20
Maximum welding current (A)60
Minimum input voltage (V)342
Maximum input voltage (V)418
Welding current typeDirect current (DC)
Minimum wire diameter (mm)0
Maximum wire diameter (mm)0
Maximum wire spool weight (kg)0
Gasless welding (flux-cored wire)No
Hot StartNo
Arc ForceNo
Anti-StickNo
VRD (voltage reduction device)No
Ingress protection rating (IP)IP21S
Welding cable length (m)4
Cooling typeAir
Built-in compressorNo
Arc ignition typeNon-contact (HF)
Maximum weldable metal thickness (mm)0
Package contents
Plasma cutting inverter, plasma torch, earth cable with clamp, moisture separator/regulator, manual.
Applications
Heavy-duty cutting of thick metal in steel fabrication, ship repair and industrial workshops.

Main attributes Brait CUT-60V plasma cutter, 60 A

Technical
Anti-Stick No
Arc Force No
Built-in compressor No
Certificate of Conformity number
Certificate/declaration expiration date
Date of registration of the certificate/declaration
Declaration of Conformity number
Display Yes
Document number on the customs status of goods
Duty cycle, % 60
Gasless welding (flux-cored wire) No
Hot Start No
Ingress protection rating (IP) IP21S
Instrument class Professional
Manufacturer country China
Maximum cutting capacity in steel 400 N/mm² (mm) 20
Maximum cutting thickness in stainless steel (mm) 14
Maximum weldable metal thickness (mm) 0
Maximum welding current (A) 60
Maximum wire diameter (mm) 0
Maximum wire spool weight (kg) 0
Minimum welding current (A) 20
Minimum wire diameter (mm) 0
Overheat protection Yes
Power (W) 9200
Power factor 0.93
Protection class Class I
Pull Force Lbs 0
VRD (voltage reduction device) No
Warranty period. month 12
Welding cable length (m) 4
Minimum electrode diameter mm 0
Maximum electrode diameter mm 0
Vacuum pressure
Air flow (l/min) 120
Structure
Arc ignition type Non-contact (HF)
Cooling type Air
Type Plasma cutter
Weight kg 12.5
Welding current type Direct current (DC)
Welding Type(s) Plasma cutting (CUT)
Nutrition
Maximum input voltage (V) 418
Minimum input voltage (V) 342
MMA power consumption, kVA 9.9
No-load voltage V 290
Nominal frequency of alternating current, Hz 50
Power supply type Corded
Rated current A 100
Voltage (Volt) 380
Size
Cable length (cm) 220
Packing
Packing Box
Set
Included in the package Plasma cutting inverter, plasma torch, earth cable with clamp, moisture separator/regulator, manual
