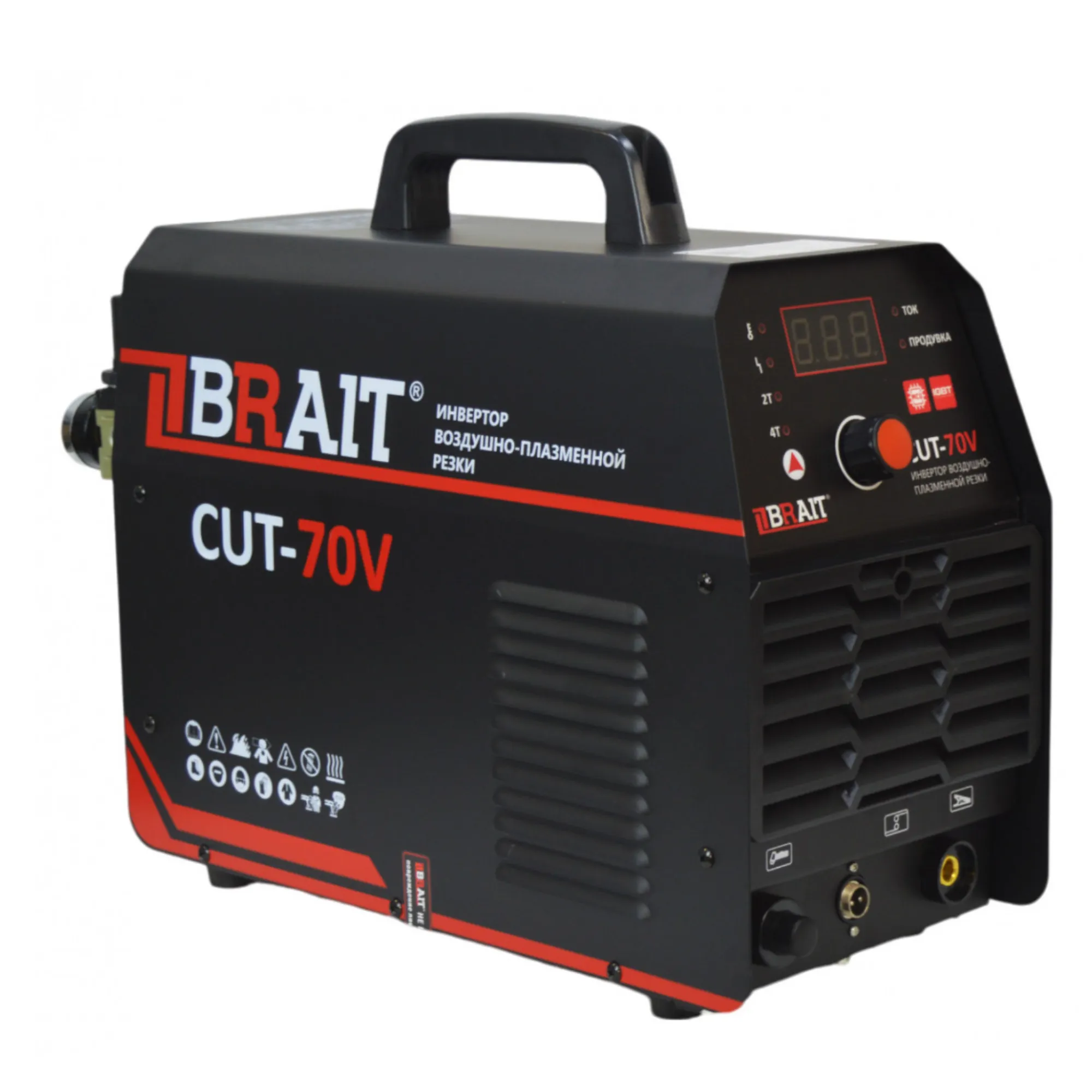

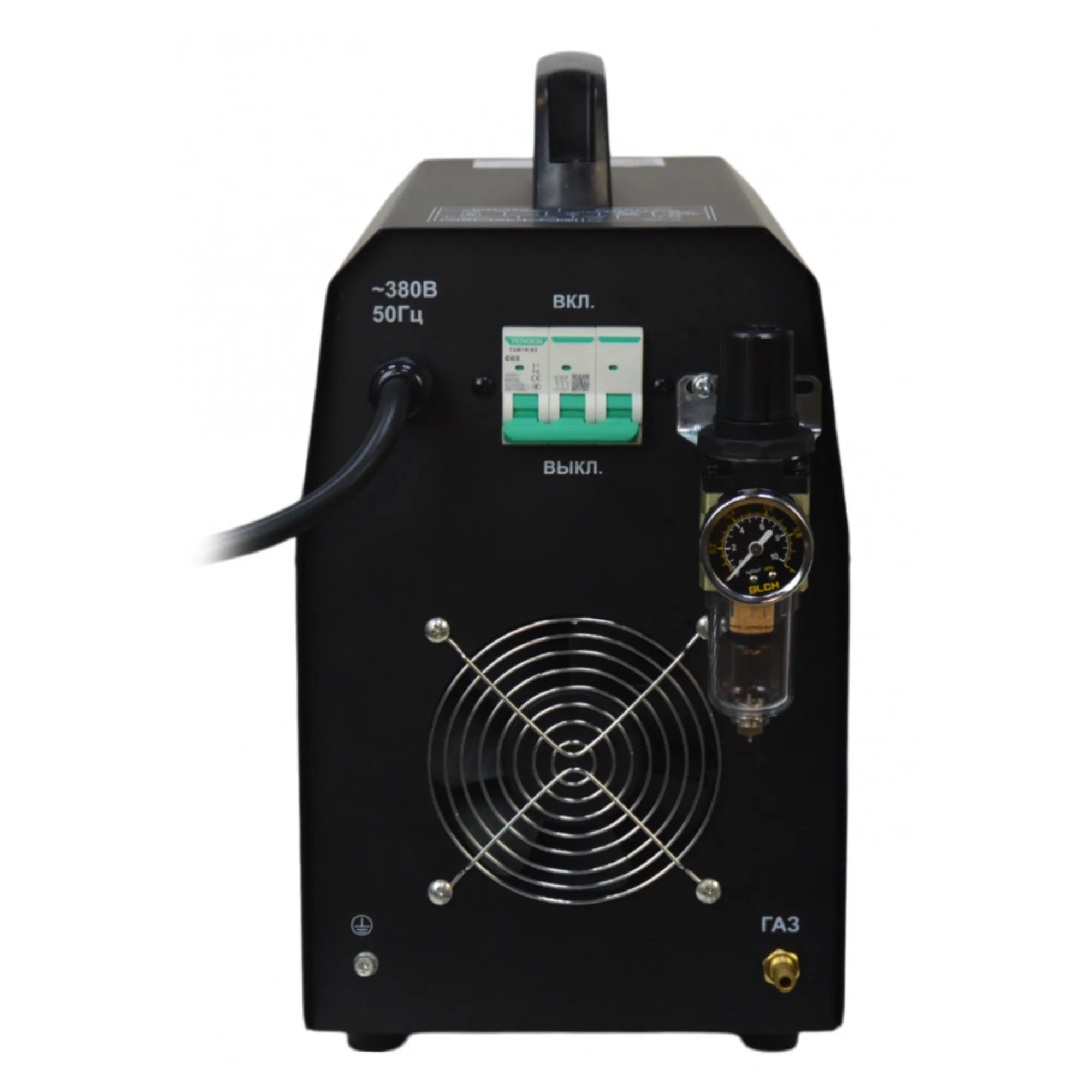

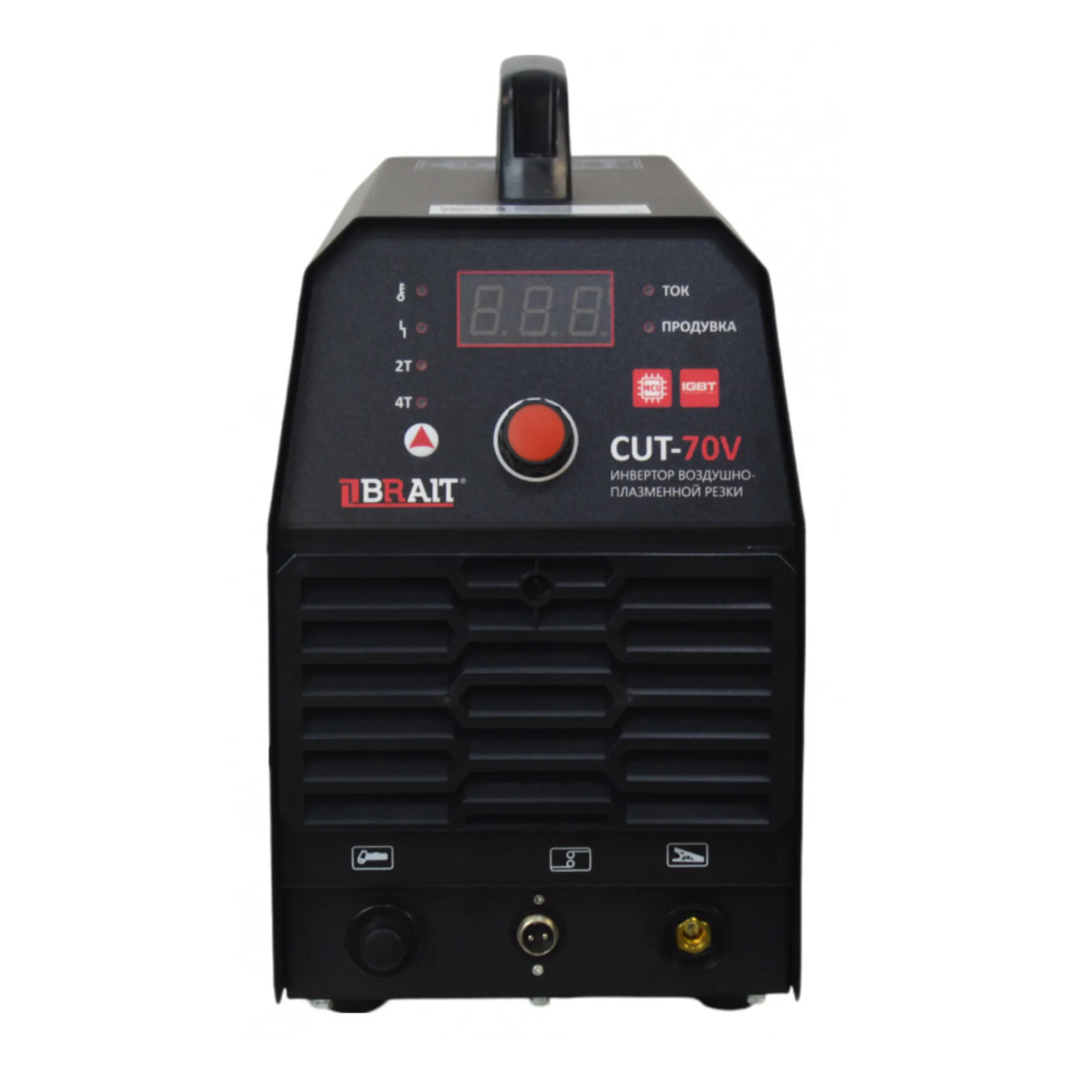

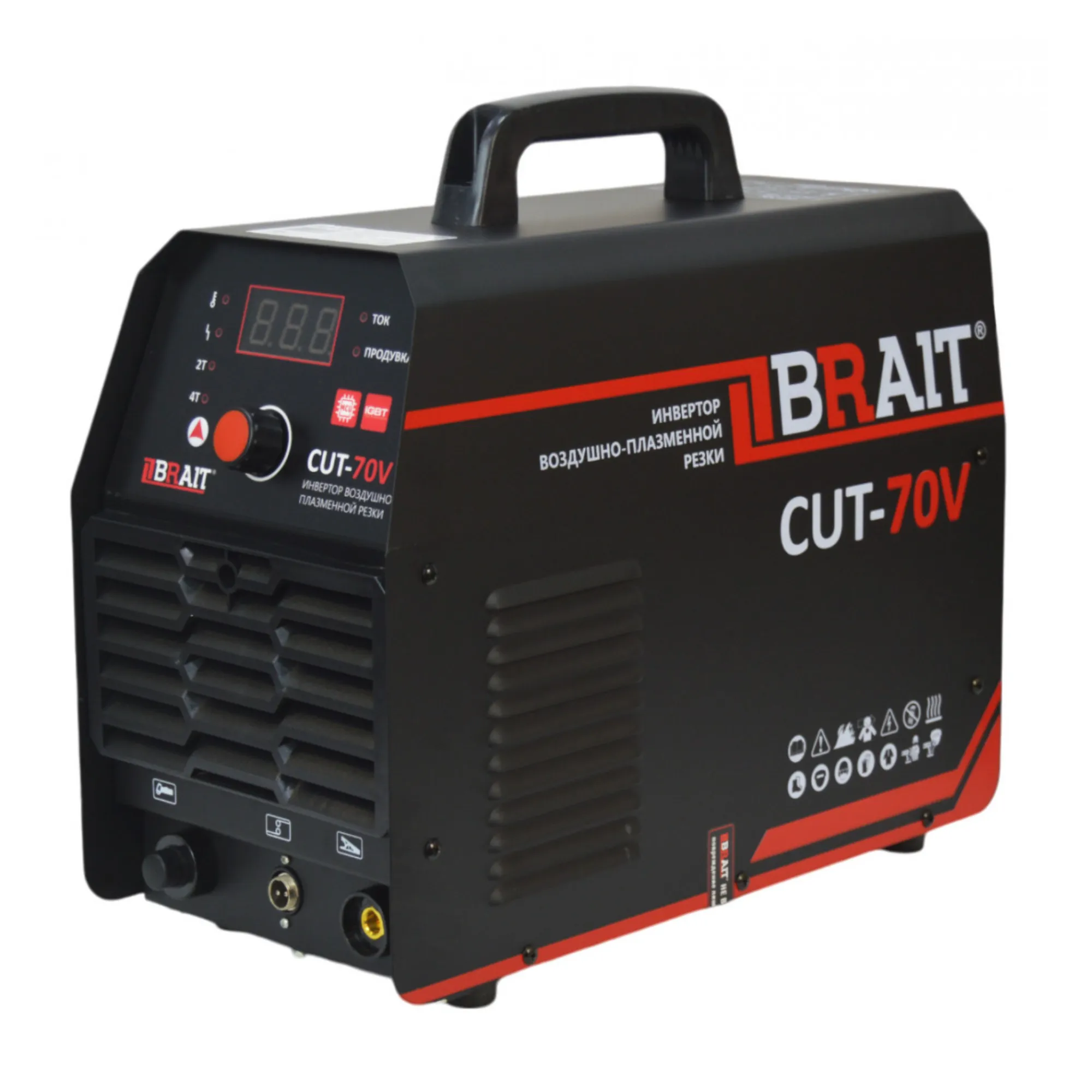

Description Brait CUT-70V plasma cutter, 70 A

Brait CUT-70V is a plasma cutter: max current 70 A, cut up to 22 mm.
Plasma cutting

Cut up to 22 mm, input voltage 342–418 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current70 A
Cut up to22 mm
Input voltage342–418 V
Weight13 kg
Product description

Brait CUT-70V is a plasma cutter (plasma cutting). Max current is 70 A, cut up to 22 mm, input voltage 342–418 V. It weighs 13 kg.

Advantages
  • Cutting current up to 70 A.
  • Cuts steel up to 22 mm.
  • 380 V supply.
  • Overheat protection, fan cooling.
  • 60% duty cycle.
  • 2T/4T modes and gas purge.
Technical specifications
Included in the packagePlasma cutting inverter, plasma torch, earth cable with clamp, moisture separator/regulator, manual
Manufacturer countryChina
PackingBox
Weight kg13
Voltage (Volt)380
Power (W)9500
Welding Type(s)Plasma cutting (CUT)
Maximum electrode diameter mm0
No-load voltage V300
Warranty period. month12
Minimum electrode diameter mm0
Pull Force Lbs0
Air flow (l/min)120
TypePlasma cutter
Power supply typeCorded
Instrument classProfessional
Cable length (cm)220
Rated current A100
MMA power consumption, kVA10.2
Protection classClass I
Power factor0.93
Nominal frequency of alternating current, Hz50
DisplayYes
Overheat protectionYes
Maximum cutting capacity in steel 400 N/mm² (mm)22
Maximum cutting thickness in stainless steel (mm)16
Duty cycle, %60
Minimum welding current (A)20
Maximum welding current (A)70
Minimum input voltage (V)342
Maximum input voltage (V)418
Welding current typeDirect current (DC)
Minimum wire diameter (mm)0
Maximum wire diameter (mm)0
Maximum wire spool weight (kg)0
Gasless welding (flux-cored wire)No
Hot StartNo
Arc ForceNo
Anti-StickNo
VRD (voltage reduction device)No
Ingress protection rating (IP)IP21S
Welding cable length (m)4
Cooling typeAir
Built-in compressorNo
Arc ignition typeNon-contact (HF)
Maximum weldable metal thickness (mm)0
Package contents
Plasma cutting inverter, plasma torch, earth cable with clamp, moisture separator/regulator, manual.
Applications
Heavy-duty cutting of thick metal in steel fabrication, ship repair and industrial workshops.

Main attributes Brait CUT-70V plasma cutter, 70 A

Technical
Anti-Stick No
Arc Force No
Built-in compressor No
Certificate of Conformity number
Certificate/declaration expiration date
Date of registration of the certificate/declaration
Declaration of Conformity number
Display Yes
Document number on the customs status of goods
Duty cycle, % 60
Gasless welding (flux-cored wire) No
Hot Start No
Ingress protection rating (IP) IP21S
Instrument class Professional
Manufacturer country China
Maximum cutting capacity in steel 400 N/mm² (mm) 22
Maximum cutting thickness in stainless steel (mm) 16
Maximum weldable metal thickness (mm) 0
Maximum welding current (A) 70
Maximum wire diameter (mm) 0
Maximum wire spool weight (kg) 0
Minimum welding current (A) 20
Minimum wire diameter (mm) 0
Overheat protection Yes
Power (W) 9500
Power factor 0.93
Protection class Class I
Pull Force Lbs 0
VRD (voltage reduction device) No
Warranty period. month 12
Welding cable length (m) 4
Minimum electrode diameter mm 0
Maximum electrode diameter mm 0
Vacuum pressure
Air flow (l/min) 120
Structure
Arc ignition type Non-contact (HF)
Cooling type Air
Type Plasma cutter
Weight kg 13
Welding current type Direct current (DC)
Welding Type(s) Plasma cutting (CUT)
Nutrition
Maximum input voltage (V) 418
Minimum input voltage (V) 342
MMA power consumption, kVA 10.2
No-load voltage V 300
Nominal frequency of alternating current, Hz 50
Power supply type Corded
Rated current A 100
Voltage (Volt) 380
Size
Cable length (cm) 220
Packing
Packing Box
Set
Included in the package Plasma cutting inverter, plasma torch, earth cable with clamp, moisture separator/regulator, manual
