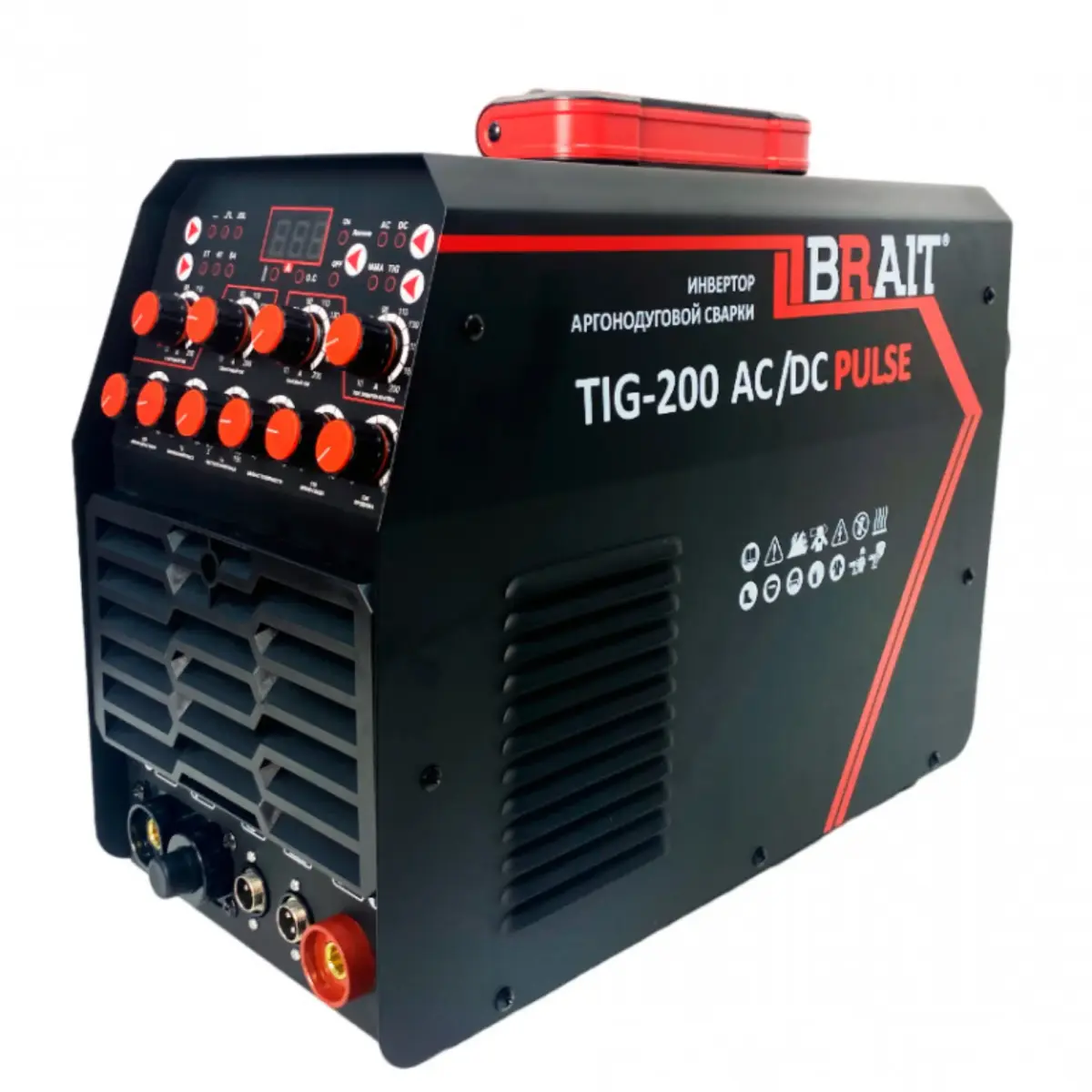

Description Brait TIG-200 AC/DC PULSE TIG/MMA TIG welder, 200 A

Brait TIG-200 AC/DC PULSE TIG/MMA is a TIG welder: max current 200 A, duty cycle 40%.

Welding

Duty cycle 40%, input voltage 196–265 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current200 A

Duty cycle40%

Input voltage196–265 V

Weight12.9 kg

Product description

Brait TIG-200 AC/DC PULSE TIG/MMA is a TIG welder (TIG + MMA). Max current is 200 A, duty cycle 40%, input voltage 196–265 V. It weighs 12.9 kg.

Advantages

TIG AC/DC Pulse and MMA modes.
Welding current 10–200 A.
TIG duty cycle 40% at 200 A (100% at 155 A).
Contactless HF arc ignition.
Polarity balance ±5, pulse frequency 0.5–150 Hz.
Mains 230 V ±15%, single phase.

Technical specifications

Included in the packagePower source (inverter), TIG torch, earth clamp with cable, electrode holder with cable, 2 m gas hose, 2 hose clamps

Manufacturer countryChina

PackingBox

Weight kg12.9

Voltage (Volt)220

Power (W)7500

Welding Type(s)TIG + MMA

Maximum electrode diameter mm5.0

No-load voltage V60

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeTIG welder

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)200

Rated current A200

MMA power consumption, kVA7.5

Protection classClass I

Power factor0.8

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %40

Minimum welding current (A)10

Maximum welding current (A)200

Minimum input voltage (V)196

Maximum input voltage (V)265

Welding current typeAC/DC

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21

Welding cable length (m)4

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)6

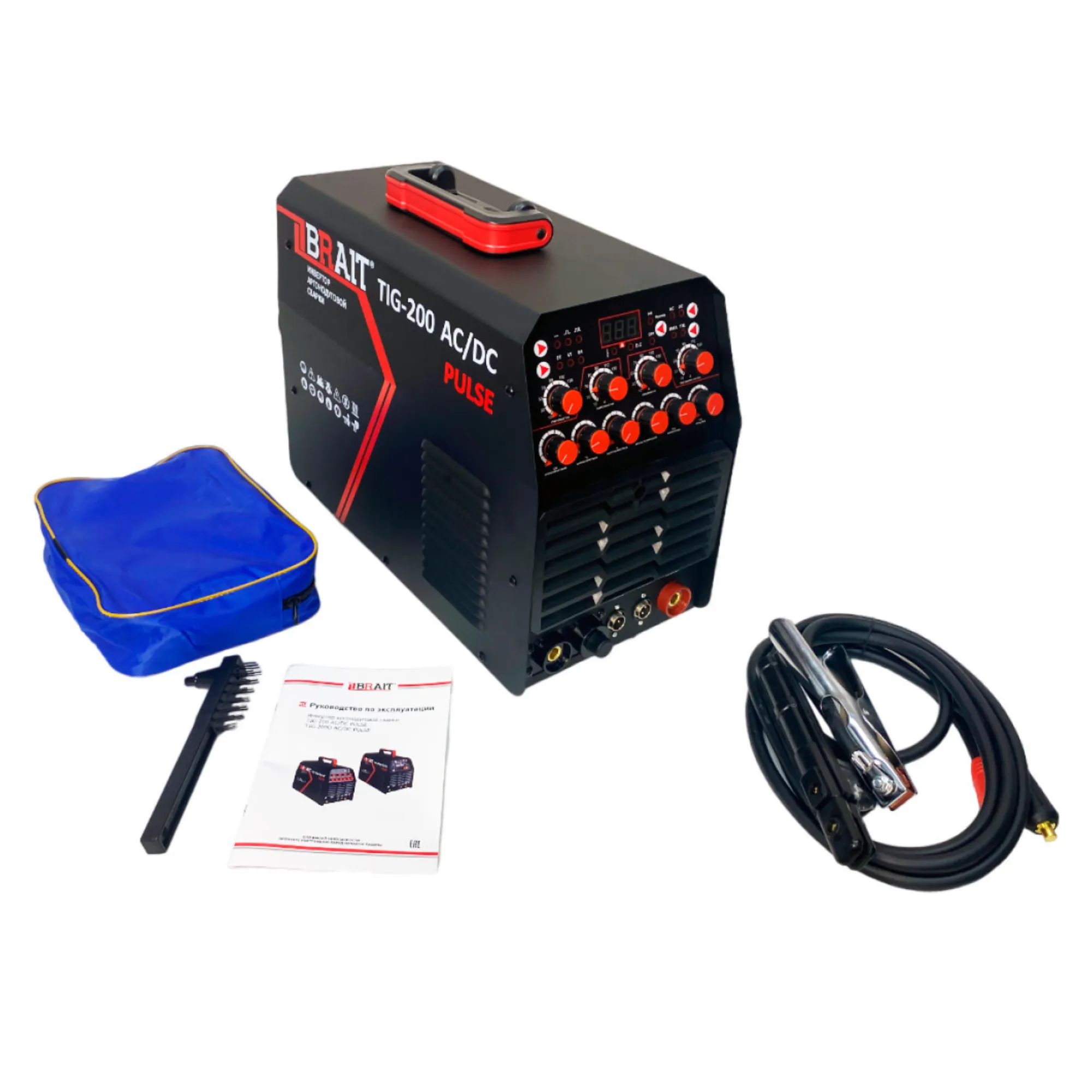

Package contents

Power source (inverter), TIG torch, earth clamp with cable, electrode holder with cable, 2 m gas hose, 2 hose clamps.

Applications

TIG welding of aluminium, stainless and mild steel and copper in production, car service and professional workshops.

Main attributes Brait TIG-200 AC/DC PULSE TIG/MMA TIG welder, 200 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 40

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 6

Maximum welding current (A) 200

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 10

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 7500

Power factor 0.8

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 4

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 5.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type TIG welder

Weight kg 12.9

Welding current type AC/DC

Welding Type(s) TIG + MMA

Nutrition

Maximum input voltage (V) 265

Minimum input voltage (V) 196

MMA power consumption, kVA 7.5

No-load voltage V 60

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 200

Voltage (Volt) 220

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Power source (inverter), TIG torch, earth clamp with cable, electrode holder with cable, 2 m gas hose, 2 hose clamps
