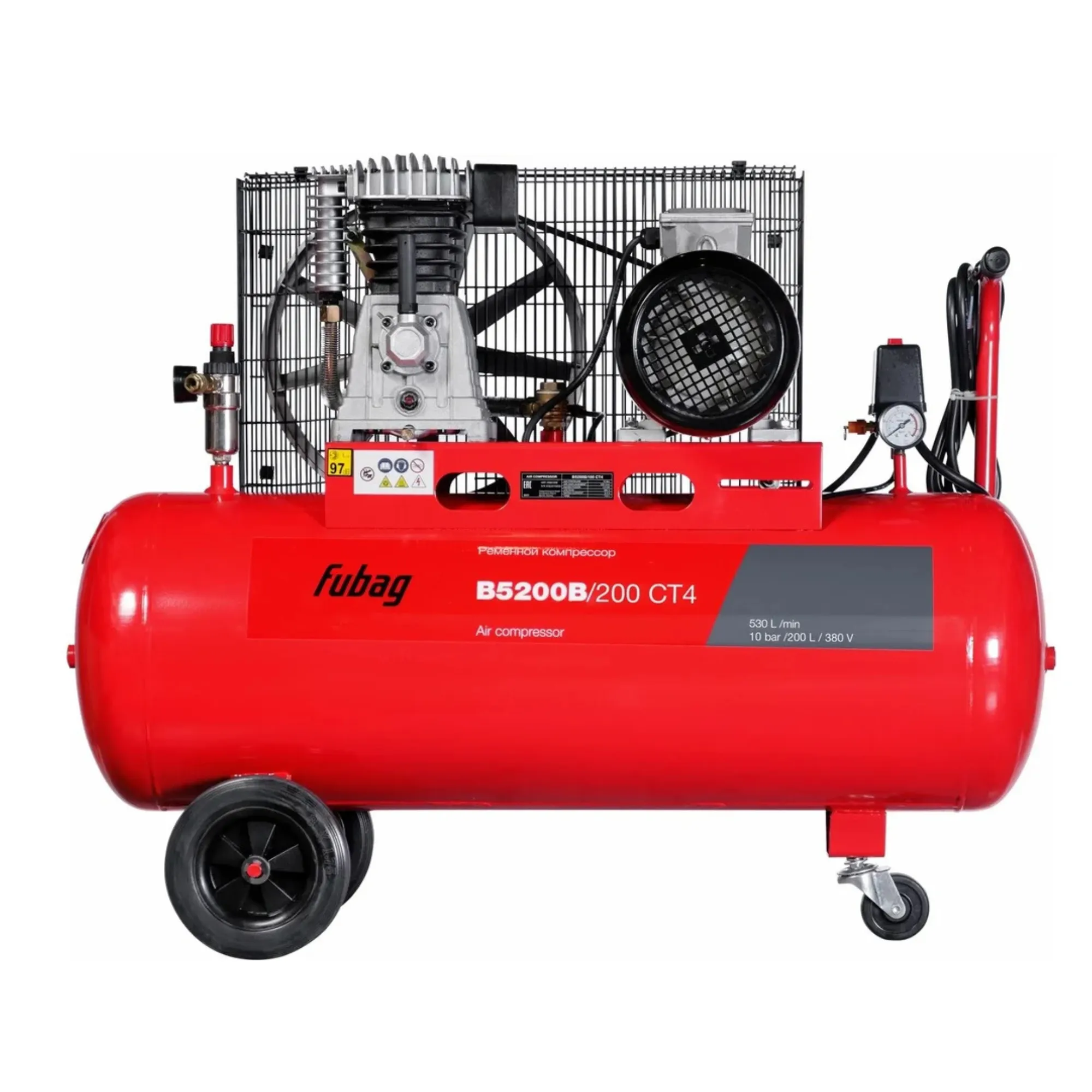

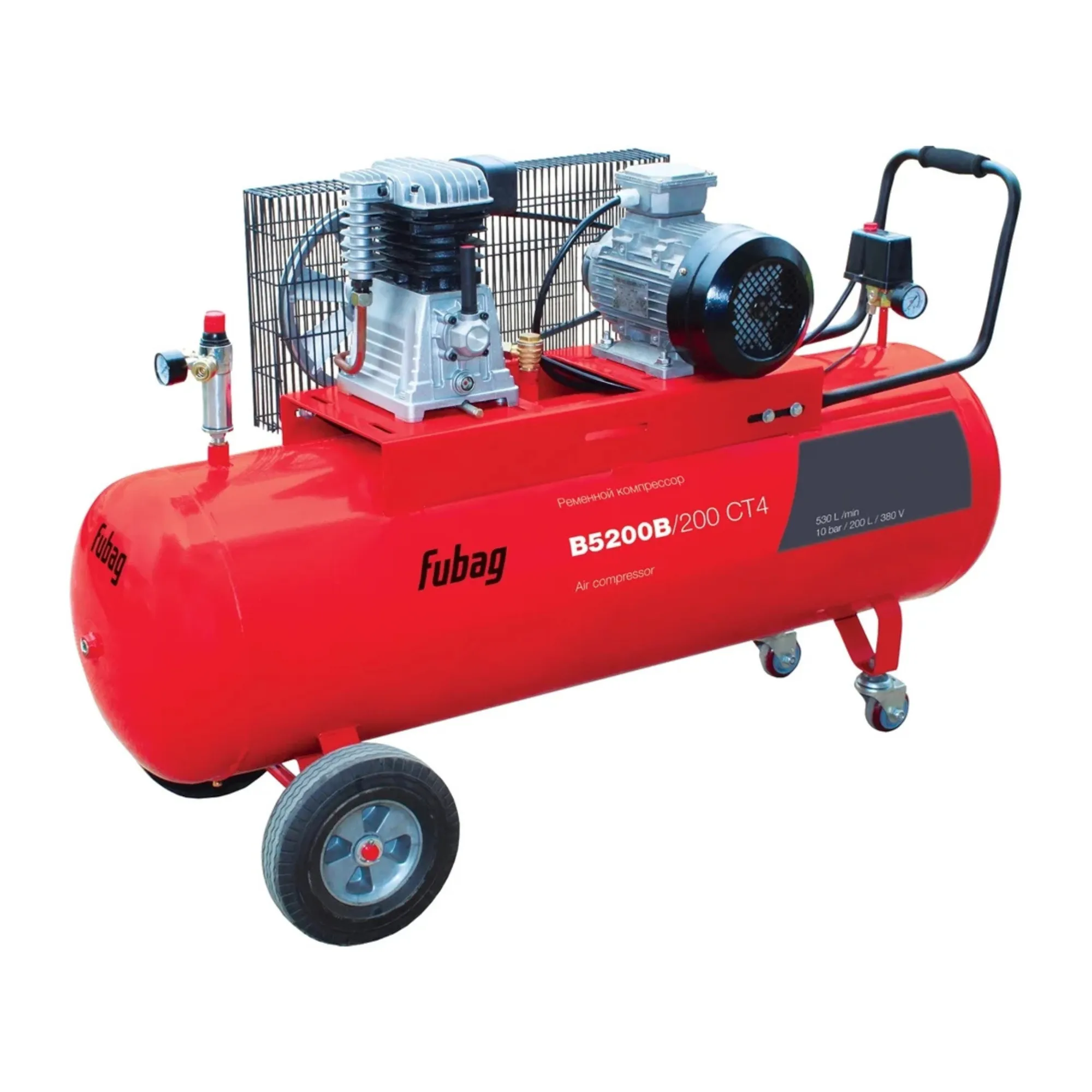

Fubag B5200B/200 piston air compressor: tank 200 l

Name: Fubag B5200B/200 piston air compressor: tank 200 l
Brand: FUBAG
SKU: B5200B-200
Price: 463337 AMD
Availability: InStock

Filter

Free air delivery (l/min)

New

Top

In stock

Model: B5200B/200

Vendor code: B5200B-200

Brand: FUBAG

463,337֏

Price in reward points: 463337

Found it cheaper?

4633 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Fubag B5200B/200 piston air compressor, 3000 W, 200 l

Fubag B5200B/200 is a 3000 W piston air compressor: tank 200 l, air intake 530 l/min.

Air compressor

3000 W, air intake 530 l/min

The compressor powers air tools, spray guns and tyre inflation according to its pressure and air delivery.

Power3000 W

Tank200 l

Air intake530 l/min

Weight113.5 kg

Product description

Fubag B5200B/200 is a mains-powered piston air compressor. Power is 3000 W, tank 200 l, air intake 530 l/min. It weighs 113.5 kg.

Advantages

3000 W input power, 380 V.
Oil-lubricated belt-driven piston pump, 2 cylinders.
200 l receiver.
Intake air flow 530 l/min.
Maximum pressure 10 bar.
Weight 113.5 kg.

Technical specifications

Included in the packageCompressor with receiver, transport wheels, air filter, pressure switch and gauges, manual, oil filler plug

Manufacturer countryGermany

PackingBox

Weight kg113.5

Voltage (Volt)380

Power (W)3000

Maximum number of revolutions per/m1200

Engine typeInduction (asynchronous)

Number of cylinders pcs2

Warranty period. month12

Hose length (m)0

Tank capacity (l)200

TypePiston (reciprocating)

Power supply typeCorded

Max pressure:10

Instrument classProfessional

Cable length (cm)0

Protection classClass I

Noise level: dB(A)85

Nominal frequency of alternating current, Hz50

Overheat protectionYes

Lubrication typeOil-lubricated

Drive typeBelt drive

Intake air capacity (l/min)530

Free air delivery (l/min)398

Number of compressed air outlets (pcs)2

Quick coupler typeEuropean (EURO)

Outlet connection thread1/4"

Pressure regulatorYes

Tank orientationHorizontal

Compression stagesSingle-stage

Built-in air dryerNo

Variable speed driveNo

Transport wheelsYes

Duty cycle, %60

Air tools includedNo

Package contents

Compressor with receiver, transport wheels, air filter, pressure switch and gauges, manual, oil filler plug.

Applications

Compressed-air supply for car services, workshops and production: pneumatic tools, painting and tyre service.

Main attributes Fubag B5200B/200 piston air compressor, 3000 W, 200 l

Technical

Air tools included No

Built-in air dryer No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Document number on the customs status of goods

Drive type Belt drive

Duty cycle, % 60

Engine type Induction (asynchronous)

Instrument class Professional

Lubrication type Oil-lubricated

Manufacturer country Germany

Max pressure: 10

Noise level: dB(A) 85

Overheat protection Yes

Power (W) 3000

Pressure regulator Yes

Protection class Class I

Transport wheels Yes

Variable speed drive No

Warranty period. month 12

Maximum number of revolutions per/m 1200

Vacuum pressure

Free air delivery (l/min) 398

Intake air capacity (l/min) 530

Structure

Compression stages Single-stage

Hose length (m) 0

Number of cylinders pcs 2

Tank capacity (l) 200

Tank orientation Horizontal

Type Piston (reciprocating)

Weight kg 113.5

Nutrition

Nominal frequency of alternating current, Hz 50

Outlet connection thread 1/4"

Power supply type Corded

Quick coupler type European (EURO)

Voltage (Volt) 380

Size

Cable length (cm) 0

Packing

Packing Box

Set

Included in the package Compressor with receiver, transport wheels, air filter, pressure switch and gauges, manual, oil filler plug

Number of compressed air outlets (pcs) 2

Reviews about Fubag B5200B/200 piston air compressor, 3000 W, 200 l

There are no reviews for this product.

Questions and Answers (FAQ) Fubag B5200B/200 piston air compressor, 3000 W, 200 l

There are no questions about this product.

How to use Fubag B5200B/200 piston air compressor, 3000 W, 200 l

Soon...

Fubag B5200B/200 piston air compressor: tank 200 l

Model: B5200B/200

In stock

463,337֏

Tags: Fubag, piston air compressor, air compressor, pneumatic tools, garage
