Fubag DCF-1300/500 piston air compressor: tank 500 l

Name: Fubag DCF-1300/500 piston air compressor: tank 500 l
Brand: FUBAG
SKU: DCF-1300-500
Price: 1950016 AMD
Availability: InStock

Filter

Free air delivery (l/min)

Fubag DCF-1300/500 piston air compressor

New

Top

In stock

Model: DCF-1300/500

Vendor code: DCF-1300-500

Brand: FUBAG

1,950,016֏

Price in reward points: 1950016

Found it cheaper?

19500 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Fubag DCF-1300/500 piston air compressor, 7500 W, 500 l

Fubag DCF-1300/500 is a 7500 W piston air compressor: tank 500 l, air intake 1300 l/min.

Air compressor

7500 W, air intake 1300 l/min

The compressor powers air tools, spray guns and tyre inflation according to its pressure and air delivery.

Power7500 W

Tank500 l

Air intake1300 l/min

Weight305 kg

Product description

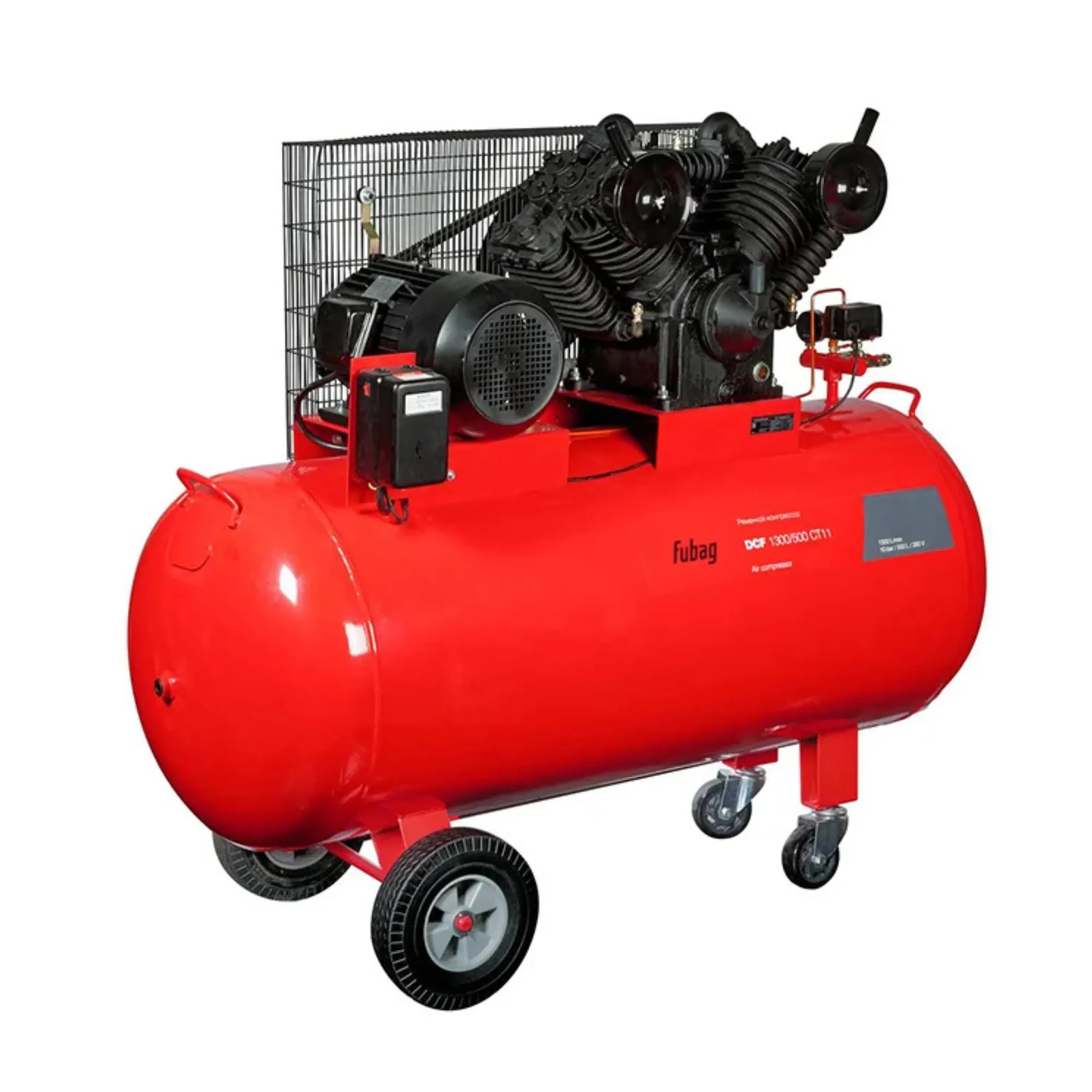

Fubag DCF-1300/500 is a mains-powered piston air compressor. Power is 7500 W, tank 500 l, air intake 1300 l/min. It weighs 305 kg.

Advantages

7500 W input power, 380 V.

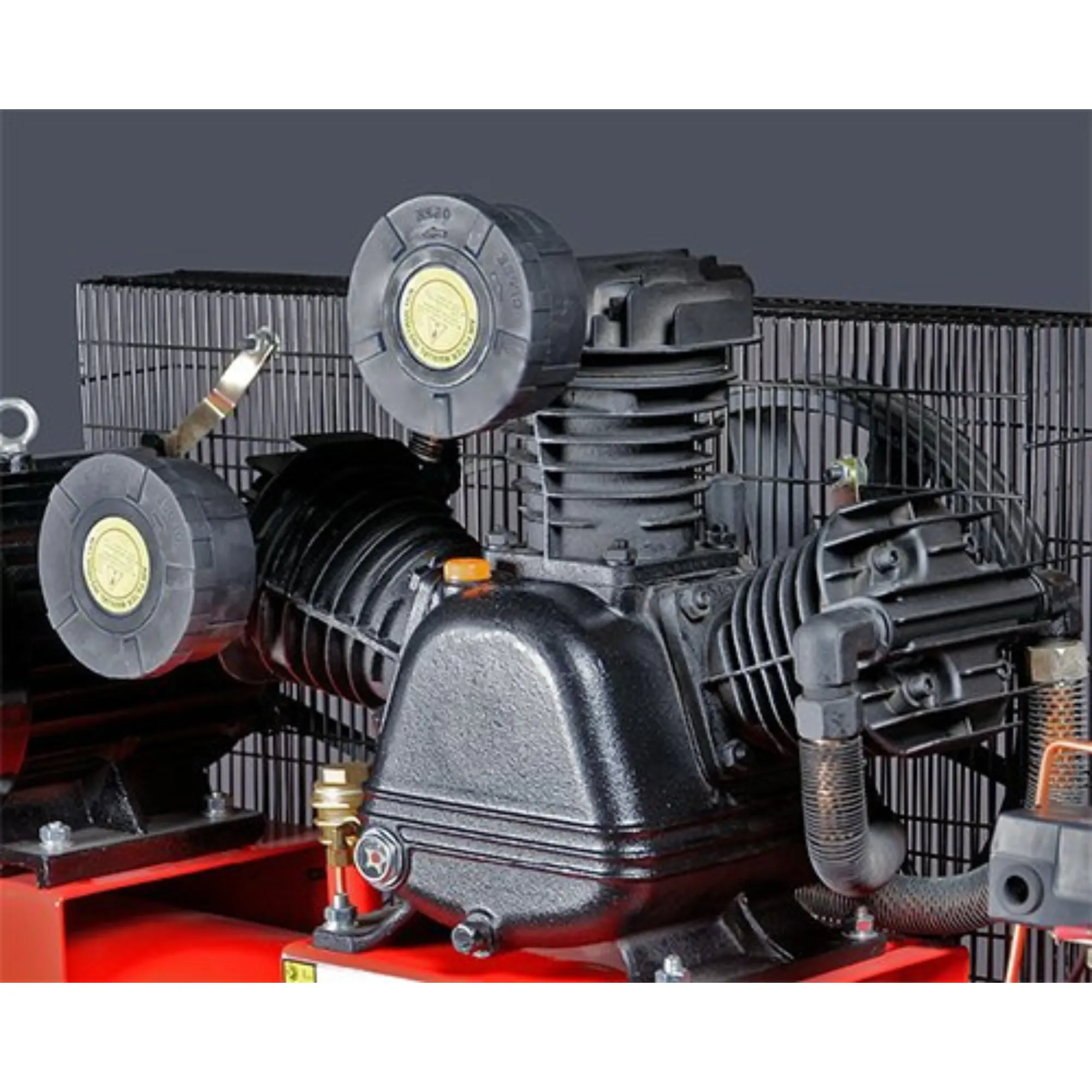

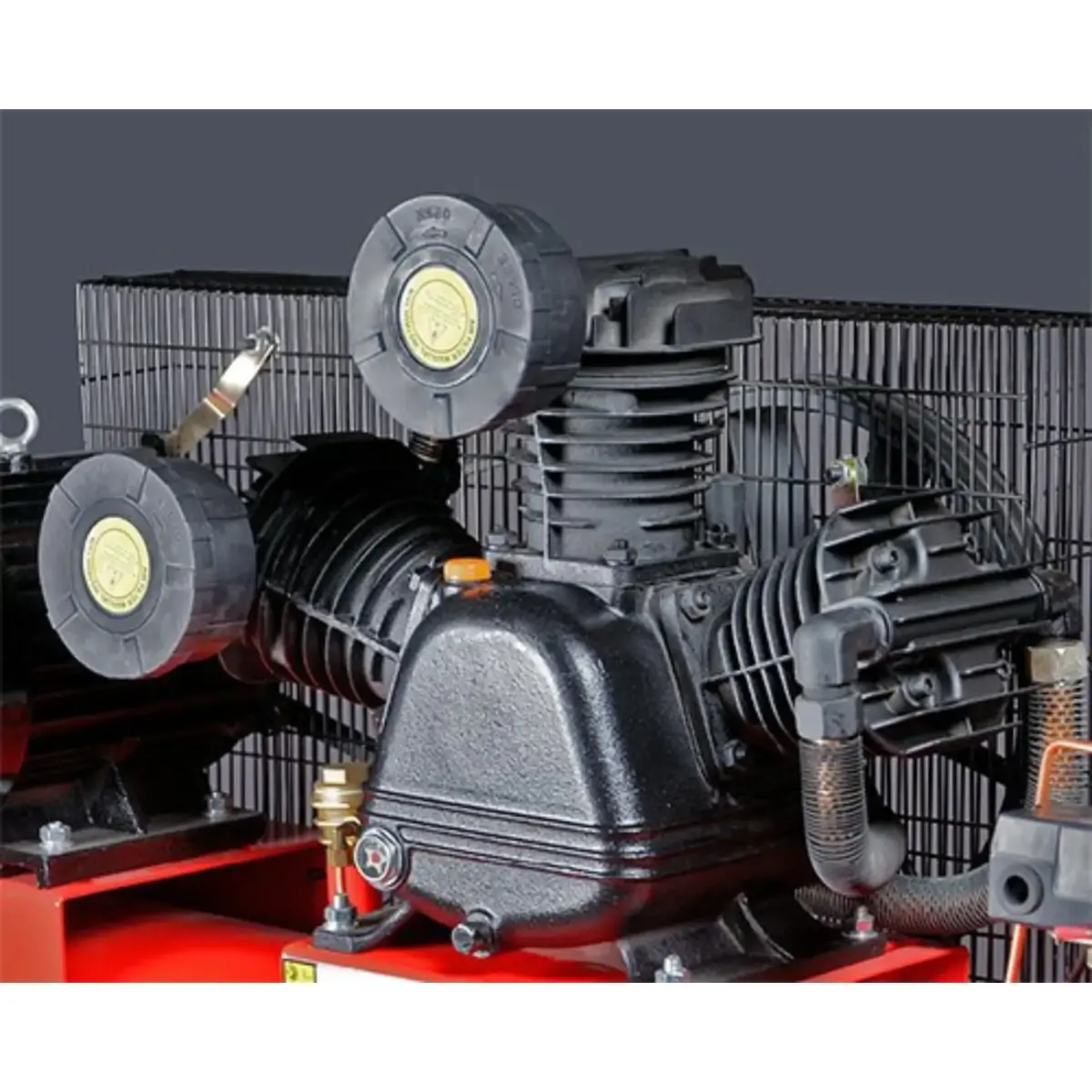

Two-stage belt-driven piston pump, 4 cylinders.
500 l receiver.
Intake air flow 1300 l/min.
Maximum pressure 10 bar.
Weight 305 kg.

Technical specifications

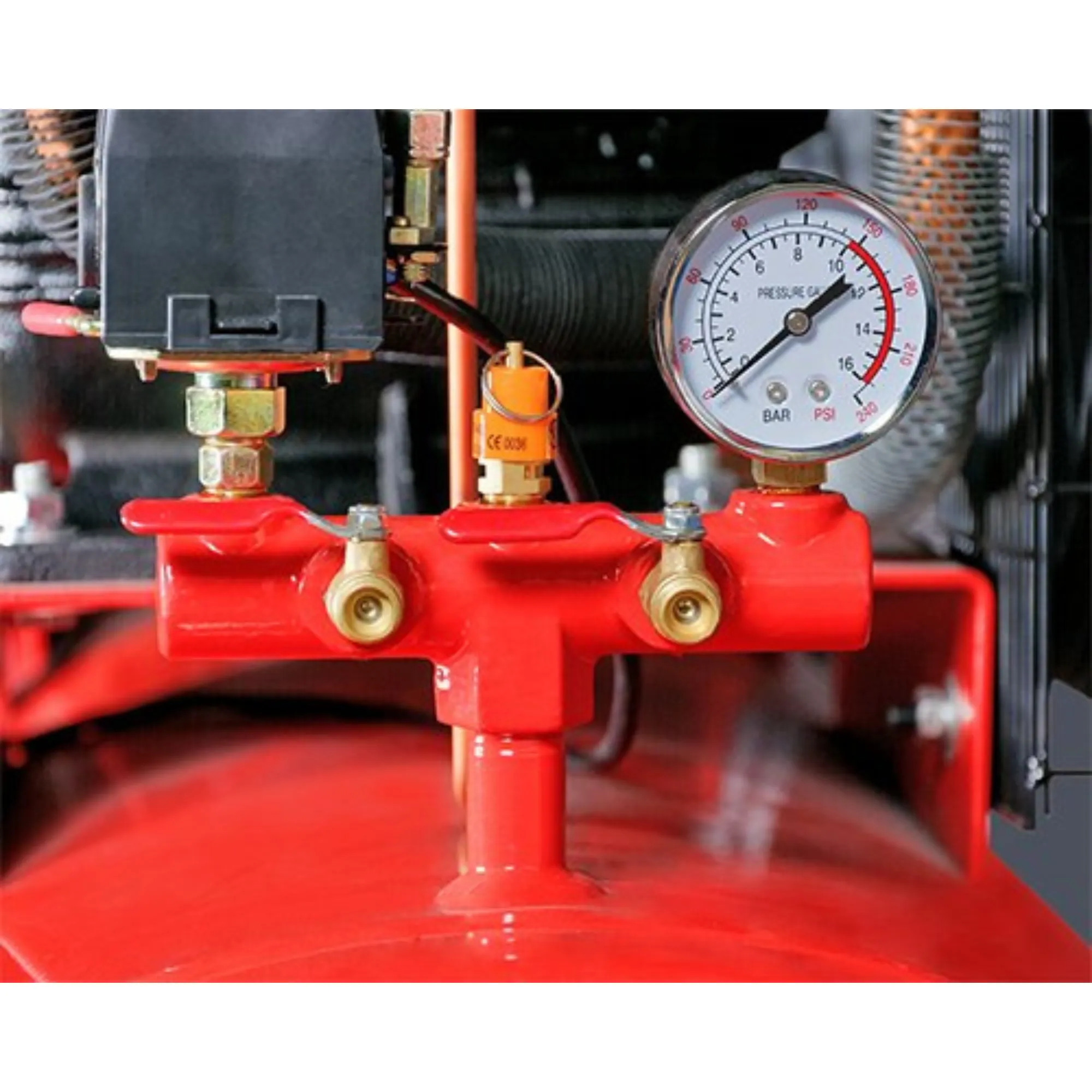

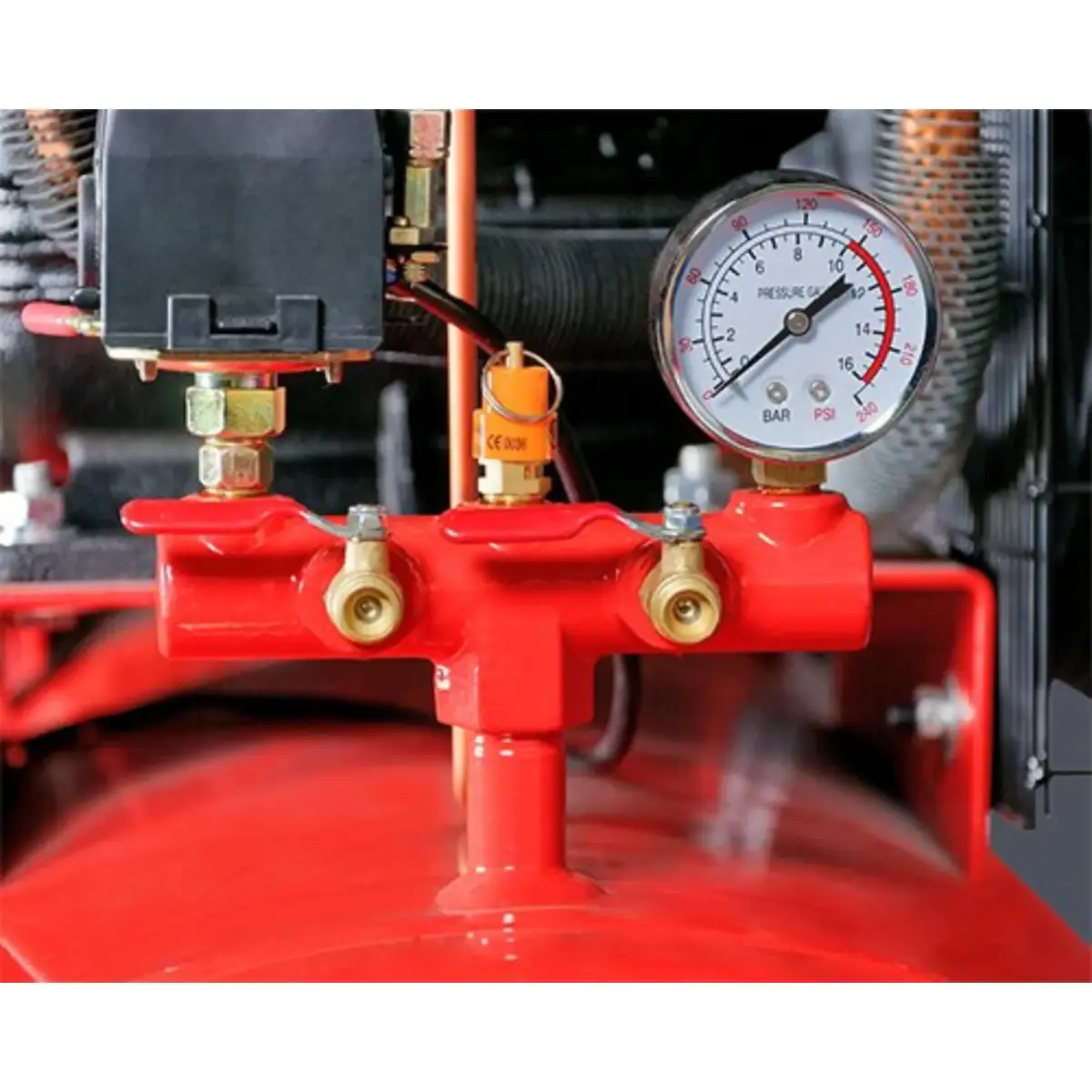

Included in the packageCompressor with receiver, transport wheels, air filter, pressure switch and gauges, manual, oil filler plug

Manufacturer countryGermany

PackingBox

Weight kg305

Voltage (Volt)380

Power (W)7500

Maximum number of revolutions per/m680

Engine typeInduction (asynchronous)

Number of cylinders pcs4

Warranty period. month12

Hose length (m)0

Tank capacity (l)500

TypePiston (reciprocating)

Power supply typeCorded

Max pressure:10

Instrument classIndustrial

Cable length (cm)0

Protection classClass I

Noise level: dB(A)98

Nominal frequency of alternating current, Hz50

Overheat protectionYes

Lubrication typeOil-lubricated

Drive typeBelt drive

Intake air capacity (l/min)1300

Free air delivery (l/min)1040

Number of compressed air outlets (pcs)2

Quick coupler typeEuropean (EURO)

Outlet connection thread1/2"

Pressure regulatorYes

Tank orientationHorizontal

Compression stagesTwo-stage

Built-in air dryerNo

Variable speed driveNo

Transport wheelsYes

Duty cycle, %70

Air tools includedNo

Package contents

Compressor with receiver, transport wheels, air filter, pressure switch and gauges, manual, oil filler plug.

Applications

Compressed-air supply for car services, workshops and production: pneumatic tools, painting and tyre service.

Main attributes Fubag DCF-1300/500 piston air compressor, 7500 W, 500 l

Technical

Air tools included No

Built-in air dryer No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Document number on the customs status of goods

Drive type Belt drive

Duty cycle, % 70

Engine type Induction (asynchronous)

Instrument class Industrial

Lubrication type Oil-lubricated

Manufacturer country Germany

Max pressure: 10

Noise level: dB(A) 98

Overheat protection Yes

Power (W) 7500

Pressure regulator Yes

Protection class Class I

Transport wheels Yes

Variable speed drive No

Warranty period. month 12

Maximum number of revolutions per/m 680

Vacuum pressure

Free air delivery (l/min) 1040

Intake air capacity (l/min) 1300

Structure

Compression stages Two-stage

Hose length (m) 0

Number of cylinders pcs 4

Tank capacity (l) 500

Tank orientation Horizontal

Type Piston (reciprocating)

Weight kg 305

Nutrition

Nominal frequency of alternating current, Hz 50

Outlet connection thread 1/2"

Power supply type Corded

Quick coupler type European (EURO)

Voltage (Volt) 380

Size

Cable length (cm) 0

Packing

Packing Box

Set

Included in the package Compressor with receiver, transport wheels, air filter, pressure switch and gauges, manual, oil filler plug

Number of compressed air outlets (pcs) 2

Reviews about Fubag DCF-1300/500 piston air compressor, 7500 W, 500 l

There are no reviews for this product.

Questions and Answers (FAQ) Fubag DCF-1300/500 piston air compressor, 7500 W, 500 l

There are no questions about this product.

How to use Fubag DCF-1300/500 piston air compressor, 7500 W, 500 l

Soon...

Fubag DCF-1300/500 piston air compressor: tank 500 l

Model: DCF-1300/500

In stock

1,950,016֏

Tags: Fubag, piston air compressor, air compressor, pneumatic tools, garage
