Fubag IQ 180 MMA welding inverter: max current 180 A

Name: Fubag IQ 180 MMA welding inverter: max current 180 A
Brand: FUBAG
SKU: IQ-180
Price: 83334 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: IQ 180

Vendor code: IQ-180

Brand: FUBAG

83,334֏

Price in reward points: 83334

Found it cheaper?

833 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

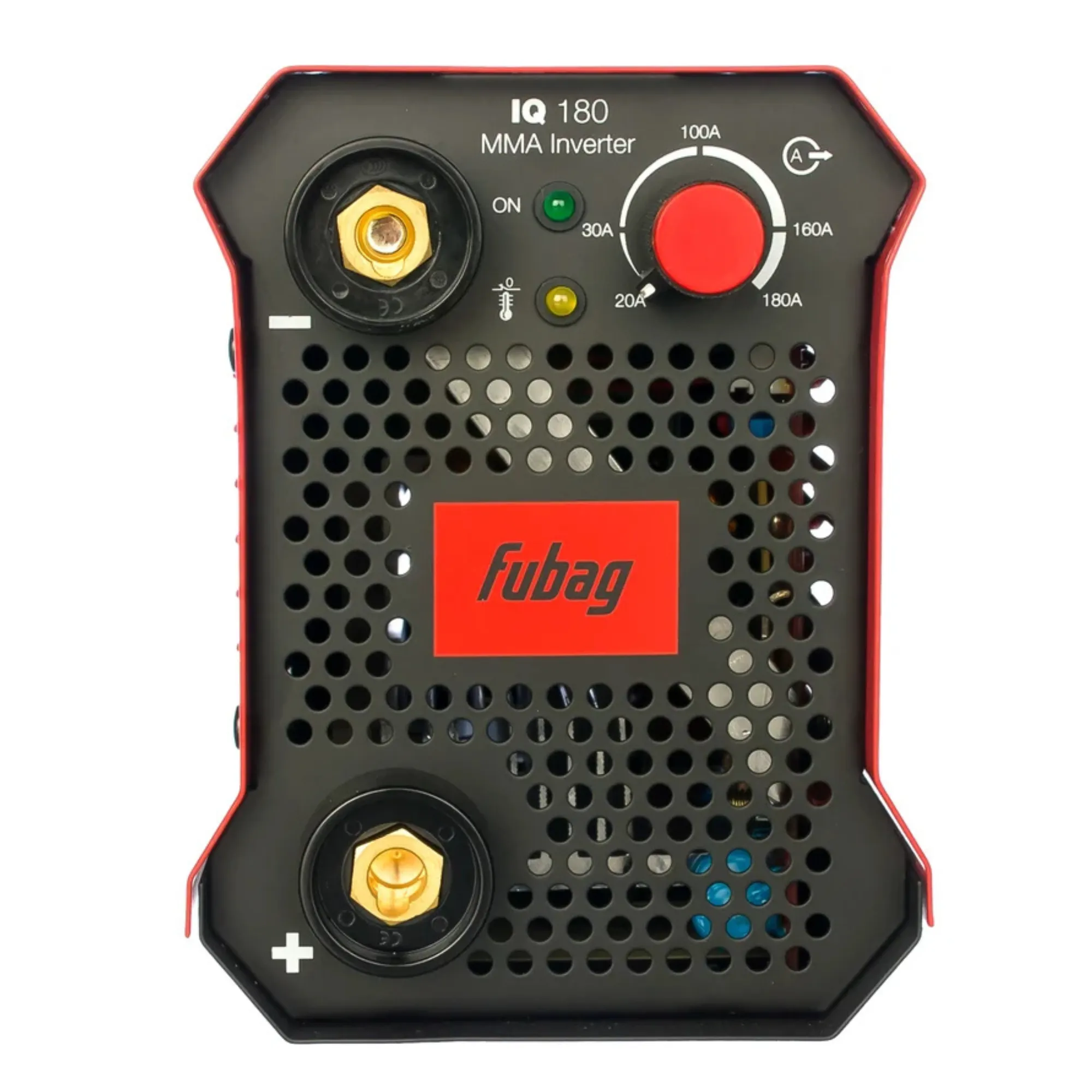

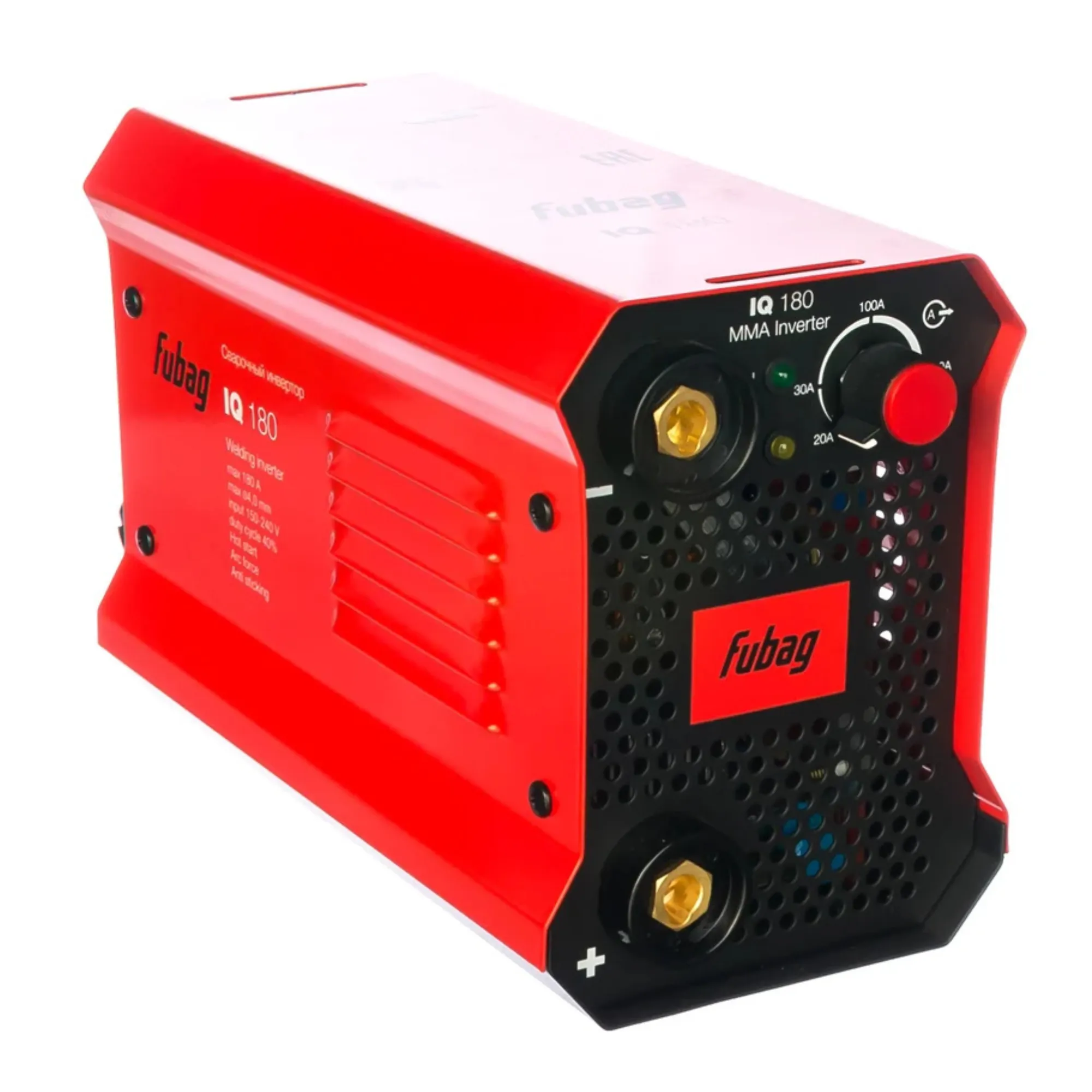

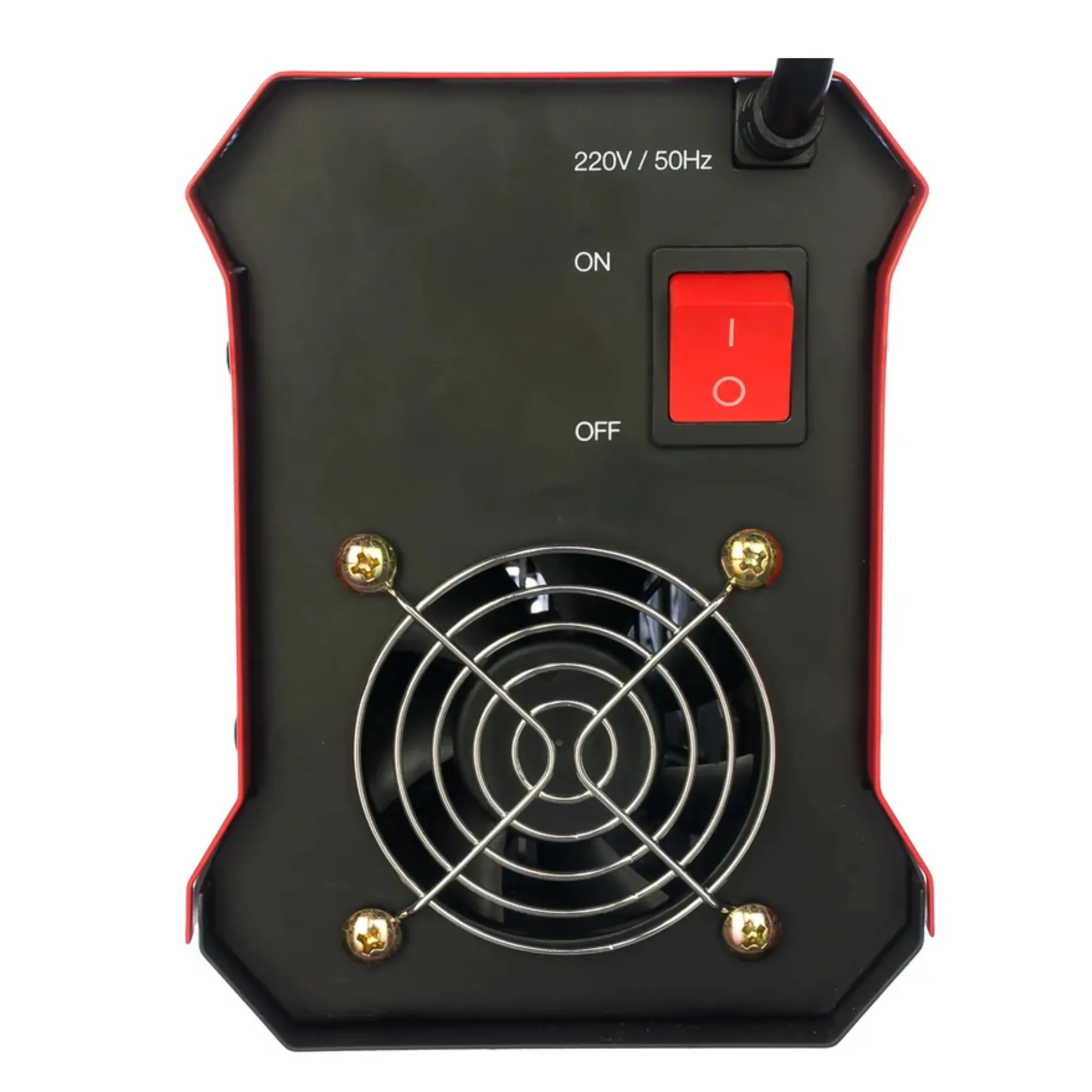

Description Fubag IQ 180 MMA welding inverter, 180 A

Fubag IQ 180 is a MMA welding inverter: max current 180 A, duty cycle 40%.

Welding

Duty cycle 40%, input voltage 150–240 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current180 A

Duty cycle40%

Input voltage150–240 V

Weight2.7 kg

Product description

Fubag IQ 180 is a MMA welding inverter (MMA). Max current is 180 A, duty cycle 40%, input voltage 150–240 V. It weighs 2.7 kg.

Advantages

Welding current 20–180 A.
Electrodes 1.6–4.0 mm.
Hot Start, Arc Force and Anti-Stick functions.
Works on low mains voltage (150–240 V).
IGBT technology, overheat protection.
Compact and lightweight housing.

Technical specifications

Included in the packageWelding inverter, 1.8 m electrode holder cable, 1.2 m earth cable with clamp, manual

Manufacturer countryGermany

PackingBox

Weight kg2.7

Voltage (Volt)230

Power (W)6600

Welding Type(s)MMA (stick)

Maximum electrode diameter mm4.0

No-load voltage V62

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeInverter stick welder (MMA)

Power supply typeCorded

Instrument classDIY

Cable length (cm)150

Rated current A200

MMA power consumption, kVA6

Protection classClass I

Power factor0.65

Nominal frequency of alternating current, Hz50

DisplayNo

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %40

Minimum welding current (A)20

Maximum welding current (A)180

Minimum input voltage (V)150

Maximum input voltage (V)240

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21S

Welding cable length (m)1.8

Cooling typeAir

Built-in compressorNo

Arc ignition typeContact (scratch start)

Maximum weldable metal thickness (mm)8

Package contents

Welding inverter, 1.8 m electrode holder cable, 1.2 m earth cable with clamp, manual.

Applications

Welding steel structures, pipes, gates and fences in a home workshop, at the cottage and on small construction sites.

Main attributes Fubag IQ 180 MMA welding inverter, 180 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display No

Document number on the customs status of goods

Duty cycle, % 40

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21S

Instrument class DIY

Manufacturer country Germany

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 8

Maximum welding current (A) 180

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 20

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 6600

Power factor 0.65

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 1.8

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 4.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Contact (scratch start)

Cooling type Air

Type Inverter stick welder (MMA)

Weight kg 2.7

Welding current type Direct current (DC)

Welding Type(s) MMA (stick)

Nutrition

Maximum input voltage (V) 240

Minimum input voltage (V) 150

MMA power consumption, kVA 6

No-load voltage V 62

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 200

Voltage (Volt) 230

Size

Cable length (cm) 150

Packing

Packing Box

Set

Included in the package Welding inverter, 1.8 m electrode holder cable, 1.2 m earth cable with clamp, manual

Reviews about Fubag IQ 180 MMA welding inverter, 180 A

There are no reviews for this product.

Questions and Answers (FAQ) Fubag IQ 180 MMA welding inverter, 180 A

There are no questions about this product.

How to use Fubag IQ 180 MMA welding inverter, 180 A

Soon...
