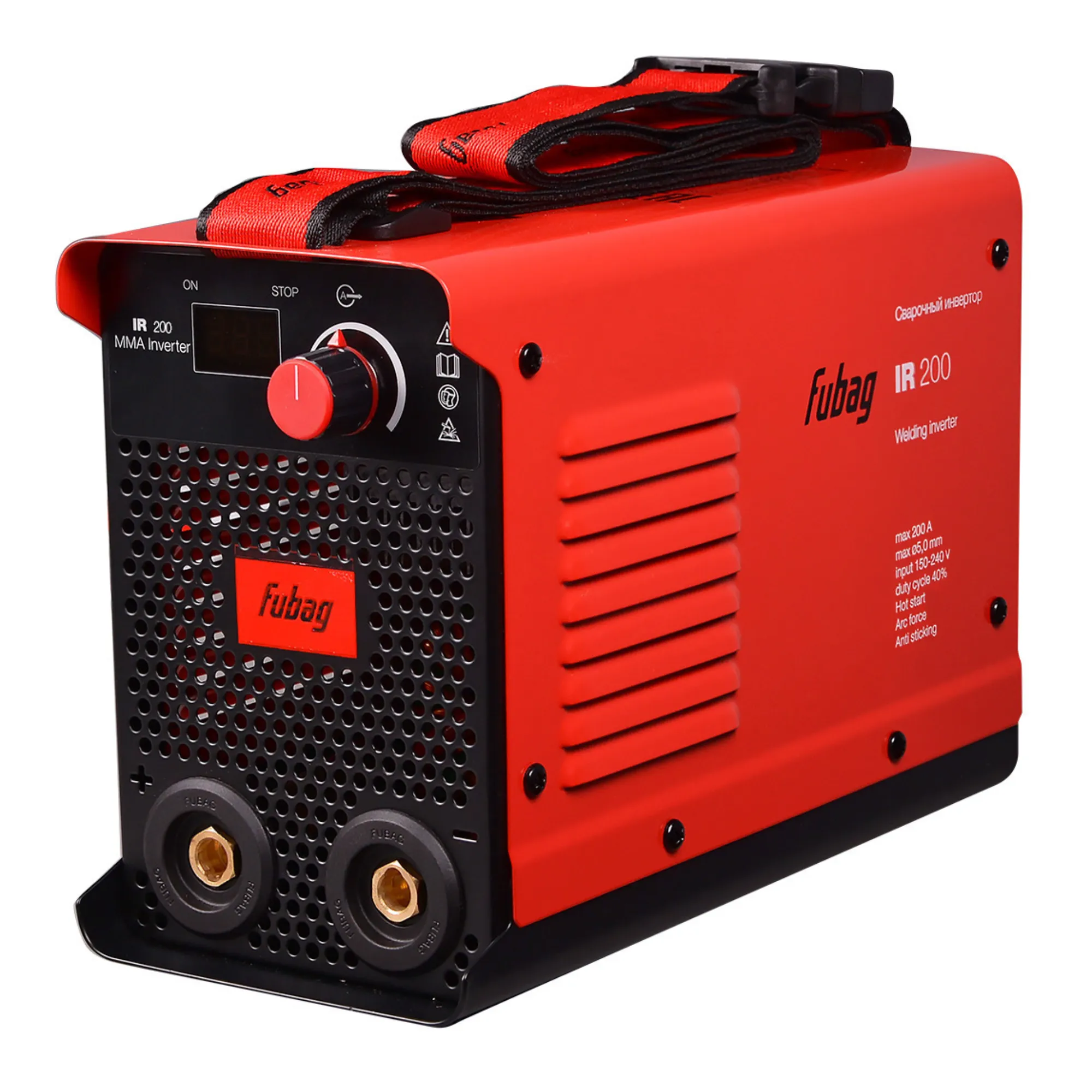

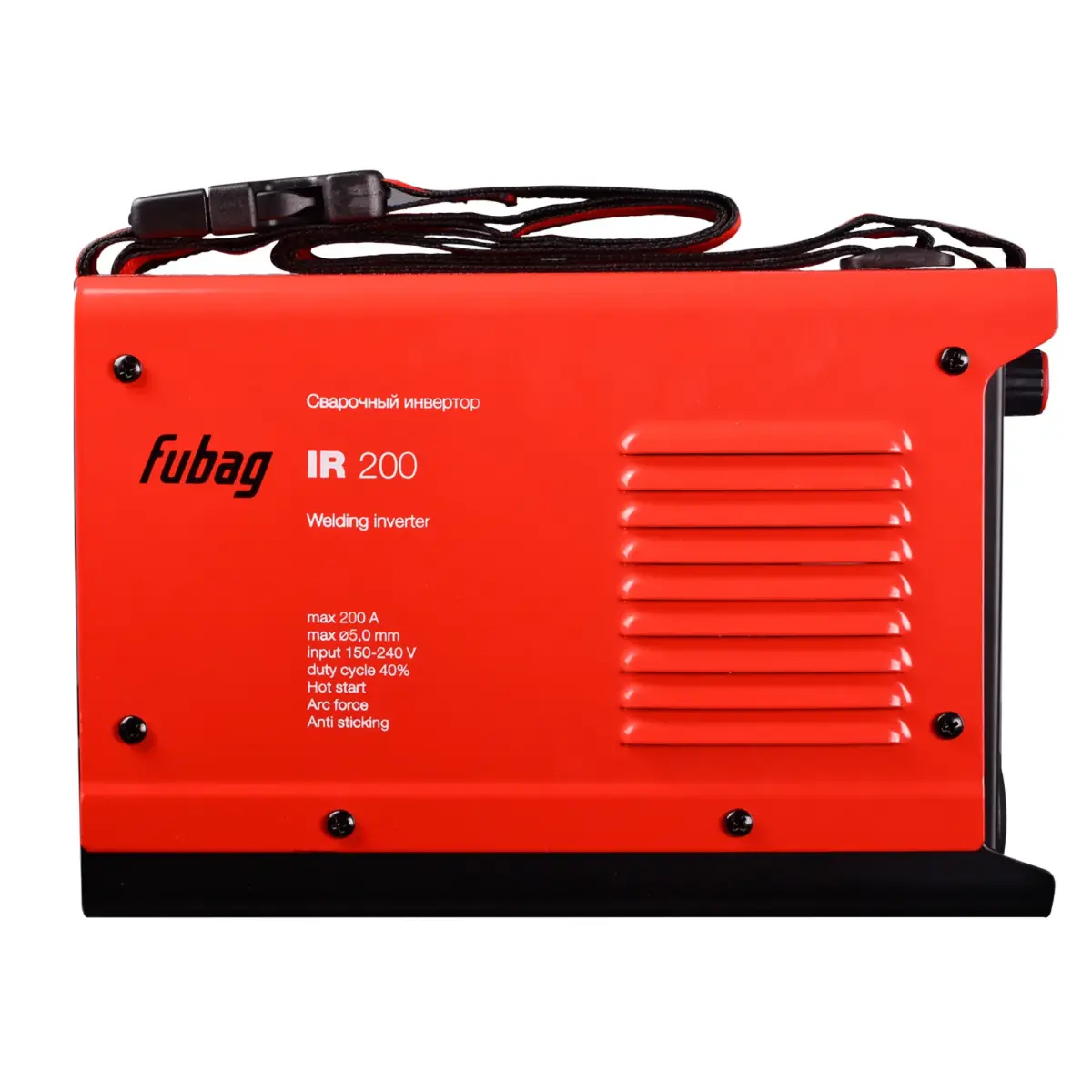

Fubag IR 200 MMA welding inverter: max current 200 A

Name: Fubag IR 200 MMA welding inverter: max current 200 A
Brand: FUBAG
SKU: IR-200
Price: 101112 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: IR 200

Vendor code: IR-200

Brand: FUBAG

101,112֏

Price in reward points: 101112

Found it cheaper?

1011 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Fubag IR 200 MMA welding inverter, 200 A

Fubag IR 200 is a MMA welding inverter: max current 200 A, duty cycle 40%.

Welding

Duty cycle 40%, input voltage 140–240 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current200 A

Duty cycle40%

Input voltage140–240 V

Weight3.4 kg

Product description

Fubag IR 200 is a MMA welding inverter (MMA). Max current is 200 A, duty cycle 40%, input voltage 140–240 V. It weighs 3.4 kg.

Advantages

Welding current 10–200 A.
Electrodes 1.6–5.0 mm.
Hot Start, Arc Force and Anti-Stick functions.
Works on low mains voltage (140–240 V).
IGBT technology, overheat protection.
Compact and lightweight housing.

Technical specifications

Included in the packageWelding inverter, 1.8 m electrode holder cable, 1.2 m earth cable with clamp, manual

Manufacturer countryGermany

PackingBox

Weight kg3.4

Voltage (Volt)230

Power (W)8100

Welding Type(s)MMA (stick)

Maximum electrode diameter mm5.0

No-load voltage V74

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeInverter stick welder (MMA)

Power supply typeCorded

Instrument classDIY

Cable length (cm)150

Rated current A200

MMA power consumption, kVA7.3

Protection classClass I

Power factor0.62

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %40

Minimum welding current (A)10

Maximum welding current (A)200

Minimum input voltage (V)140

Maximum input voltage (V)240

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21S

Welding cable length (m)1.8

Cooling typeAir

Built-in compressorNo

Arc ignition typeContact (scratch start)

Maximum weldable metal thickness (mm)10

Package contents

Welding inverter, 1.8 m electrode holder cable, 1.2 m earth cable with clamp, manual.

Applications

Welding steel structures, pipes, gates and fences in a home workshop, at the cottage and on small construction sites.

Main attributes Fubag IR 200 MMA welding inverter, 200 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 40

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21S

Instrument class DIY

Manufacturer country Germany

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 10

Maximum welding current (A) 200

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 10

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 8100

Power factor 0.62

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 1.8

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 5.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Contact (scratch start)

Cooling type Air

Type Inverter stick welder (MMA)

Weight kg 3.4

Welding current type Direct current (DC)

Welding Type(s) MMA (stick)

Nutrition

Maximum input voltage (V) 240

Minimum input voltage (V) 140

MMA power consumption, kVA 7.3

No-load voltage V 74

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 200

Voltage (Volt) 230

Size

Cable length (cm) 150

Packing

Packing Box

Set

Included in the package Welding inverter, 1.8 m electrode holder cable, 1.2 m earth cable with clamp, manual

Reviews about Fubag IR 200 MMA welding inverter, 200 A

There are no reviews for this product.

Questions and Answers (FAQ) Fubag IR 200 MMA welding inverter, 200 A

There are no questions about this product.

How to use Fubag IR 200 MMA welding inverter, 200 A

Soon...
