FUBAG BS 9000 DA ES 8.8 kW gasoline generator with AVR, 400/230 V

Name: FUBAG BS 9000 DA ES 8.8 kW gasoline generator with AVR, 400/230 V
Brand: FUBAG
SKU: BS-9000-DA-ES
Price: 781560 AMD
Availability: InStock

Filter

Power (Watts)

Rated power (W)

FUBAG BS 9000 DA ES 8.8 kW gasoline generator

Top

In stock

Model: BS 9000 DA ES

Vendor code: BS-9000-DA-ES

Brand: FUBAG

781,560֏

Price in reward points: 651300

Found it cheaper?

6513 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

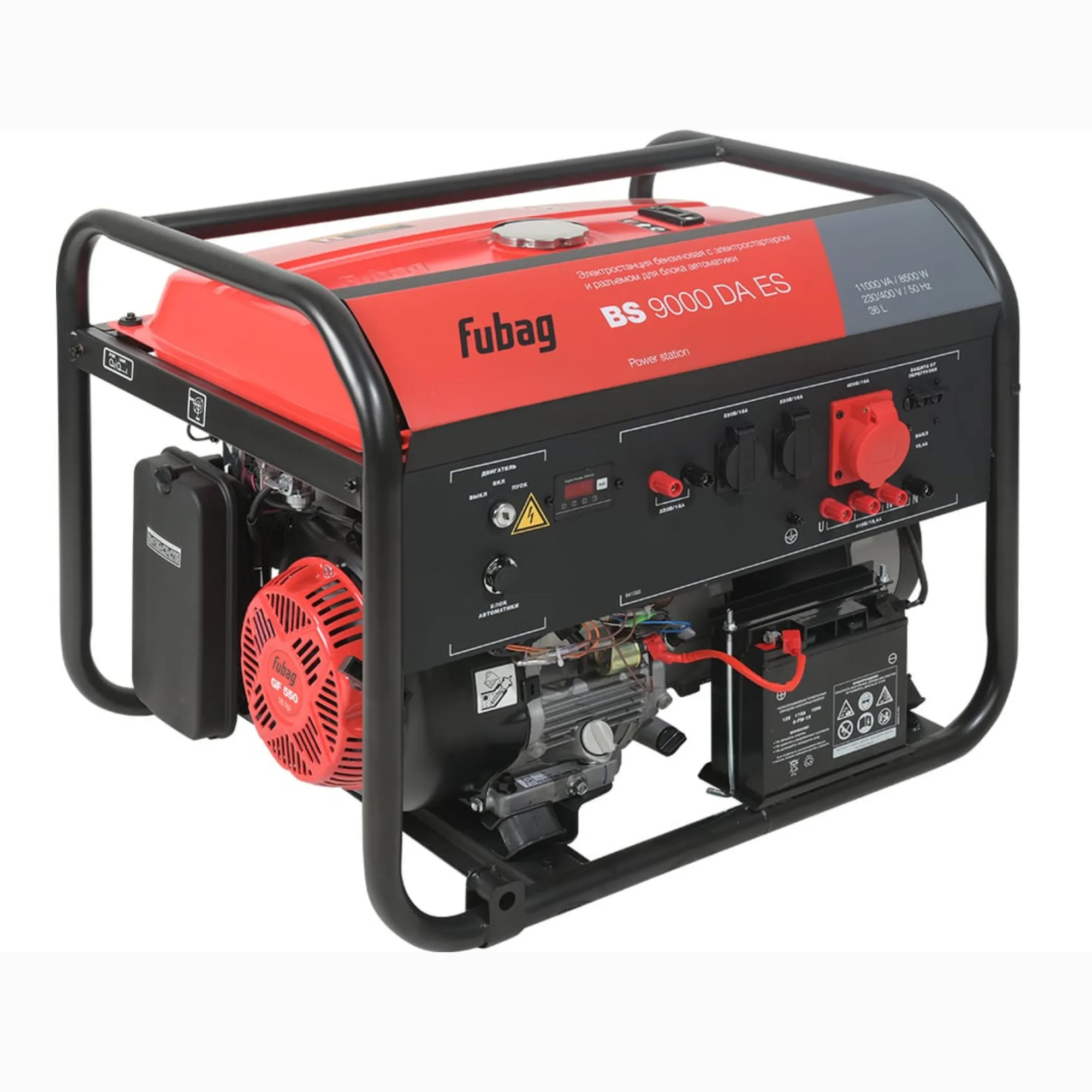

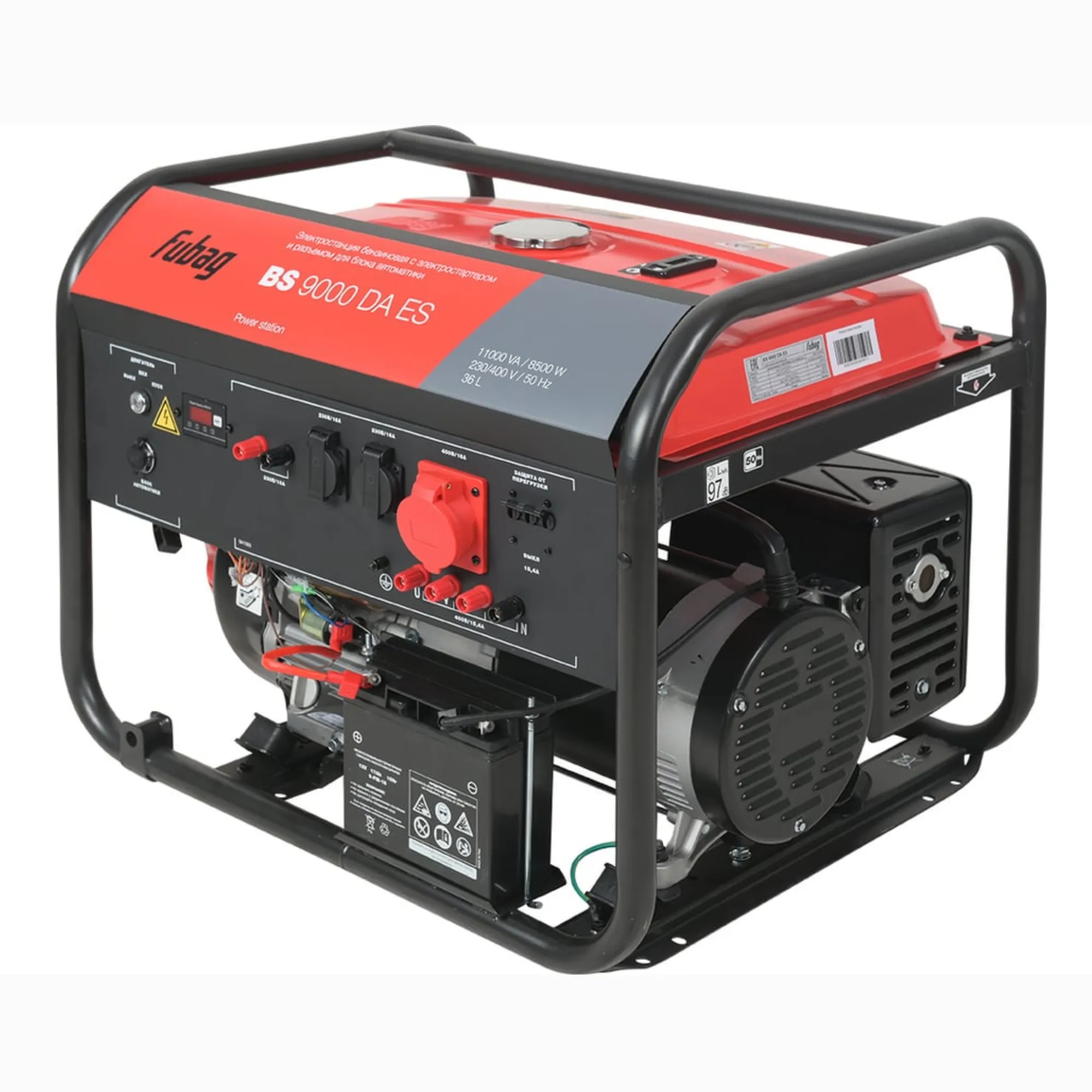

Description FUBAG BS 9000 DA ES 8.8 kW three-phase gasoline generator with ATS connector

FUBAG BS 9000 DA ES is a three-phase gasoline generator with 8.8 kW maximum and 8.5 kW rated output, a FUBAG DH550 engine, AVR and a connector for an external ATS unit.

FUBAG · Three-phase gasoline generator

Three-phase and single-phase power, ready for ATS

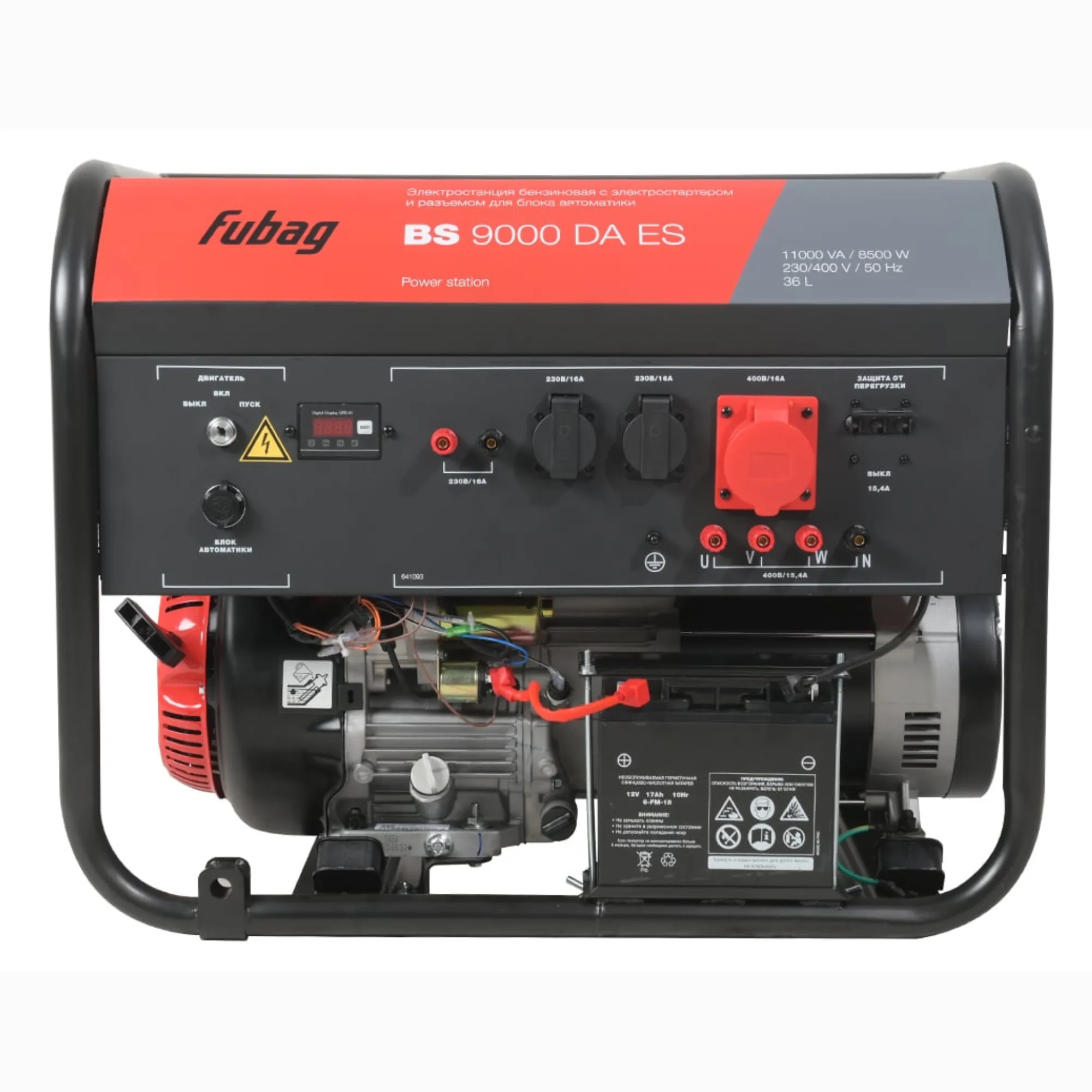

AVR keeps voltage stable, and with an external ATS unit the generator can start automatically when mains power fails. The panel carries two 230 V 16 A sockets, one 400 V 16 A socket.

Maximum output8800 W

Rated output8500 W

Engine550 cc, 16 hp

Fuel tank36 L

Product description

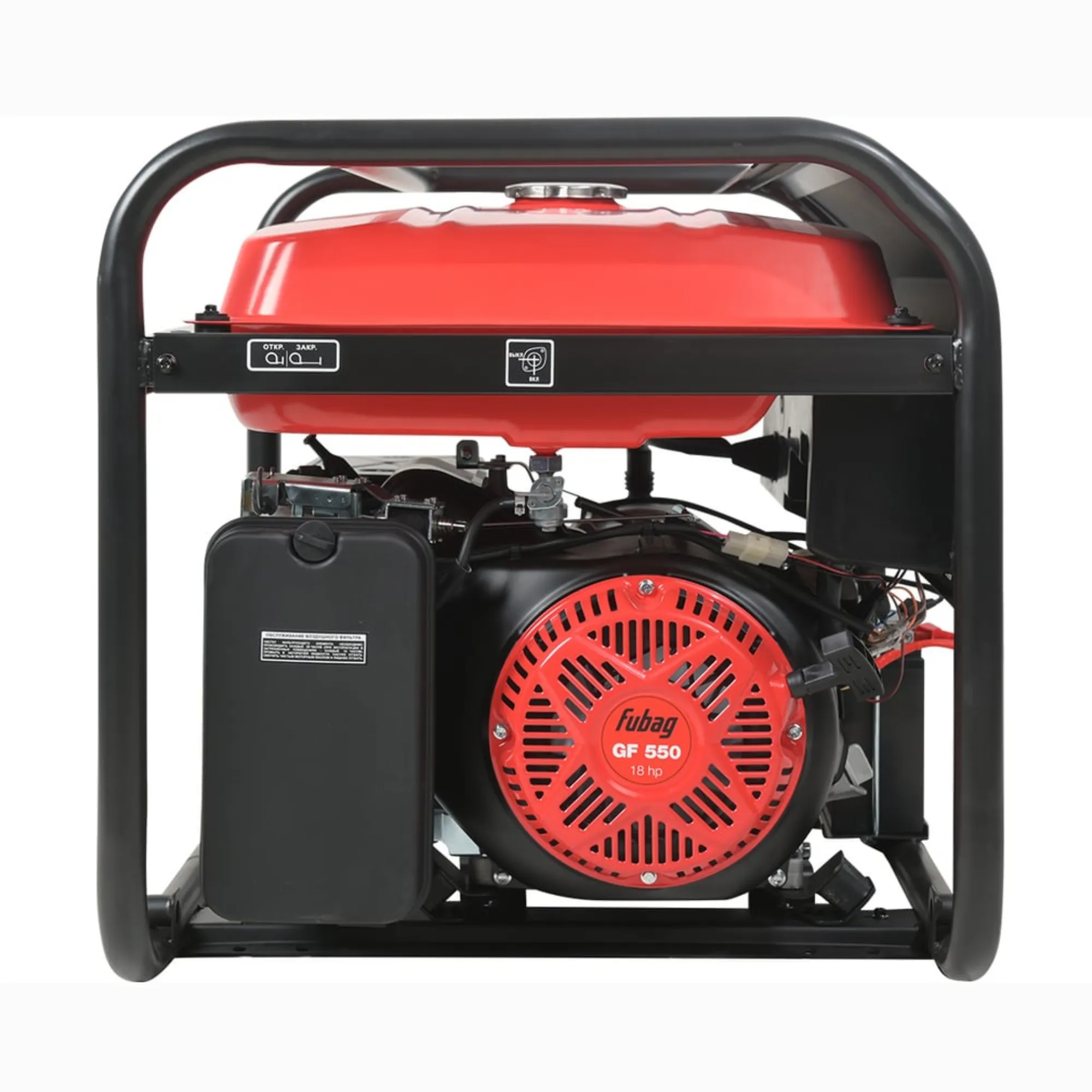

FUBAG BS 9000 DA ES is an open-frame three-phase gasoline generator with a 550 cc, 16 hp single-cylinder air-cooled FUBAG DH550 engine running at 3000 rpm. The synchronous alternator with AVR delivers a stable 400/230 V, 50 Hz, and the panel carries two 230 V 16 A sockets, one 400 V 16 A socket. It is started with an electric starter, with the recoil starter as a backup. An external ATS unit connects through a dedicated connector, while low-oil protection and a circuit breaker protect the unit. The 36 L tank lasts about 7.8 hours at 75% load.

Advantages

Three-phase 400 v and single-phase 230 v output and AVR for stable voltage for equipment and tools.
ATS unit connector for building an automatic backup power system.
Electric and recoil start and a 36 L tank for convenient, long operation.

Technical specifications

Special featuresFUBAG DH550 550 cc 16 hp engine, three-phase 400 V and single-phase 230 V output, AVR, electric and recoil start, connector for an ATS unit (sold separately), copper-wound alternator, 5-in-1 multifunction digital display (voltage, power, current, frequency, running hours), reinforced welded 32 mm steel frame, IP23

Included in the packageGenerator, battery, plugs (2×230 V/16 A, 400 V/16 A), 2 ignition keys, spark plug wrench, open-end wrench, oil funnel, operating manual

Manufacturer countryGermany

PackingCarton box

FunctionsThree-phase and single-phase power supply, automatic voltage regulation, circuit-breaker overload protection, low-oil shutdown, external ATS unit connection

Weight kg107.4

Voltage (Volt)230/400

Power (W)8800

Engine typeGasoline, 4-stroke, single-cylinder, air-cooled, FUBAG DH550

Rated speed rpm3000

Rated output W8500

Engine power (Horsepower)16

Fuel tank L36

Starting systemMechanical + electrical

Engine capacity cc550

Number of cylinders pcs1

Warranty period. month12

InverterNo

Method of power supply of the instrumentGasoline engine

Maximum sound/noise level (dB)74

Scope of applicationBackup and autonomous power for homes, country houses, workshops, small businesses, construction sites and farms, supplying three-phase and single-phase equipment

Number of sockets 230 V2

FuelAI-92 gasoline

Voltage regulationAutomatic voltage regulator (AVR)

Operating temperature range, °C-5…+40

Power factor0.8

Oil volume l1.2

ATS connectorYes

Nominal frequency of alternating current, Hz50

Fuel consumption g/kWh360

Oil consumption g/kWh6

Number of output phases3

Number of sockets 380 V1

Number of sockets 12 V0

Casing typeOpen

USB socket0

Automatic Transfer Switch (ATS)No

Package contents

Generator, battery, plugs (2×230 V/16 A, 400 V/16 A), 2 ignition keys, spark plug wrench, open-end wrench, oil funnel, operating manual.

Applications

Backup and autonomous power for homes, country houses, workshops, small businesses, construction sites and farms, supplying three-phase and single-phase equipment.

Main attributes FUBAG BS 9000 DA ES 8.8 kW three-phase gasoline generator with ATS connector

Technical

Automatic Transfer Switch (ATS) No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Document number on the customs status of goods

Engine capacity cc 550

Engine power (Horsepower) 16

Engine type Gasoline, 4-stroke, single-cylinder, air-cooled, FUBAG DH550

Functions Three-phase and single-phase power supply, automatic voltage regulation, circuit-breaker overload protection, low-oil shutdown, external ATS unit connection

Manufacturer country Germany

Noise level: dB(A) 74

Operating temperature range, °C -5…+40

Power (W) 8800

Power factor 0.8

Protection class IP23

Rated output W 8500

Rated speed rpm 3000

Scope of application Backup and autonomous power for homes, country houses, workshops, small businesses, construction sites and farms, supplying three-phase and single-phase equipment

Special features FUBAG DH550 550 cc 16 hp engine, three-phase 400 V and single-phase 230 V output, AVR, electric and recoil start, connector for an ATS unit (sold separately), copper-wound alternator, 5-in-1 multifunction digital display (voltage, power, current, frequency, running hours), reinforced welded 32 mm steel frame, IP23

Starting system Mechanical + electrical

Warranty period. month 12

Structure

ATS connector Yes

Casing type Open

Inverter No

Number of cylinders pcs 1

Number of output phases 3

Number of sockets 12 V 0

Number of sockets 230 V 2

Number of sockets 380 V 1

USB socket 0

Weight kg 107.4

Nutrition

Fuel AI-92 gasoline

Fuel consumption g/kWh 360

Nominal frequency of alternating current, Hz 50

Oil consumption g/kWh 6

Power supply type Gasoline engine

Voltage (Volt) 230/400

Voltage regulation Automatic voltage regulator (AVR)

Size

Fuel tank L 36

Oil volume l 1.2

Packing

Packing Carton box

Set

Included in the package Generator, battery, plugs (2×230 V/16 A, 400 V/16 A), 2 ignition keys, spark plug wrench, open-end wrench, oil funnel, operating manual
