Resanta IPR-70 plasma cutter: max current 70 A

Filter
27222 - 4279034 ֏ Price
- ֏
Stock status
Display
Duty cycle, %
Type
Power (Watts)
3.4 - 140 Weight
-
New
Instrument class
Maximum electrode diameter (mm)
Brand
Maximum welding current (A)
Supply voltage (V)
Welding Type(s)
Maximum cutting capacity in steel 400 N/mm² (mm)
Welding current type
Maximum wire diameter (mm)
Gasless welding (flux-cored wire)
MMA power consumption, kVA
Rated current A
New
In stock
Model: ИПР-70
Vendor code: 65-177
Brand: RESANTA
326,669֏
Price in reward points: 326669
Found it cheaper?
16333 points to the account
Payment
Delivery
Delivery within 2 hours.
Delivery within 2 hours.
Yerevan
3,000֏
Delivery within 24 hours.
Delivery within 24 hours.
Yerevan
Free
Delivery within 3 hours.
Delivery within 3 hours.
Regions adjacent to Yerevan
5,000֏
Delivery within 36 hours.
Delivery within 36 hours.
Regions adjacent to Yerevan
Free
Delivery within 24 hours.
Delivery within 24 hours.
Regions not adjacent to Yerevan
35,000֏
Delivery within 7 days.
Delivery within 7 days.
Regions not adjacent to Yerevan
Free

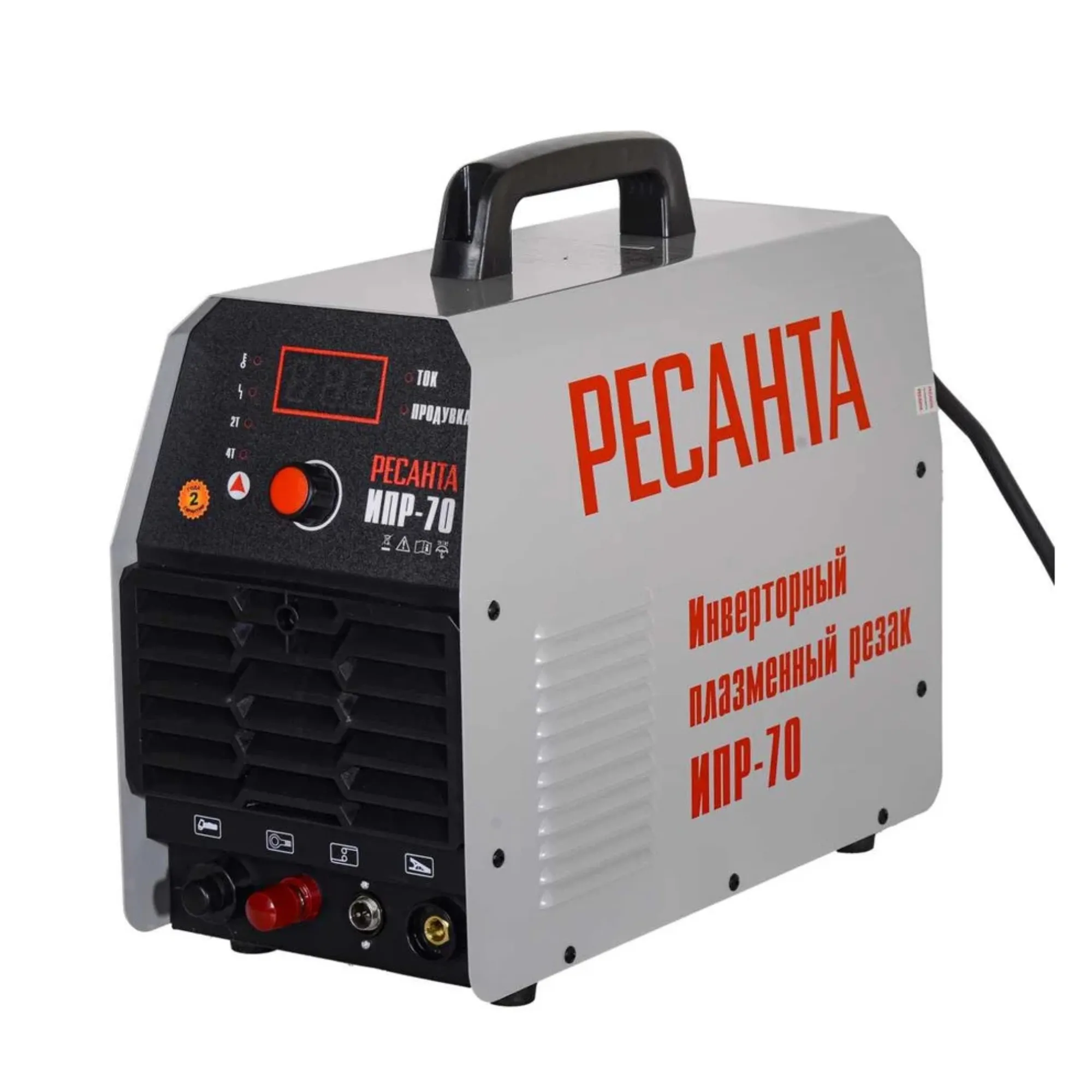

Description Resanta IPR-70 plasma cutter, 70 A

Resanta IPR-70 is a plasma cutter: max current 70 A, cut up to 20 mm.
Plasma cutting

Cut up to 20 mm, input voltage 323–437 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current70 A
Cut up to20 mm
Input voltage323–437 V
Weight13.5 kg
Product description

Resanta IPR-70 is a plasma cutter (plasma cutting). Max current is 70 A, cut up to 20 mm, input voltage 323–437 V. It weighs 13.5 kg.

Advantages
  • Cutting current 15–70 A, 380 V.
  • Steel and stainless up to 20 mm.
  • Aluminium up to 12 mm.
  • HF ignition with automatic re-strike.
  • Detachable torch, pressure gauge, digital display.
  • 70% duty cycle, IP21S.
Technical specifications
Included in the packagePlasma cutter, plasma torch, earth clamp cable, moisture/oil separator, manual
Manufacturer countryRussia
PackingBox
Weight kg13.5
Voltage (Volt)380
Power (W)9000
Welding Type(s)Plasma cutting (CUT)
Maximum electrode diameter mm0
No-load voltage V288
Warranty period. month12
Minimum electrode diameter mm0
Pull Force Lbs0
Air flow (l/min)200
TypePlasma cutter
Power supply typeCorded
Instrument classProfessional
Cable length (cm)200
Rated current A100
MMA power consumption, kVA9
Protection classClass I
Power factor0.85
Nominal frequency of alternating current, Hz50
DisplayYes
Overheat protectionYes
Maximum cutting capacity in steel 400 N/mm² (mm)20
Maximum cutting thickness in stainless steel (mm)20
Duty cycle, %70
Minimum welding current (A)15
Maximum welding current (A)70
Minimum input voltage (V)323
Maximum input voltage (V)437
Welding current typeDirect current (DC)
Minimum wire diameter (mm)0
Maximum wire diameter (mm)0
Maximum wire spool weight (kg)0
Gasless welding (flux-cored wire)No
Hot StartNo
Arc ForceNo
Anti-StickNo
VRD (voltage reduction device)No
Ingress protection rating (IP)IP21S
Welding cable length (m)5
Cooling typeAir
Built-in compressorNo
Arc ignition typeNon-contact (HF)
Maximum weldable metal thickness (mm)0
Package contents
Plasma cutter, plasma torch, earth clamp cable, moisture/oil separator, manual.
Applications
Fast compressed-air plasma cutting of ferrous and non-ferrous metals, stainless sheets and structures.

Main attributes Resanta IPR-70 plasma cutter, 70 A

Technical
Anti-Stick No
Arc Force No
Built-in compressor No
Certificate of Conformity number
Certificate/declaration expiration date
Date of registration of the certificate/declaration
Declaration of Conformity number
Display Yes
Document number on the customs status of goods
Duty cycle, % 70
Gasless welding (flux-cored wire) No
Hot Start No
Ingress protection rating (IP) IP21S
Instrument class Professional
Manufacturer country Russia
Maximum cutting capacity in steel 400 N/mm² (mm) 20
Maximum cutting thickness in stainless steel (mm) 20
Maximum weldable metal thickness (mm) 0
Maximum welding current (A) 70
Maximum wire diameter (mm) 0
Maximum wire spool weight (kg) 0
Minimum welding current (A) 15
Minimum wire diameter (mm) 0
Overheat protection Yes
Power (W) 9000
Power factor 0.85
Protection class Class I
Pull Force Lbs 0
VRD (voltage reduction device) No
Warranty period. month 12
Welding cable length (m) 5
Minimum electrode diameter mm 0
Maximum electrode diameter mm 0
Vacuum pressure
Air flow (l/min) 200
Structure
Arc ignition type Non-contact (HF)
Cooling type Air
Type Plasma cutter
Weight kg 13.5
Welding current type Direct current (DC)
Welding Type(s) Plasma cutting (CUT)
Nutrition
Maximum input voltage (V) 437
Minimum input voltage (V) 323
MMA power consumption, kVA 9
No-load voltage V 288
Nominal frequency of alternating current, Hz 50
Power supply type Corded
Rated current A 100
Voltage (Volt) 380
Size
Cable length (cm) 200
Packing
Packing Box
Set
Included in the package Plasma cutter, plasma torch, earth clamp cable, moisture/oil separator, manual
