Resanta SAI-250AD AC/DC TIG welder: max current 250 A

Name: Resanta SAI-250AD AC/DC TIG welder: max current 250 A
Brand: RESANTA
SKU: SV97683821
Price: 300002 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: САИ-250АД AC/DC

Vendor code: SV97683821

Brand: RESANTA

300,002֏

Price in reward points: 300002

Found it cheaper?

15000 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Resanta SAI-250AD AC/DC TIG welder, 250 A

Resanta SAI-250AD AC/DC is a TIG welder: max current 250 A, duty cycle 70%.

Welding

Duty cycle 70%, input voltage 187–253 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current250 A

Duty cycle70%

Input voltage187–253 V

Weight13.5 kg

Product description

Resanta SAI-250AD AC/DC is a TIG welder (TIG + MMA). Max current is 250 A, duty cycle 70%, input voltage 187–253 V. It weighs 13.5 kg.

Advantages

TIG AC/DC and MMA 15–250 A.
High-frequency (HF) ignition.
AC balance, crater fill, 2T/4T.
70% duty cycle, 180 A at 100%.
Under/over-voltage protection.
LED digital display.

Technical specifications

Included in the packageWelding machine, TIG torch, electrode holder cable, earth clamp cable, manual

Manufacturer countryRussia

PackingBox

Weight kg13.5

Voltage (Volt)220

Power (W)10000

Welding Type(s)TIG + MMA

Maximum electrode diameter mm5.0

No-load voltage V70

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeTIG welder

Power supply typeCorded

Instrument classProfessional

Cable length (cm)200

Rated current A250

MMA power consumption, kVA10

Protection classClass I

Power factor0.72

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %70

Minimum welding current (A)15

Maximum welding current (A)250

Minimum input voltage (V)187

Maximum input voltage (V)253

Welding current typeAC/DC

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceNo

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21

Welding cable length (m)4

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)8

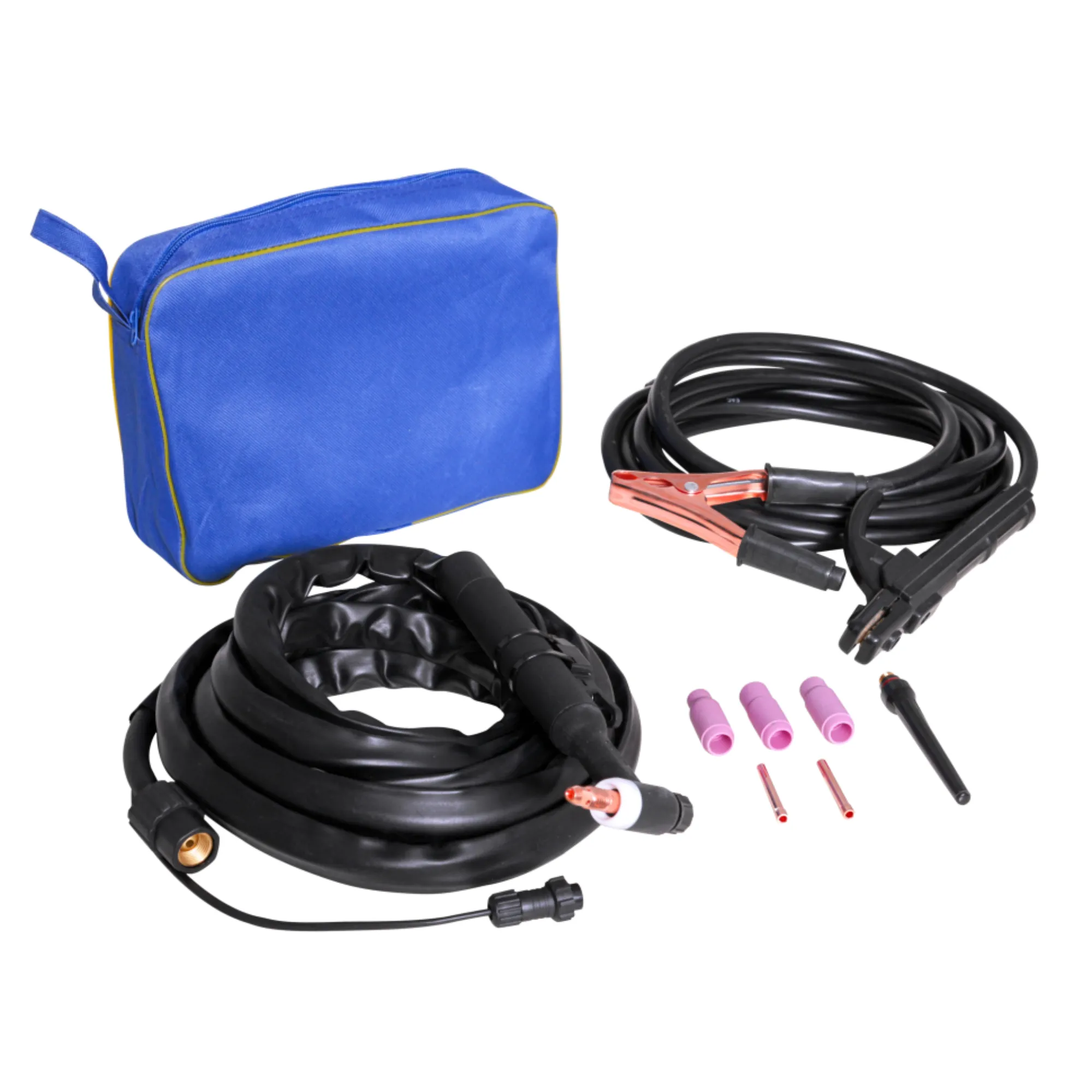

Package contents

Welding machine, TIG torch, electrode holder cable, earth clamp cable, manual.

Applications

High-quality TIG welding of aluminium, stainless steel, copper and mild steel in production and car service.

Main attributes Resanta SAI-250AD AC/DC TIG welder, 250 A

Technical

Anti-Stick Yes

Arc Force No

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 70

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21

Instrument class Professional

Manufacturer country Russia

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 8

Maximum welding current (A) 250

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 15

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 10000

Power factor 0.72

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 4

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 5.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type TIG welder

Weight kg 13.5

Welding current type AC/DC

Welding Type(s) TIG + MMA

Nutrition

Maximum input voltage (V) 253

Minimum input voltage (V) 187

MMA power consumption, kVA 10

No-load voltage V 70

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 250

Voltage (Volt) 220

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Welding machine, TIG torch, electrode holder cable, earth clamp cable, manual
