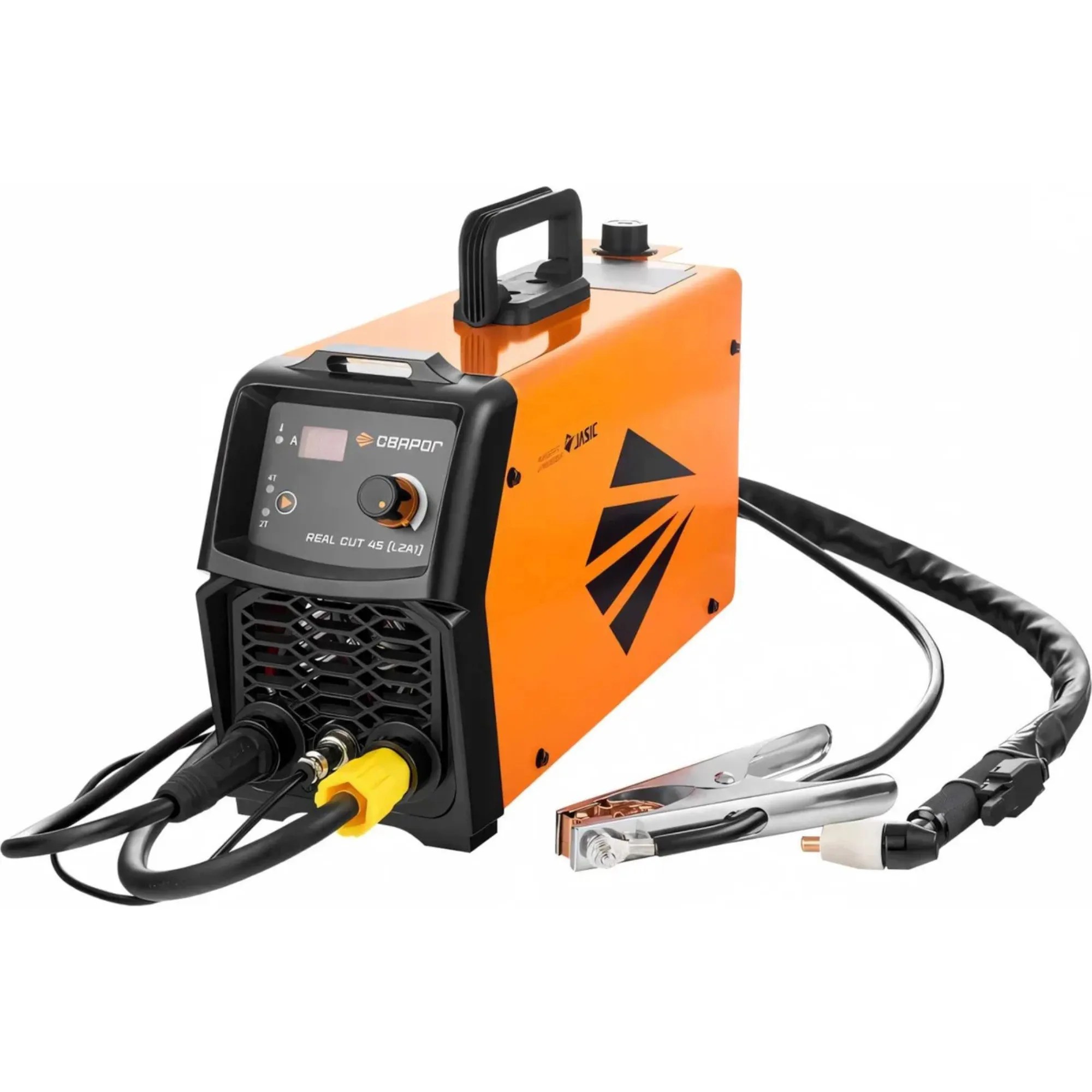

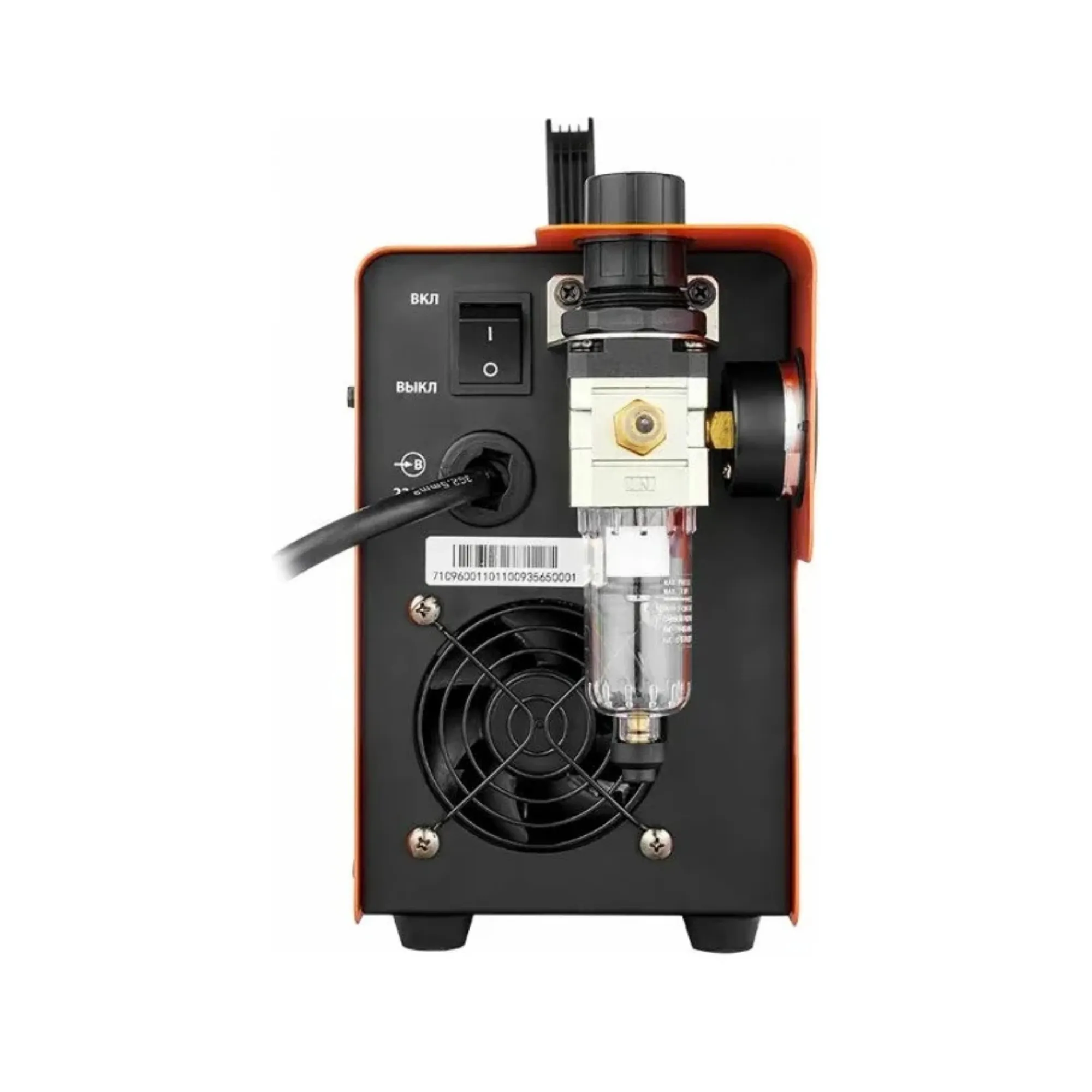

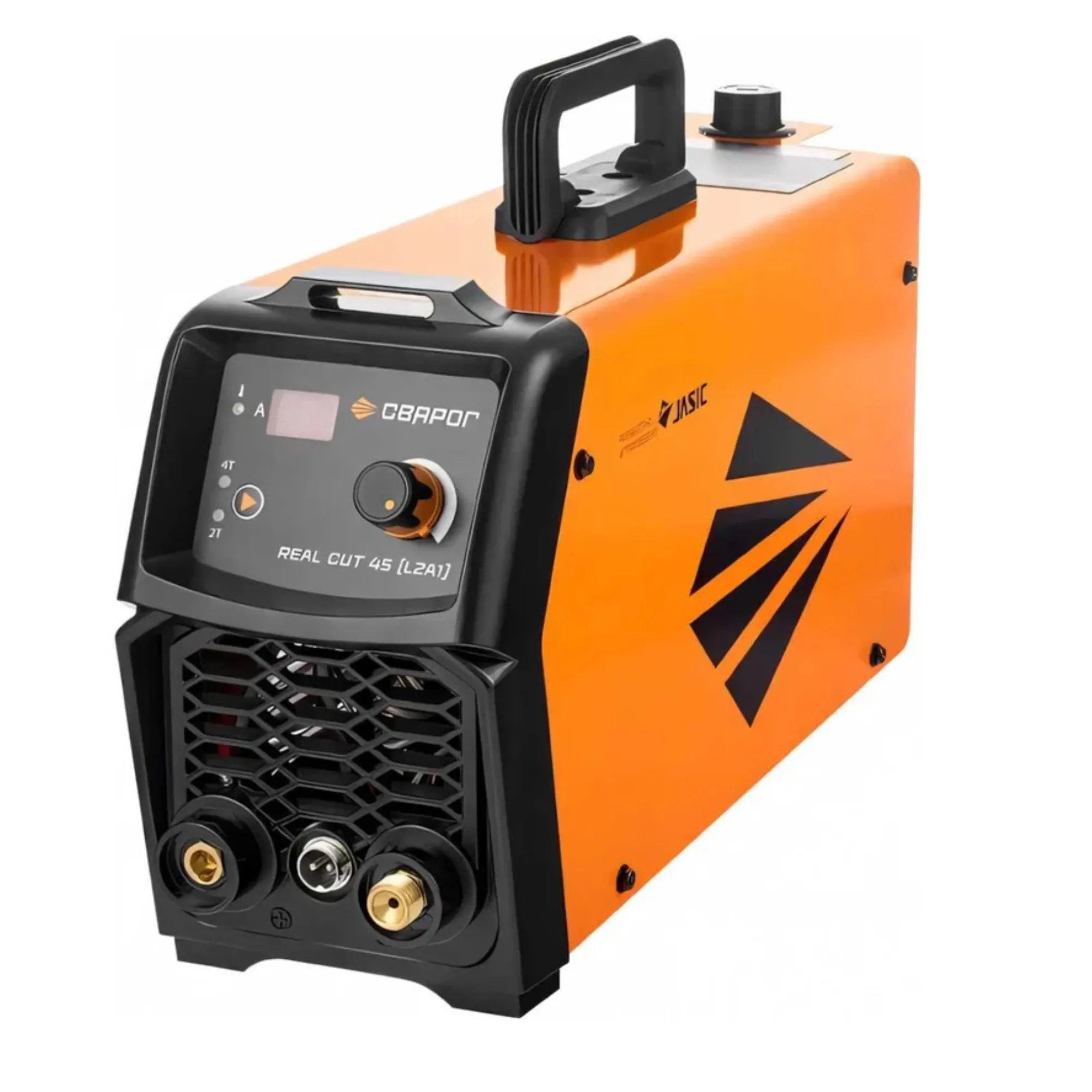

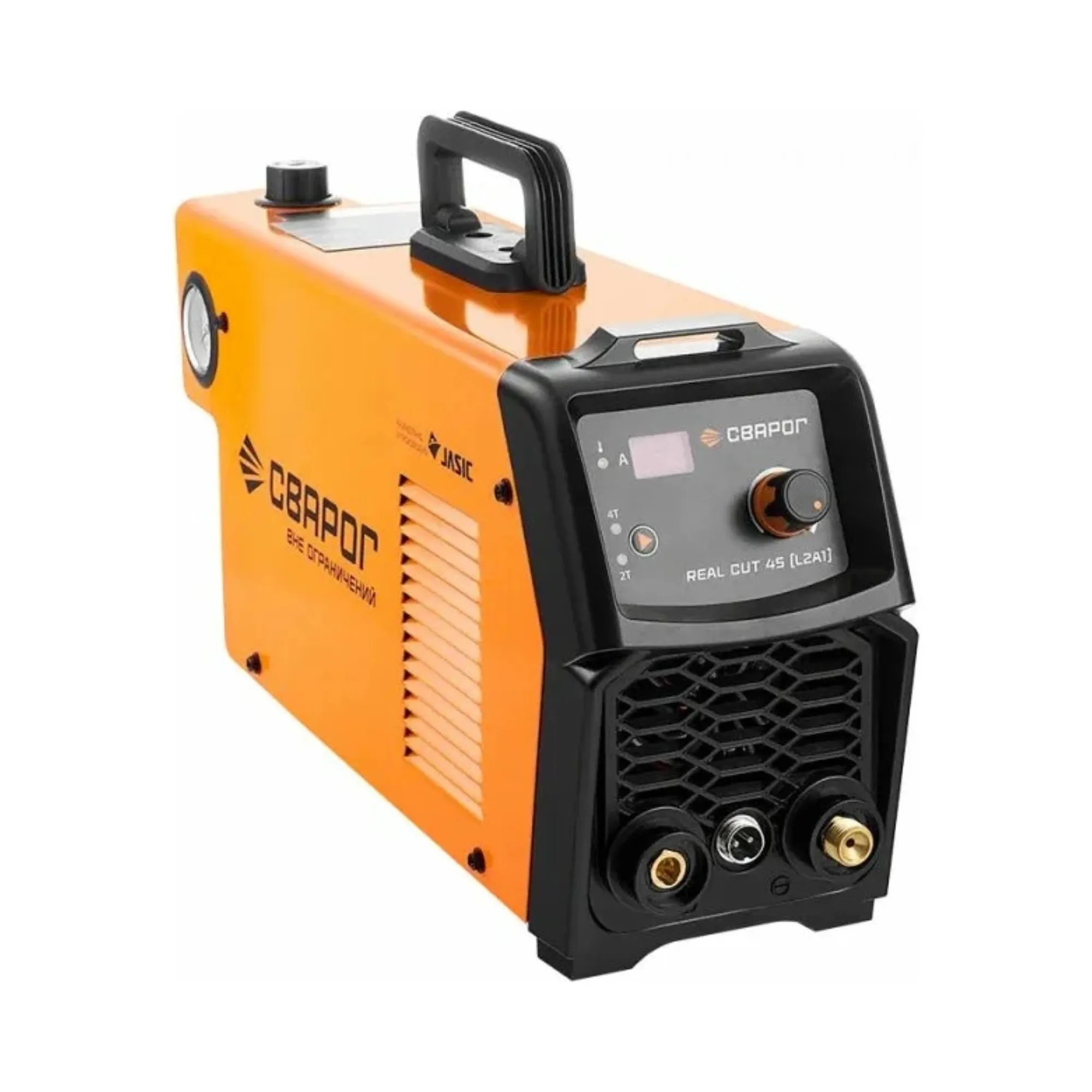

Svarog REAL CUT 45 L2A1 plasma cutter: max current 45 A

Name: Svarog REAL CUT 45 L2A1 plasma cutter: max current 45 A
Brand: Svarog
SKU: SV97966258
Price: 161112 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

Top

In stock

Model: REAL CUT 45 L2A1

Vendor code: SV97966258

Brand: Svarog

161,112֏

Price in reward points: 161112

Found it cheaper?

1611 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Svarog REAL CUT 45 L2A1 plasma cutter, 45 A

Svarog REAL CUT 45 L2A1 is a plasma cutter: max current 45 A, cut up to 12 mm.

Plasma cutting

Cut up to 12 mm, input voltage 200–270 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current45 A

Cut up to12 mm

Input voltage200–270 V

Weight6 kg

Product description

Svarog REAL CUT 45 L2A1 is a plasma cutter (plasma cutting). Max current is 45 A, cut up to 12 mm, input voltage 200–270 V. It weighs 6 kg.

Advantages

Cutting current 20–45 A, cut up to 12 mm.
Single-phase 220 V (200–270 V), 60% duty.
HF ignition, 2T/4T.
Built-in filter regulator with gauge.
Tunnel cooling, 6 kg.

Technical specifications

Included in the packagePlasma cutter, PT-31 plasma torch 5 m, earth clamp 200 A 3 m, spare parts kit, passport, operating manual

Manufacturer countryChina

PackingBox

Weight kg6

Voltage (Volt)220

Power (W)7000

Welding Type(s)Plasma cutting (CUT)

Maximum electrode diameter mm0

No-load voltage V300

Warranty period. month12

Minimum electrode diameter mm0

Pull Force Lbs0

Air flow (l/min)100

TypePlasma cutter

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)200

Rated current A100

MMA power consumption, kVA7

Protection classClass I

Power factor0.7

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)12

Maximum cutting thickness in stainless steel (mm)10

Duty cycle, %60

Minimum welding current (A)20

Maximum welding current (A)45

Minimum input voltage (V)200

Maximum input voltage (V)270

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartNo

Arc ForceNo

Anti-StickNo

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21S

Welding cable length (m)5

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)0

Package contents

Plasma cutter, PT-31 plasma torch 5 m, earth clamp 200 A 3 m, spare parts kit, passport, operating manual.

Applications

Cutting of steel, stainless steel, aluminium and other conductive metals in workshops, production and on site.

Main attributes Svarog REAL CUT 45 L2A1 plasma cutter, 45 A

Technical

Anti-Stick No

Arc Force No

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start No

Ingress protection rating (IP) IP21S

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 12

Maximum cutting thickness in stainless steel (mm) 10

Maximum weldable metal thickness (mm) 0

Maximum welding current (A) 45

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 20

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 7000

Power factor 0.7

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 5

Minimum electrode diameter mm 0

Maximum electrode diameter mm 0

Vacuum pressure

Air flow (l/min) 100

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type Plasma cutter

Weight kg 6

Welding current type Direct current (DC)

Welding Type(s) Plasma cutting (CUT)

Nutrition

Maximum input voltage (V) 270

Minimum input voltage (V) 200

MMA power consumption, kVA 7

No-load voltage V 300

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 100

Voltage (Volt) 220

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Plasma cutter, PT-31 plasma torch 5 m, earth clamp 200 A 3 m, spare parts kit, passport, operating manual

Reviews about Svarog REAL CUT 45 L2A1 plasma cutter, 45 A

There are no reviews for this product.

Questions and Answers (FAQ) Svarog REAL CUT 45 L2A1 plasma cutter, 45 A

There are no questions about this product.

How to use Svarog REAL CUT 45 L2A1 plasma cutter, 45 A

Soon...
