Svarog REAL CUT 45 plasma cutter: max current 45 A

Filter
27222 - 4279034 ֏ Price
- ֏
Stock status
Display
Duty cycle, %
Type
Power (Watts)
3.4 - 140 Weight
-
New
Instrument class
Maximum electrode diameter (mm)
Brand
Maximum welding current (A)
Supply voltage (V)
Welding Type(s)
Maximum cutting capacity in steel 400 N/mm² (mm)
Welding current type
Maximum wire diameter (mm)
Gasless welding (flux-cored wire)
MMA power consumption, kVA
Rated current A
New
In stock
Model: REAL CUT 45
Vendor code: ZVo46260926
Brand: Svarog
255,558֏
Price in reward points: 255558
Found it cheaper?
2556 points to the account
Payment
Delivery
Delivery within 2 hours.
Delivery within 2 hours.
Yerevan
3,000֏
Delivery within 24 hours.
Delivery within 24 hours.
Yerevan
Free
Delivery within 3 hours.
Delivery within 3 hours.
Regions adjacent to Yerevan
5,000֏
Delivery within 36 hours.
Delivery within 36 hours.
Regions adjacent to Yerevan
Free
Delivery within 24 hours.
Delivery within 24 hours.
Regions not adjacent to Yerevan
35,000֏
Delivery within 7 days.
Delivery within 7 days.
Regions not adjacent to Yerevan
Free

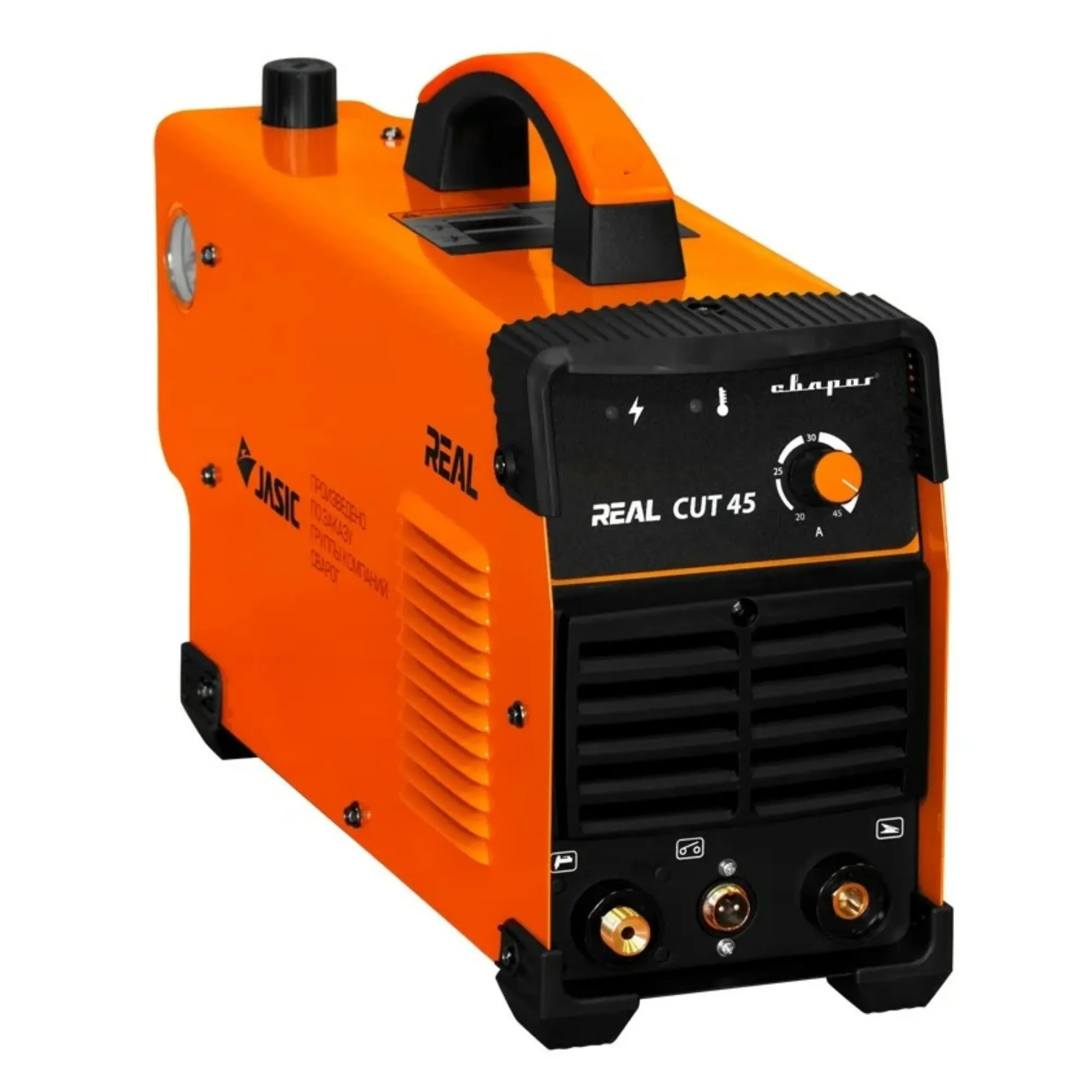

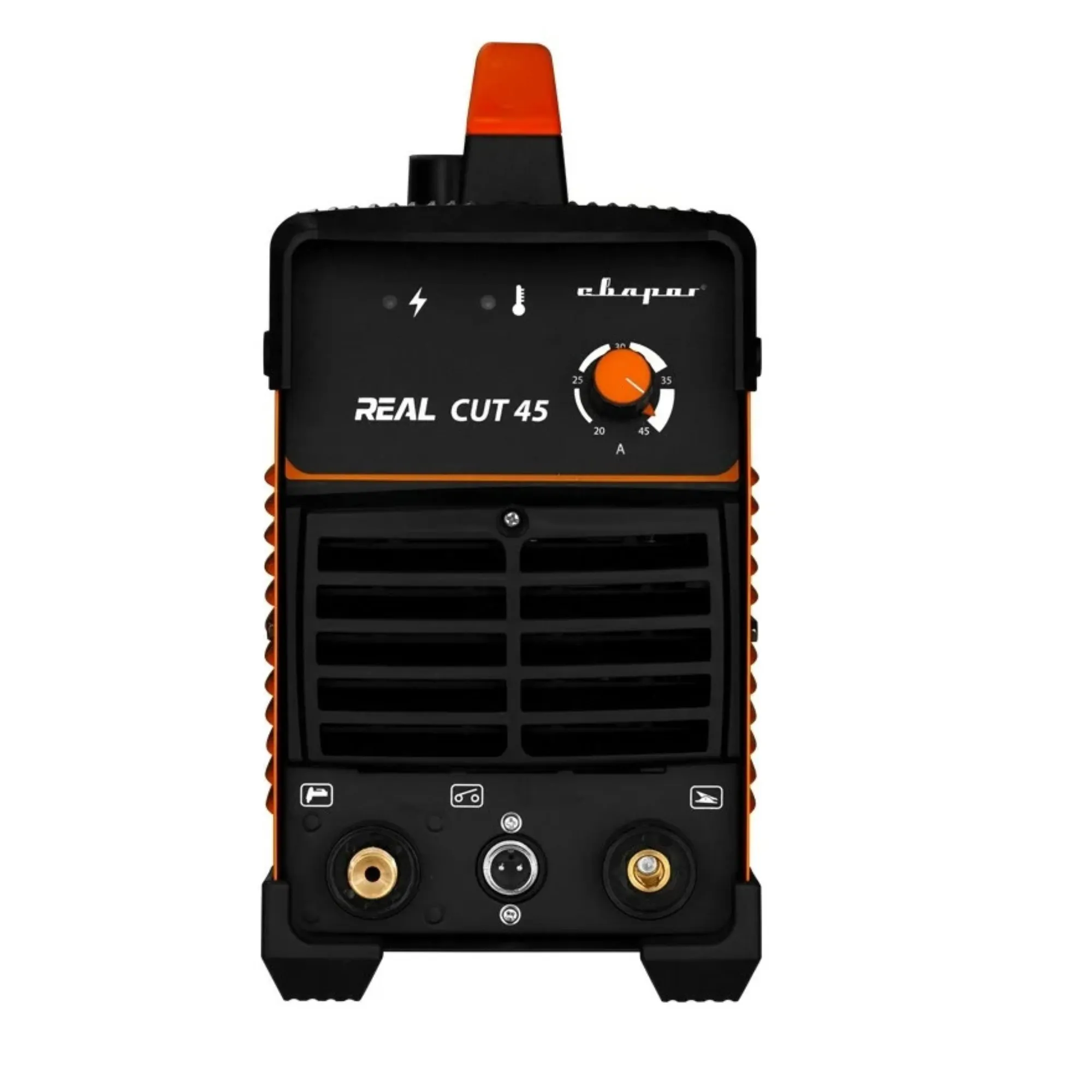

Description Svarog REAL CUT 45 plasma cutter, 45 A

Svarog REAL CUT 45 is a plasma cutter: max current 45 A, cut up to 12 mm.
Plasma cutting

Cut up to 12 mm, input voltage 160–270 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current45 A
Cut up to12 mm
Input voltage160–270 V
Weight8 kg
Product description

Svarog REAL CUT 45 is a plasma cutter (plasma cutting). Max current is 45 A, cut up to 12 mm, input voltage 160–270 V. It weighs 8 kg.

Advantages
  • Cutting current up to 45 A.
  • Cuts steel up to 12 mm.
  • 220 V supply.
  • Overheat protection, fan cooling.
  • 60% duty cycle.
  • Works on 160-270 V mains.

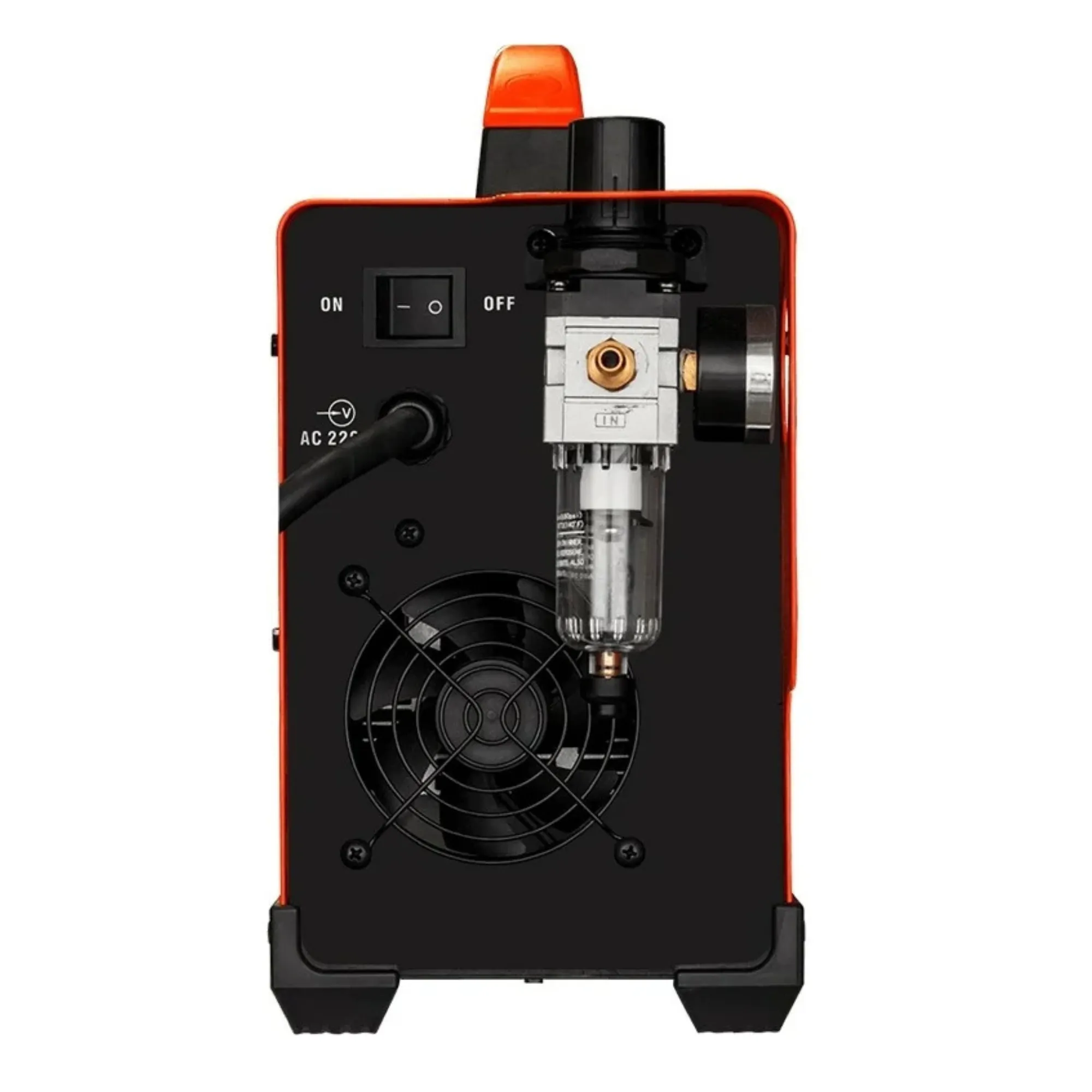

  • Built-in pressure gauge.
Technical specifications
Included in the packageAir-plasma cutting inverter, PT31 torch 5 m, 200 A earth clamp 3 m, spare parts kit, manual and passport
Manufacturer countryChina
PackingBox
Weight kg8
Voltage (Volt)220
Power (W)6200
Welding Type(s)Plasma cutting (CUT)
Maximum electrode diameter mm0
No-load voltage V310
Warranty period. month12
Minimum electrode diameter mm0
Pull Force Lbs0
Air flow (l/min)100
TypePlasma cutter
Power supply typeCorded
Instrument classSemi-professional
Cable length (cm)200
Rated current A100
MMA power consumption, kVA6.2
Protection classClass I
Power factor0.7
Nominal frequency of alternating current, Hz50
DisplayNo
Overheat protectionYes
Maximum cutting capacity in steel 400 N/mm² (mm)12
Maximum cutting thickness in stainless steel (mm)8
Duty cycle, %60
Minimum welding current (A)20
Maximum welding current (A)45
Minimum input voltage (V)160
Maximum input voltage (V)270
Welding current typeDirect current (DC)
Minimum wire diameter (mm)0
Maximum wire diameter (mm)0
Maximum wire spool weight (kg)0
Gasless welding (flux-cored wire)No
Hot StartNo
Arc ForceNo
Anti-StickNo
VRD (voltage reduction device)No
Ingress protection rating (IP)IP21S
Welding cable length (m)5
Cooling typeAir
Built-in compressorNo
Arc ignition typeNon-contact (HF)
Maximum weldable metal thickness (mm)0
Package contents
Air-plasma cutting inverter, PT31 torch 5 m, 200 A earth clamp 3 m, spare parts kit, manual and passport.
Applications
Cutting sheets, pipes and profiles of mild and stainless steel, aluminium and copper in workshops and on construction sites.

Main attributes Svarog REAL CUT 45 plasma cutter, 45 A

Technical
Anti-Stick No
Arc Force No
Built-in compressor No
Certificate of Conformity number
Certificate/declaration expiration date
Date of registration of the certificate/declaration
Declaration of Conformity number
Display No
Document number on the customs status of goods
Duty cycle, % 60
Gasless welding (flux-cored wire) No
Hot Start No
Ingress protection rating (IP) IP21S
Instrument class Semi-professional
Manufacturer country China
Maximum cutting capacity in steel 400 N/mm² (mm) 12
Maximum cutting thickness in stainless steel (mm) 8
Maximum weldable metal thickness (mm) 0
Maximum welding current (A) 45
Maximum wire diameter (mm) 0
Maximum wire spool weight (kg) 0
Minimum welding current (A) 20
Minimum wire diameter (mm) 0
Overheat protection Yes
Power (W) 6200
Power factor 0.7
Protection class Class I
Pull Force Lbs 0
VRD (voltage reduction device) No
Warranty period. month 12
Welding cable length (m) 5
Minimum electrode diameter mm 0
Maximum electrode diameter mm 0
Vacuum pressure
Air flow (l/min) 100
Structure
Arc ignition type Non-contact (HF)
Cooling type Air
Type Plasma cutter
Weight kg 8
Welding current type Direct current (DC)
Welding Type(s) Plasma cutting (CUT)
Nutrition
Maximum input voltage (V) 270
Minimum input voltage (V) 160
MMA power consumption, kVA 6.2
No-load voltage V 310
Nominal frequency of alternating current, Hz 50
Power supply type Corded
Rated current A 100
Voltage (Volt) 220
Size
Cable length (cm) 200
Packing
Packing Box
Set
Included in the package Air-plasma cutting inverter, PT31 torch 5 m, 200 A earth clamp 3 m, spare parts kit, manual and passport
