Svarog REAL TIG 200 P TIG welder: max current 200 A

Name: Svarog REAL TIG 200 P TIG welder: max current 200 A
Brand: Svarog
SKU: ZVo78414096
Price: 296669 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: REAL TIG 200 P

Vendor code: ZVo78414096

Brand: Svarog

296,669֏

Price in reward points: 296669

Found it cheaper?

2967 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Svarog REAL TIG 200 P TIG welder, 200 A

Svarog REAL TIG 200 P is a TIG welder: max current 200 A, duty cycle 60%.

Welding

Duty cycle 60%, input voltage 160–270 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current200 A

Duty cycle60%

Input voltage160–270 V

Weight7.5 kg

Product description

Svarog REAL TIG 200 P is a TIG welder (TIG + MMA). Max current is 200 A, duty cycle 60%, input voltage 160–270 V. It weighs 7.5 kg.

Advantages

TIG DC, pulse TIG DC (0.2–200 Hz), MMA DC.
Current TIG 10–200 A, MMA 10–180 A.
Single-phase 220 V, wide 160–270 V range.
HF ignition, 2T/4T, 60% duty.
Adjustable Arc Force, post-gas 0–10 s.

Technical specifications

Included in the packageWelding inverter, TIG torch WP-26, 4 m, earth clamp assembly 200 A, 3 m, spare parts kit, passport and operating manual

Manufacturer countryChina

PackingBox

Weight kg7.5

Voltage (Volt)220

Power (W)8200

Welding Type(s)TIG + MMA

Maximum electrode diameter mm4.0

No-load voltage V70

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeTIG welder

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)200

Rated current A200

MMA power consumption, kVA8.2

Protection classClass I

Power factor0.7

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %60

Minimum welding current (A)10

Maximum welding current (A)200

Minimum input voltage (V)160

Maximum input voltage (V)270

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21

Welding cable length (m)4

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)6

Package contents

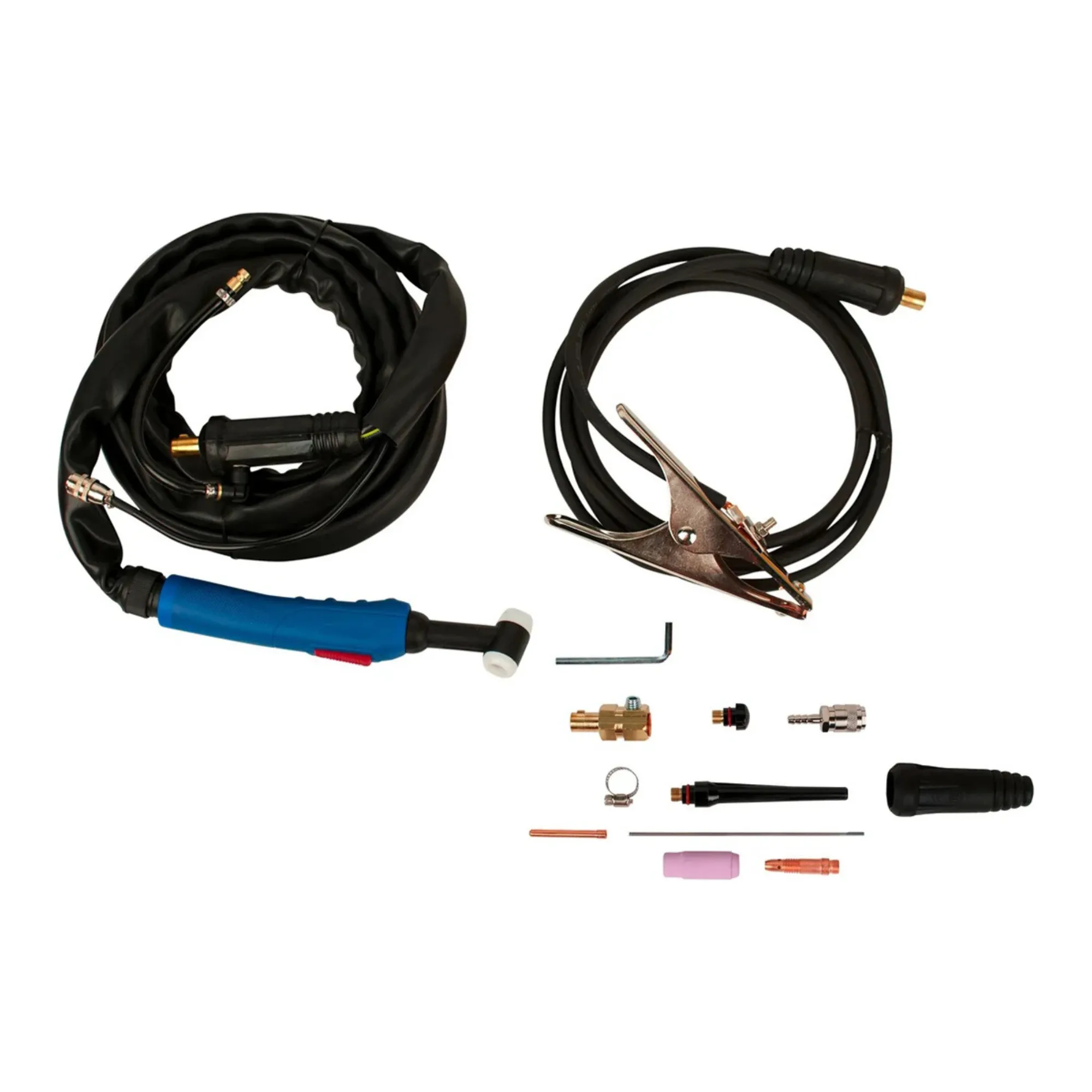

Welding inverter, TIG torch WP-26, 4 m, earth clamp assembly 200 A, 3 m, spare parts kit, passport and operating manual.

Applications

High-quality TIG welding of stainless and mild steel, copper and titanium plus stick welding in the workshop and on site.

Main attributes Svarog REAL TIG 200 P TIG welder, 200 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 6

Maximum welding current (A) 200

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 10

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 8200

Power factor 0.7

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 4

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 4.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type TIG welder

Weight kg 7.5

Welding current type Direct current (DC)

Welding Type(s) TIG + MMA

Nutrition

Maximum input voltage (V) 270

Minimum input voltage (V) 160

MMA power consumption, kVA 8.2

No-load voltage V 70

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 200

Voltage (Volt) 220

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Welding inverter, TIG torch WP-26, 4 m, earth clamp assembly 200 A, 3 m, spare parts kit, passport and operating manual

Reviews about Svarog REAL TIG 200 P TIG welder, 200 A

There are no reviews for this product.

Questions and Answers (FAQ) Svarog REAL TIG 200 P TIG welder, 200 A

There are no questions about this product.

How to use Svarog REAL TIG 200 P TIG welder, 200 A

Soon...
