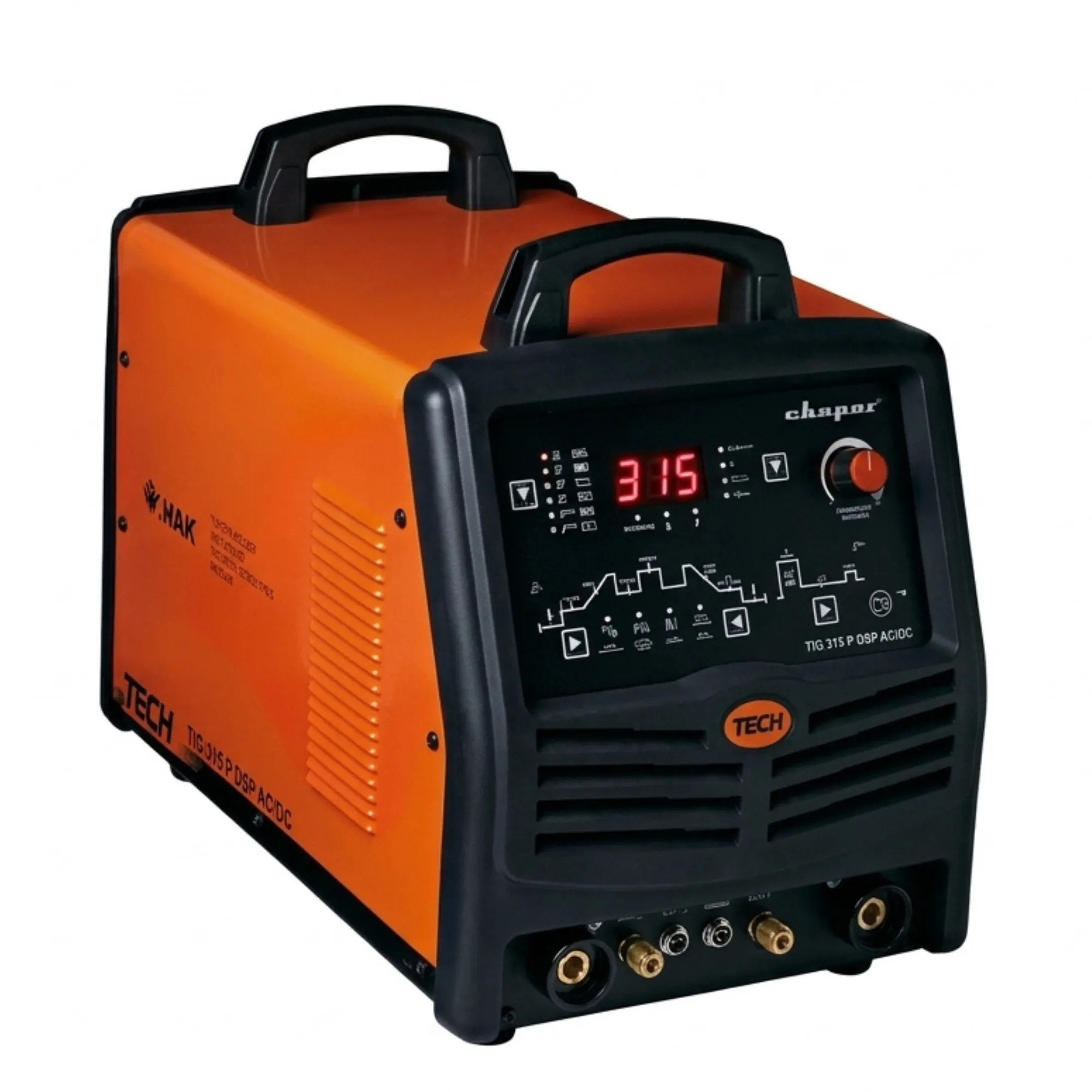

Description Svarog TECH TIG 315 P DSP AC/DC TIG welder, 320 A

Svarog TECH TIG 315 P DSP AC/DC is a TIG welder: max current 320 A, duty cycle 60%.
Welding

Duty cycle 60%, input voltage 323–437 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current320 A
Duty cycle60%
Input voltage323–437 V
Weight33 kg
Product description

Svarog TECH TIG 315 P DSP AC/DC is a TIG welder (TIG + MMA). Max current is 320 A, duty cycle 60%, input voltage 323–437 V. It weighs 33 kg.

Advantages
  • TIG AC/DC, pulse TIG, MMA AC/DC.
  • Current TIG 10–320 A, MMA 10–230 A.
  • Digital processor control (DSP), 30 program memory.
  • Three-phase 380 V, 60% duty cycle.
  • AC balance adjustment, 2T/4T, SPOT.
  • Hot Start, Arc Force, Antistick.
Technical specifications
Included in the packageWelding inverter, TIG torch TECH TS 18, 4 m, earth clamp assembly 300 A, 3 m, spare parts kit, passport and operating manual
Manufacturer countryChina
PackingBox
Weight kg33
Voltage (Volt)380
Power (W)9000
Welding Type(s)TIG + MMA
Maximum electrode diameter mm5.0
No-load voltage V50
Warranty period. month12
Minimum electrode diameter mm1.6
Pull Force Lbs0
Air flow (l/min)0
TypeTIG welder
Power supply typeCorded
Instrument classProfessional
Cable length (cm)300
Rated current A300
MMA power consumption, kVA8.7
Protection classClass I
Power factor0.93
Nominal frequency of alternating current, Hz50
DisplayYes
Overheat protectionYes
Maximum cutting capacity in steel 400 N/mm² (mm)0
Maximum cutting thickness in stainless steel (mm)0
Duty cycle, %60
Minimum welding current (A)10
Maximum welding current (A)320
Minimum input voltage (V)323
Maximum input voltage (V)437
Welding current typeAC/DC
Minimum wire diameter (mm)0
Maximum wire diameter (mm)0
Maximum wire spool weight (kg)0
Gasless welding (flux-cored wire)No
Hot StartYes
Arc ForceYes
Anti-StickYes
VRD (voltage reduction device)No
Ingress protection rating (IP)IP23
Welding cable length (m)4
Cooling typeAir
Built-in compressorNo
Arc ignition typeNon-contact (HF)
Maximum weldable metal thickness (mm)10
Package contents
Welding inverter, TIG torch TECH TS 18, 4 m, earth clamp assembly 300 A, 3 m, spare parts kit, passport and operating manual.
Applications
TIG welding of aluminium, stainless and mild steel and copper in production, car service and professional workshops.

Main attributes Svarog TECH TIG 315 P DSP AC/DC TIG welder, 320 A

Technical
Anti-Stick Yes
Arc Force Yes
Built-in compressor No
Certificate of Conformity number
Certificate/declaration expiration date
Date of registration of the certificate/declaration
Declaration of Conformity number
Display Yes
Document number on the customs status of goods
Duty cycle, % 60
Gasless welding (flux-cored wire) No
Hot Start Yes
Ingress protection rating (IP) IP23
Instrument class Professional
Manufacturer country China
Maximum cutting capacity in steel 400 N/mm² (mm) 0
Maximum cutting thickness in stainless steel (mm) 0
Maximum weldable metal thickness (mm) 10
Maximum welding current (A) 320
Maximum wire diameter (mm) 0
Maximum wire spool weight (kg) 0
Minimum welding current (A) 10
Minimum wire diameter (mm) 0
Overheat protection Yes
Power (W) 9000
Power factor 0.93
Protection class Class I
Pull Force Lbs 0
VRD (voltage reduction device) No
Warranty period. month 12
Welding cable length (m) 4
Minimum electrode diameter mm 1.6
Maximum electrode diameter mm 5.0
Vacuum pressure
Air flow (l/min) 0
Structure
Arc ignition type Non-contact (HF)
Cooling type Air
Type TIG welder
Weight kg 33
Welding current type AC/DC
Welding Type(s) TIG + MMA
Nutrition
Maximum input voltage (V) 437
Minimum input voltage (V) 323
MMA power consumption, kVA 8.7
No-load voltage V 50
Nominal frequency of alternating current, Hz 50
Power supply type Corded
Rated current A 300
Voltage (Volt) 380
Size
Cable length (cm) 300
Packing
Packing Box
Set
Included in the package Welding inverter, TIG torch TECH TS 18, 4 m, earth clamp assembly 300 A, 3 m, spare parts kit, passport and operating manual
