Description Svarog TECH TIG 400 P TIG welder, 400 A

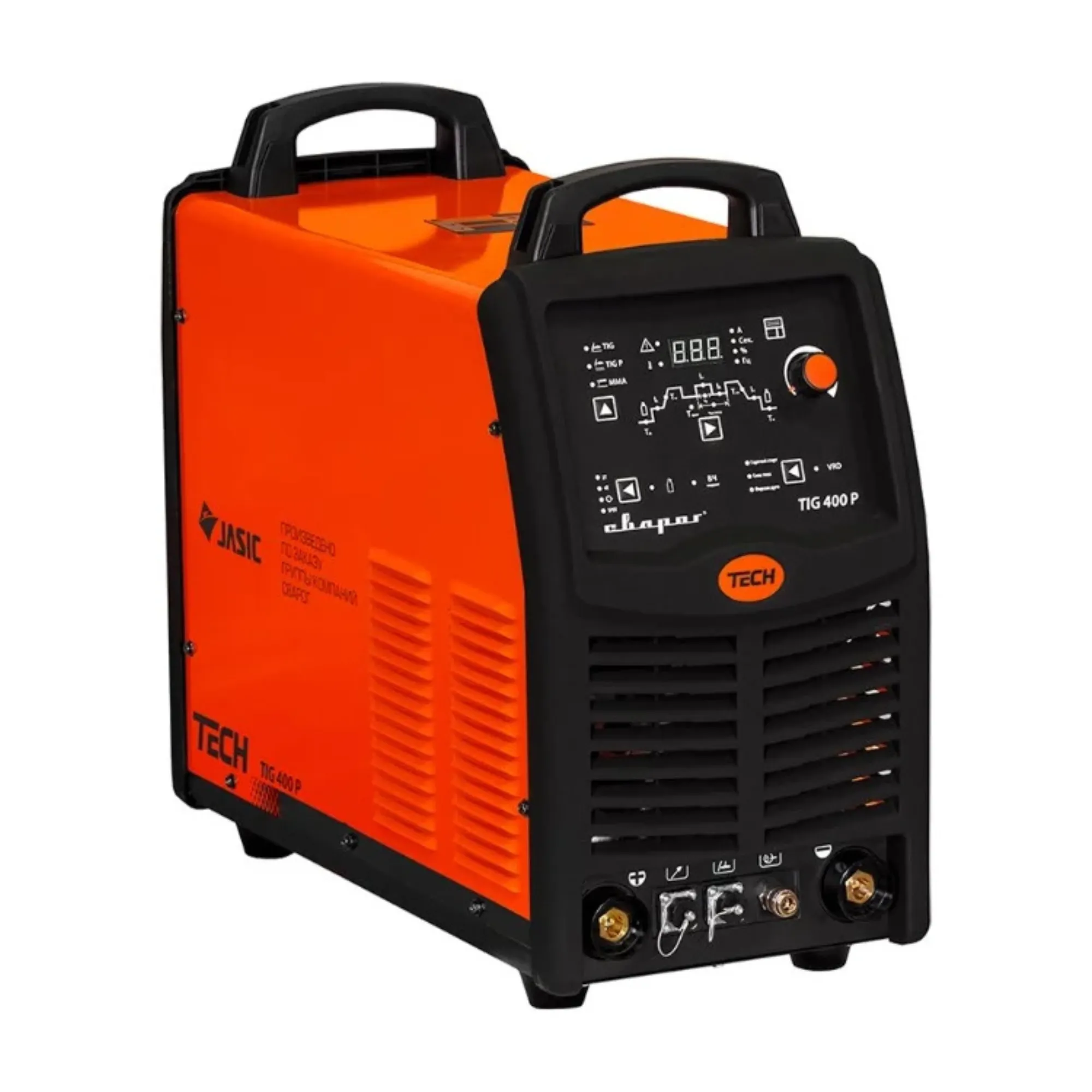

Svarog TECH TIG 400 P is a TIG welder: max current 400 A, duty cycle 60%.

Welding

Duty cycle 60%, input voltage 320–430 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current400 A

Duty cycle60%

Input voltage320–430 V

Weight32 kg

Product description

Svarog TECH TIG 400 P is a TIG welder (TIG + MMA). Max current is 400 A, duty cycle 60%, input voltage 320–430 V. It weighs 32 kg.

Advantages

TIG DC, pulse TIG DC (0.5–200 Hz), MMA DC.
Current TIG 5–400 A, MMA 30–400 A.
Three-phase 380 V, 60% duty (309 A at 100%).
Full TIG cycle, 2T/4T, SPOT, 8 programs.
Hot Start, Arc Force, switchable VRD.
NAKS certified.

Technical specifications

Included in the packageWelding inverter, TIG torch SUPER TS 18, 4 m, earth clamp assembly 400 A, 2.5 m, spare parts kit, passport and operating manual

Manufacturer countryChina

PackingBox

Weight kg32

Voltage (Volt)380

Power (W)17900

Welding Type(s)TIG + MMA

Maximum electrode diameter mm5.0

No-load voltage V66

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeTIG welder

Power supply typeCorded

Instrument classIndustrial

Cable length (cm)300

Rated current A400

MMA power consumption, kVA17.9

Protection classClass I

Power factor0.96

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %60

Minimum welding current (A)5

Maximum welding current (A)400

Minimum input voltage (V)320

Maximum input voltage (V)430

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)Yes

Ingress protection rating (IP)IP23S

Welding cable length (m)4

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)12

Package contents

Welding inverter, TIG torch SUPER TS 18, 4 m, earth clamp assembly 400 A, 2.5 m, spare parts kit, passport and operating manual.

Applications

High-quality TIG welding of stainless and mild steel, copper and titanium plus stick welding in the workshop and on site.

Main attributes Svarog TECH TIG 400 P TIG welder, 400 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP23S

Instrument class Industrial

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 12

Maximum welding current (A) 400

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 5

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 17900

Power factor 0.96

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) Yes

Warranty period. month 12

Welding cable length (m) 4

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 5.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type TIG welder

Weight kg 32

Welding current type Direct current (DC)

Welding Type(s) TIG + MMA

Nutrition

Maximum input voltage (V) 430

Minimum input voltage (V) 320

MMA power consumption, kVA 17.9

No-load voltage V 66

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 400

Voltage (Volt) 380

Size

Cable length (cm) 300

Packing

Packing Box

Set

Included in the package Welding inverter, TIG torch SUPER TS 18, 4 m, earth clamp assembly 400 A, 2.5 m, spare parts kit, passport and operating manual
