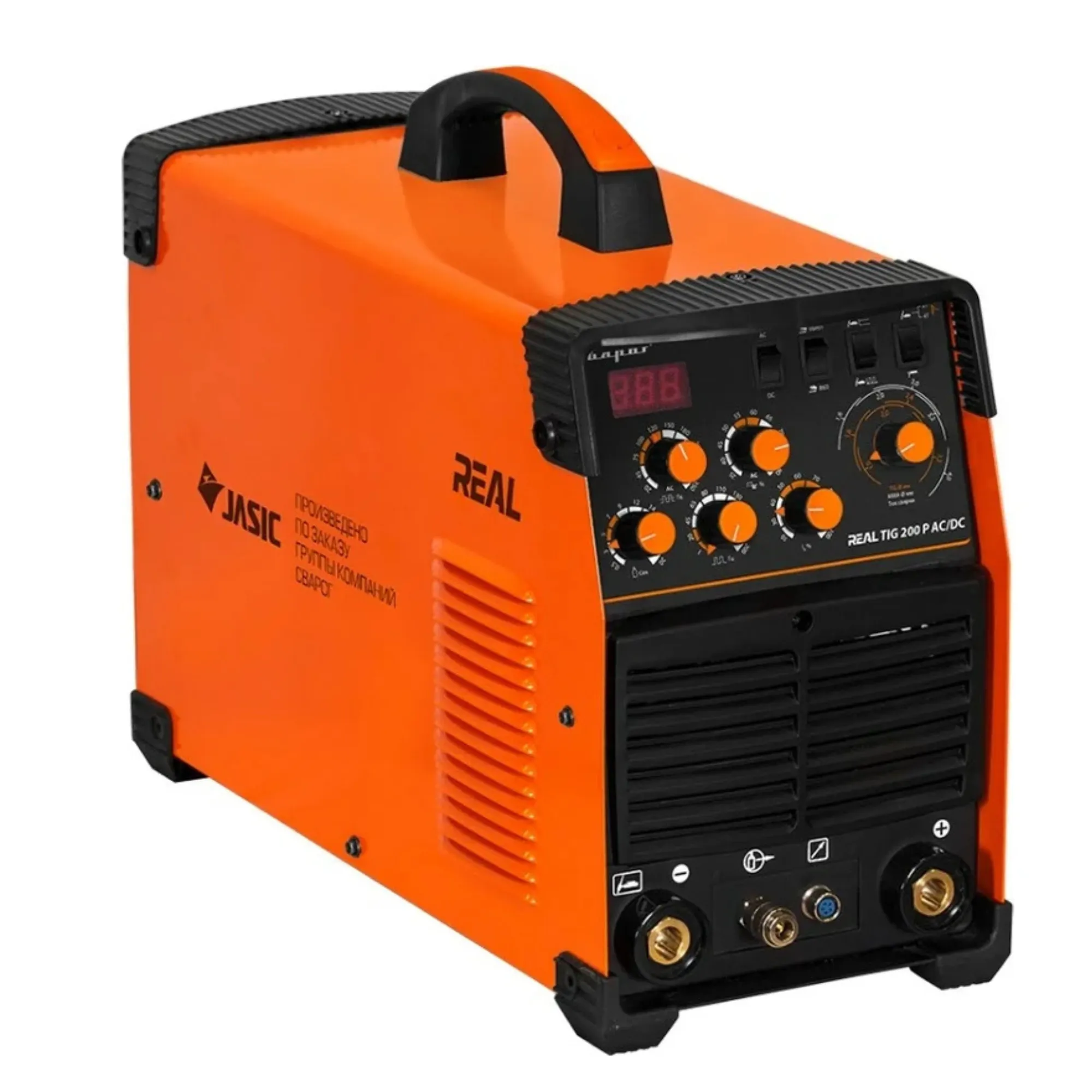

Svarog TIG 200 P AC/DC TIG welder: max current 200 A

Name: Svarog TIG 200 P AC/DC TIG welder: max current 200 A
Brand: Svarog
SKU: AP50774976
Price: 427781 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: TIG 200 P AC/DC

Vendor code: AP50774976

Brand: Svarog

427,781֏

Price in reward points: 427781

Found it cheaper?

4278 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description Svarog TIG 200 P AC/DC TIG welder, 200 A

Svarog TIG 200 P AC/DC is a TIG welder: max current 200 A, duty cycle 60%.

Welding

Duty cycle 60%, input voltage 160–270 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current200 A

Duty cycle60%

Input voltage160–270 V

Weight13.8 kg

Product description

Svarog TIG 200 P AC/DC is a TIG welder (TIG + MMA). Max current is 200 A, duty cycle 60%, input voltage 160–270 V. It weighs 13.8 kg.

Advantages

Welding current 5–200 A.
Duty cycle 60% (40°C).
AC/DC and pulse TIG, AC frequency 20–250 Hz.
HF/Lift ignition, 2T/4T, SPOT.
MMA 10–160 A, Arc Force, Anti-Stick, VRD.
Operates on 160–270 V mains, weight 13.8 kg.

Technical specifications

Included in the packageInverter welding machine, TIG torch (4 m), 200 A earth clamp (3 m), spare parts kit, operating manual, passport

Manufacturer countryChina

PackingBox

Weight kg13.8

Voltage (Volt)220

Power (W)7100

Welding Type(s)TIG + MMA

Maximum electrode diameter mm4.0

No-load voltage V63

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeTIG welder

Power supply typeCorded

Instrument classProfessional

Cable length (cm)200

Rated current A200

MMA power consumption, kVA7.1

Protection classClass I

Power factor0.7

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %60

Minimum welding current (A)5

Maximum welding current (A)200

Minimum input voltage (V)160

Maximum input voltage (V)270

Welding current typeAC/DC

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)Yes

Ingress protection rating (IP)IP21S

Welding cable length (m)4

Cooling typeAir

Built-in compressorNo

Arc ignition typeNon-contact (HF)

Maximum weldable metal thickness (mm)6

Package contents

Inverter welding machine, TIG torch (4 m), 200 A earth clamp (3 m), spare parts kit, operating manual, passport.

Applications

High-quality TIG welding of aluminium, stainless and mild steel in workshops and small-scale production.

Main attributes Svarog TIG 200 P AC/DC TIG welder, 200 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start Yes

Ingress protection rating (IP) IP21S

Instrument class Professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 6

Maximum welding current (A) 200

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 5

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 7100

Power factor 0.7

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) Yes

Warranty period. month 12

Welding cable length (m) 4

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 4.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Non-contact (HF)

Cooling type Air

Type TIG welder

Weight kg 13.8

Welding current type AC/DC

Welding Type(s) TIG + MMA

Nutrition

Maximum input voltage (V) 270

Minimum input voltage (V) 160

MMA power consumption, kVA 7.1

No-load voltage V 63

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 200

Voltage (Volt) 220

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Inverter welding machine, TIG torch (4 m), 200 A earth clamp (3 m), spare parts kit, operating manual, passport

Reviews about Svarog TIG 200 P AC/DC TIG welder, 200 A

There are no reviews for this product.

Questions and Answers (FAQ) Svarog TIG 200 P AC/DC TIG welder, 200 A

There are no questions about this product.

How to use Svarog TIG 200 P AC/DC TIG welder, 200 A

Soon...
