TSS PRO CUT 40 plasma cutter: max current 40 A

Name: TSS PRO CUT 40 plasma cutter: max current 40 A
Brand: TSS
SKU: PRO-CUT-40
Price: 202224 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: PRO CUT 40

Vendor code: PRO-CUT-40

Brand: TSS

202,224֏

Price in reward points: 202224

Found it cheaper?

2022 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

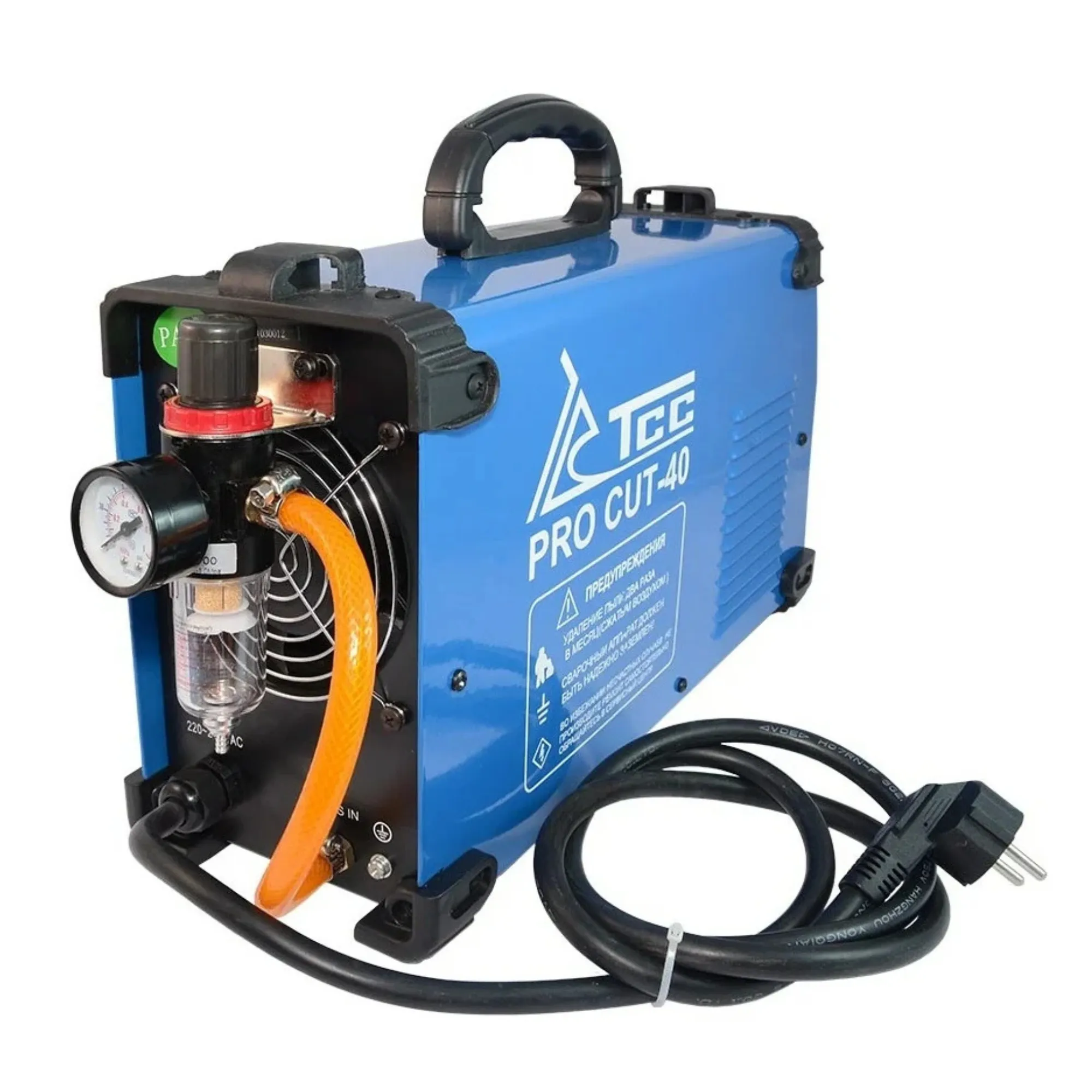

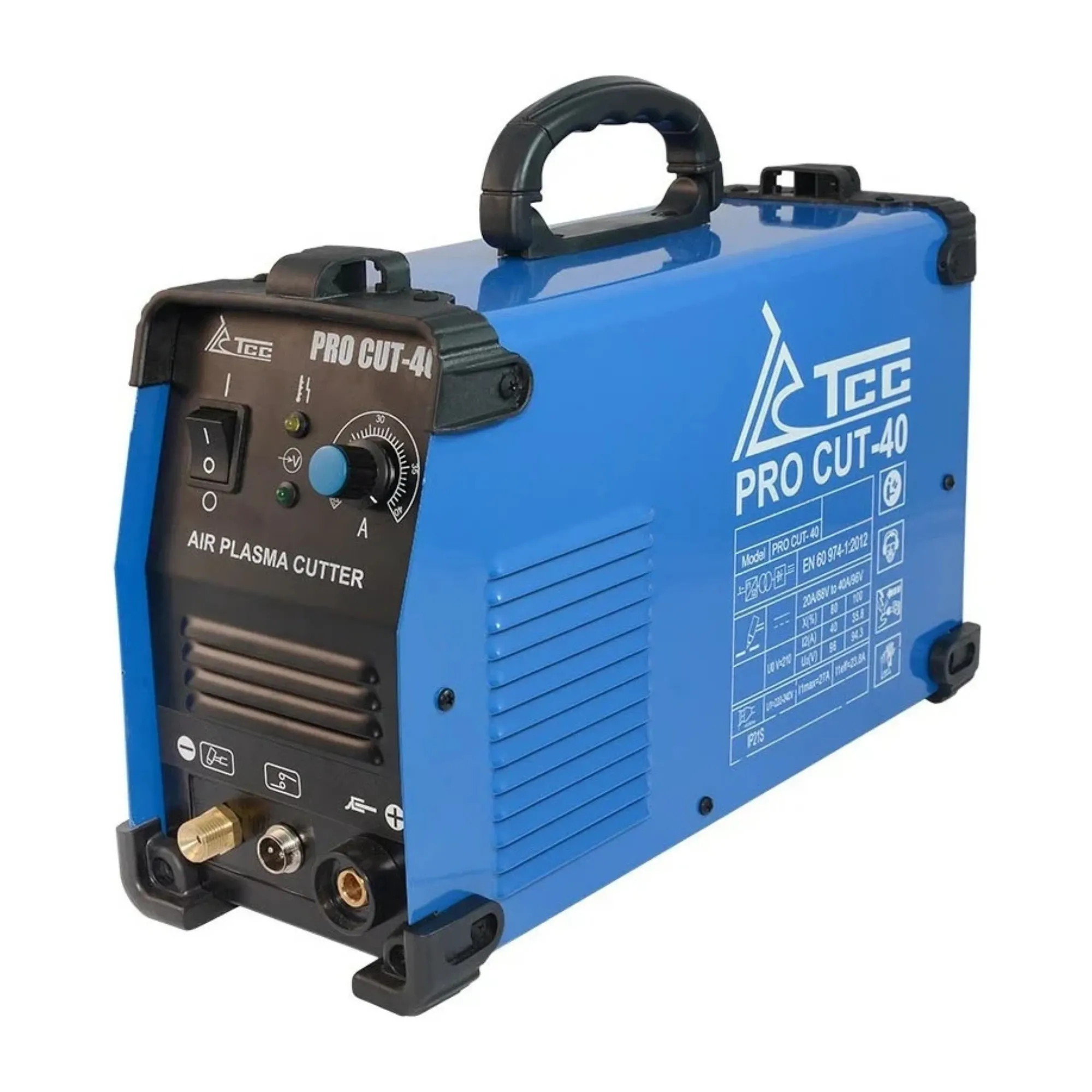

Description TSS PRO CUT 40 plasma cutter, 40 A

TSS PRO CUT 40 is a plasma cutter: max current 40 A, cut up to 12 mm.

Plasma cutting

Cut up to 12 mm, input voltage 187–253 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current40 A

Cut up to12 mm

Input voltage187–253 V

Weight8 kg

Product description

TSS PRO CUT 40 is a plasma cutter (plasma cutting). Max current is 40 A, cut up to 12 mm, input voltage 187–253 V. It weighs 8 kg.

Advantages

Cutting current up to 40 A.
Cuts steel up to 12 mm.
Air consumption 170–200 l/min at 3.5–5 bar.
PT-31 torch with 5 m lead.
Filter-regulator included.
Overheat protection.

Technical specifications

Included in the packageInverter unit, PT-31 plasma torch 5 m, torch spares, 3 m earth cable with 300 A clamp, air filter-regulator (moisture separator), 3 m gas hose, manual, warranty card

Manufacturer countryChina

PackingBox

Weight kg8

Voltage (Volt)220

Power (W)5400

Welding Type(s)Plasma cutting (CUT)

Maximum electrode diameter mm0

No-load voltage V210

Warranty period. month12

Minimum electrode diameter mm0

Pull Force Lbs0

Air flow (l/min)200

TypePlasma cutter

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)180

Rated current A100

MMA power consumption, kVA5.4

Protection classClass I

Power factor0.7

Nominal frequency of alternating current, Hz50/60

DisplayNo

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)12

Maximum cutting thickness in stainless steel (mm)10

Duty cycle, %60

Minimum welding current (A)20

Maximum welding current (A)40

Minimum input voltage (V)187

Maximum input voltage (V)253

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartNo

Arc ForceNo

Anti-StickNo

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21S

Welding cable length (m)5

Cooling typeAir

Built-in compressorNo

Arc ignition typeContact (scratch start)

Maximum weldable metal thickness (mm)0

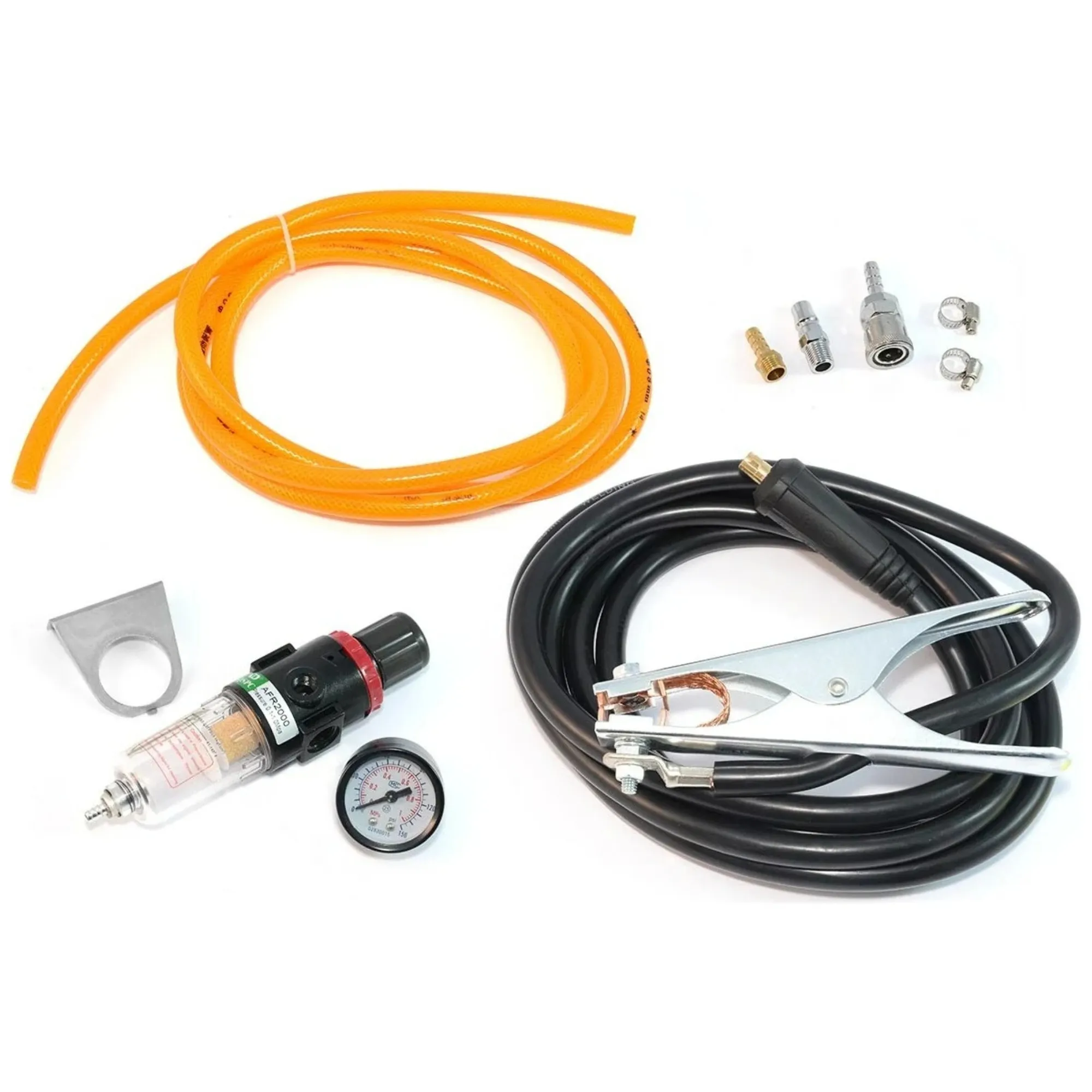

Package contents

Inverter unit, PT-31 plasma torch 5 m, torch spares, 3 m earth cable with 300 A clamp, air filter-regulator (moisture separator), 3 m gas hose, manual, warranty card.

Applications

Plasma cutting of sheet steel, stainless steel, aluminium and other conductive metals in the workshop and on site.

Main attributes TSS PRO CUT 40 plasma cutter, 40 A

Technical

Anti-Stick No

Arc Force No

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display No

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start No

Ingress protection rating (IP) IP21S

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 12

Maximum cutting thickness in stainless steel (mm) 10

Maximum weldable metal thickness (mm) 0

Maximum welding current (A) 40

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 20

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 5400

Power factor 0.7

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 5

Minimum electrode diameter mm 0

Maximum electrode diameter mm 0

Vacuum pressure

Air flow (l/min) 200

Structure

Arc ignition type Contact (scratch start)

Cooling type Air

Type Plasma cutter

Weight kg 8

Welding current type Direct current (DC)

Welding Type(s) Plasma cutting (CUT)

Nutrition

Maximum input voltage (V) 253

Minimum input voltage (V) 187

MMA power consumption, kVA 5.4

No-load voltage V 210

Nominal frequency of alternating current, Hz 50/60

Power supply type Corded

Rated current A 100

Voltage (Volt) 220

Size

Cable length (cm) 180

Packing

Packing Box

Set

Included in the package Inverter unit, PT-31 plasma torch 5 m, torch spares, 3 m earth cable with 300 A clamp, air filter-regulator (moisture separator), 3 m gas hose, manual, warranty card
