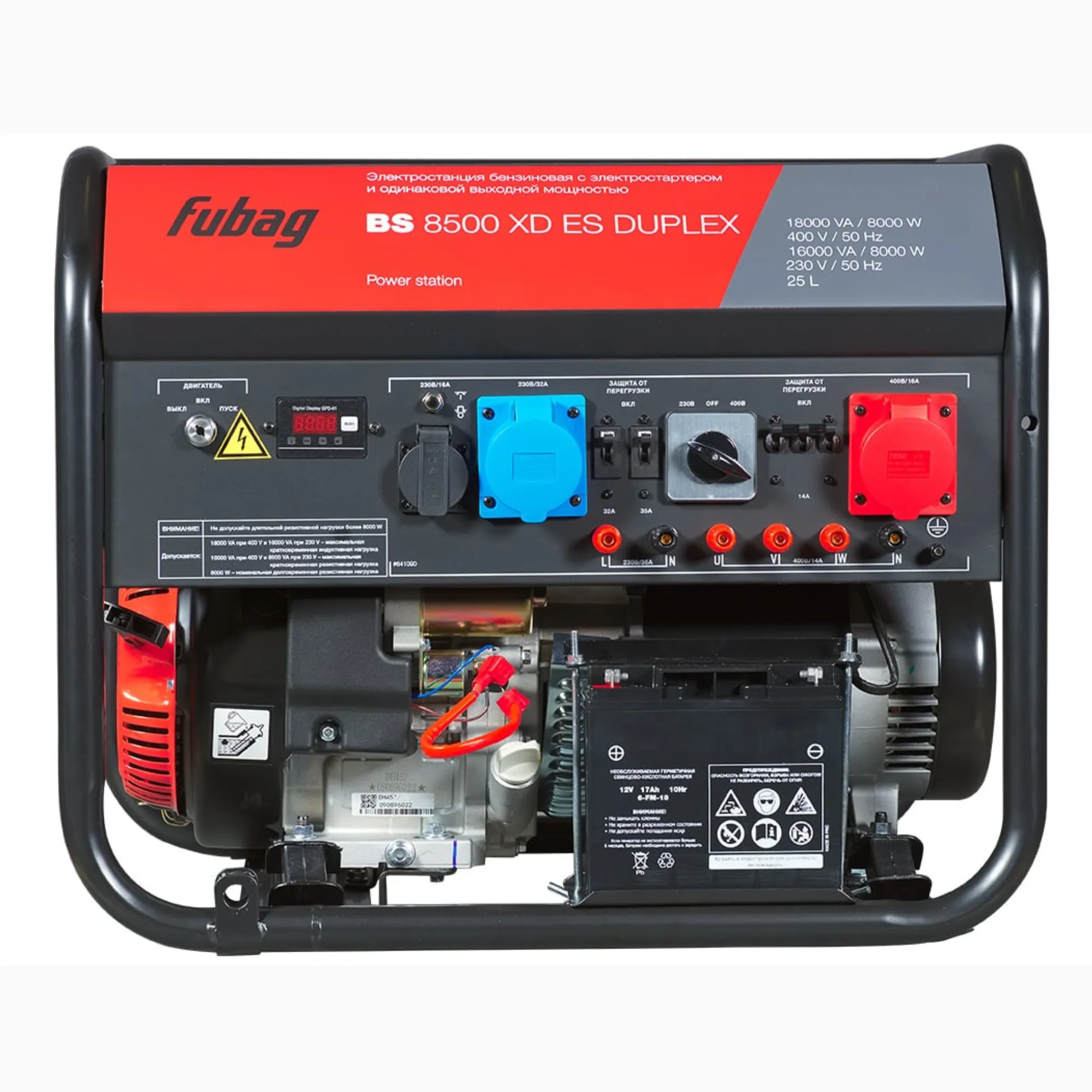

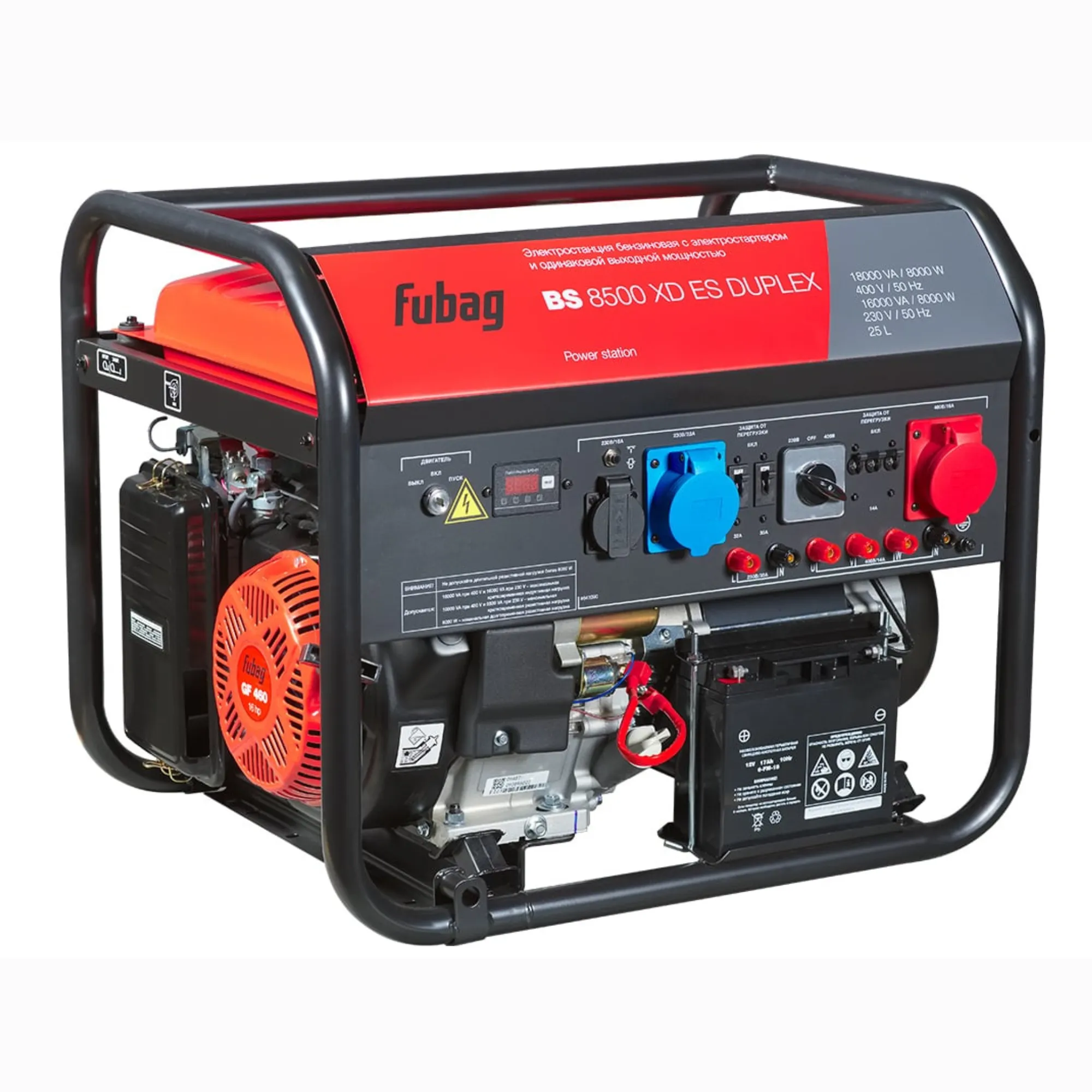

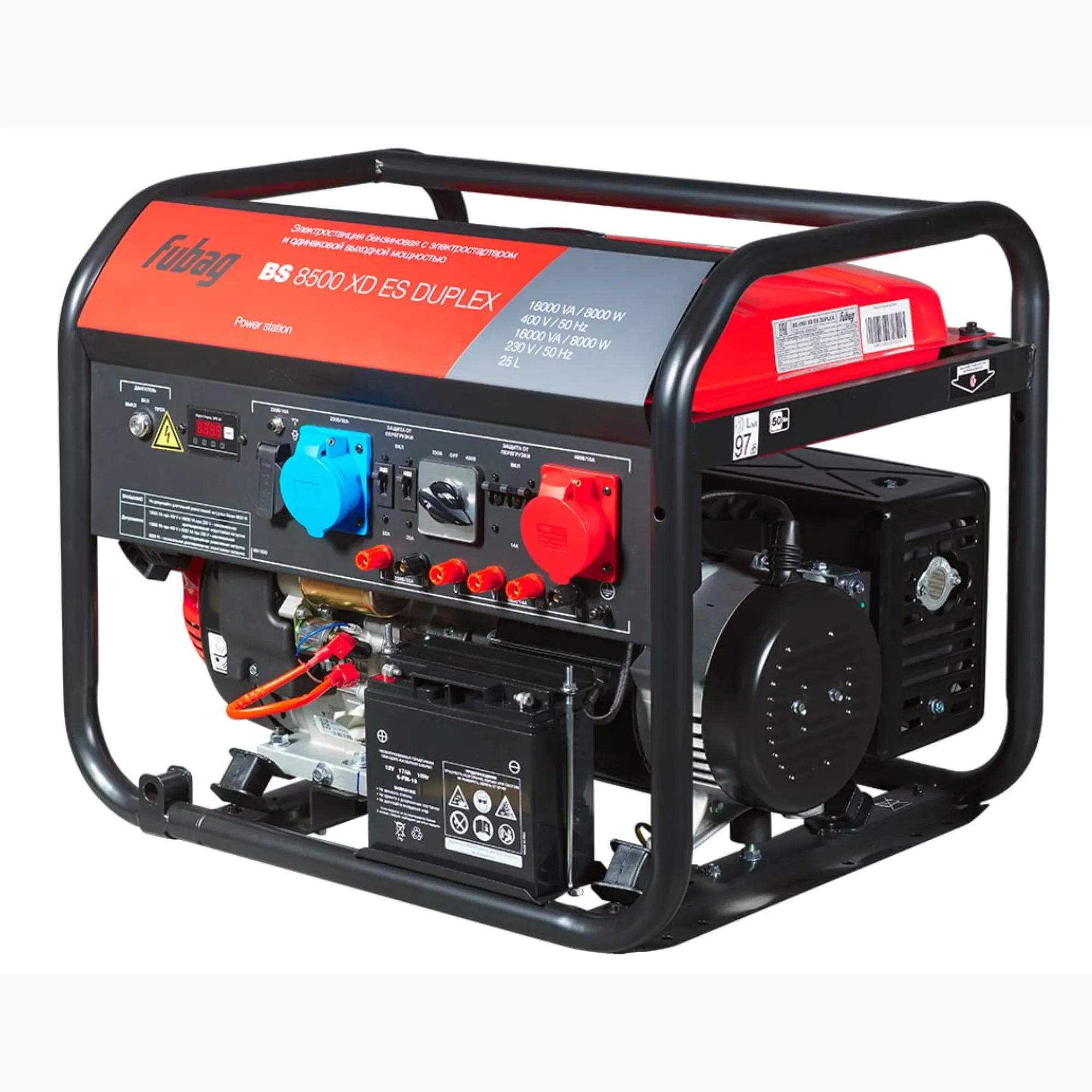

FUBAG BS 8500 XD ES DUPLEX gasoline generator with 8 kW rated output

Name: FUBAG BS 8500 XD ES DUPLEX gasoline generator with 8 kW rated output
Brand: FUBAG
SKU: BS-8500-XD-ES-DUPLEX
Price: 717600 AMD
Availability: InStock

Filter

Power (Watts)

Nominal power (watts)

FUBAG BS 8500 XD ES DUPLEX gasoline generator with 8.5 kVA maximum output

New

In stock

Model: BS 8500 XD ES DUPLEX

Vendor code: BS-8500-XD-ES-DUPLEX

Brand: FUBAG

717,600֏

Price in reward points: 717600

Found it cheaper?

7176 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description FUBAG BS 8500 XD ES DUPLEX gasoline generator 8 kW, 1/3-phase

FUBAG BS 8500 XD ES DUPLEX is a 1/3-phase gasoline generator with 8 kW rated output and up to 8.5 kVA maximum output.

Gasoline generator

8 kW rated output for dependable backup power

The FUBAG BS 8500 XD ES DUPLEX generator is designed for mobile or backup power supply for homes, workshops, construction and service work.

Maximum output8.5 kVA

Rated output8 kW

Voltage230/400 V

Fuel tank25 L

Product description

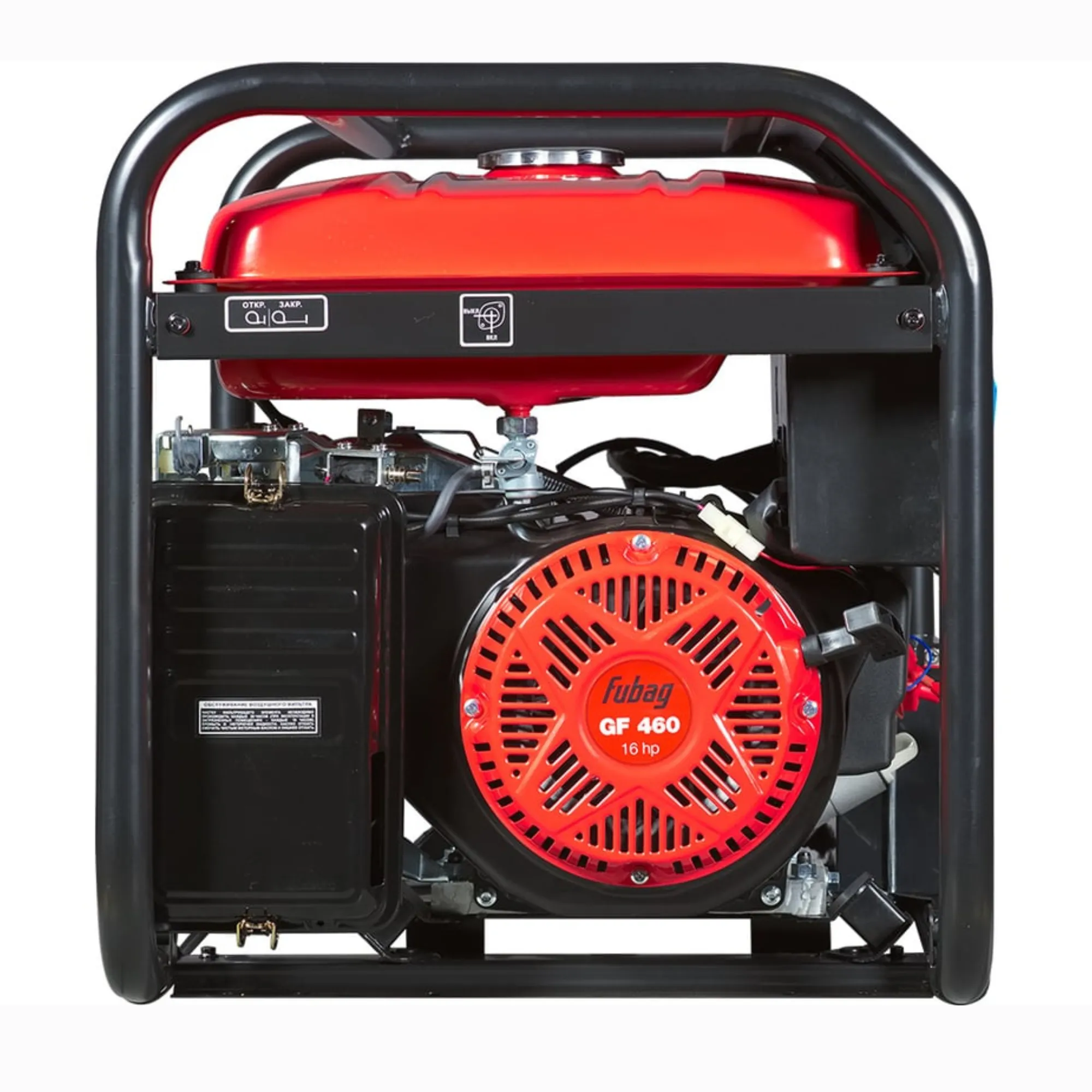

FUBAG BS 8500 XD ES DUPLEX combines 8 kW rated output, 230/400 V operating voltage and a 25 L fuel tank. The GF460 gasoline engine runs at a rated speed of 3000 rpm.

Advantages

Synchronous alternator with copper winding and AVR voltage regulation.
Overload and low-oil protection systems.
Manual and electric starting for different operating scenarios.

Technical specifications

Maximum output8.5 kVA

Rated output8 kW

Voltage230/400 V

Frequency50 Hz

Engine displacement457 cc

Fuel tank25 L

Weight95.6 kg

Output phases1/3

Package contents

Generator, matching plugs, spark-plug wrench, oil funnel, operating manual, ignition keys.

Applications

Backup power for homes, workshops, construction sites, service and mobile work. Package dimensions and weight may vary by supply batch.

Main attributes FUBAG BS 8500 XD ES DUPLEX gasoline generator 8 kW, 1/3-phase

Technical

Automatic Transfer Switch (ATS) No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Document number on the customs status of goods

Engine capacity cc 457

Engine power (Horsepower) 16

Engine type 4-stroke gasoline, 1-cylinder, air-cooled

Functions AVR voltage regulation, overload protection, low-oil engine protection

Manufacturer country Germany

Maximum sound/noise level (dB) 84

Operating temperature range, °С -15…+40

Power (W) 8500

Power factor 1/0.8

Protection class IP23

Rated output W 8000

Rated speed rpm 3000

Scope of application Backup or mobile power supply for homes, workshops, construction and service work

Special features Synchronous alternator with copper winding, AVR voltage regulation, reinforced open frame, GF460 engine

Starting system Mechanical + electrical

Warranty period. month 24

Structure

ATS connector No

Casing type Open

Inverter No

Number of cylinders pcs 1

Number of output phases 3

Number of sockets 12 V 0

Number of sockets 230 V 2

Number of sockets 380 V 1

USB socket 0

Weight kg 95.6

Nutrition

Fuel AI-92 gasoline

Fuel consumption g/kWh 580

Method of power supply of the instrument Gasoline engine

Nominal frequency of alternating current, Hz 50

Oil consumption g/kWh 2.5

Voltage (Volt) 230/400

Voltage regulation AVR

Size

Fuel tank L 25

Oil volume l 1.2

Packing

Packing Factory transport packaging

Set

Included in the package Generator, matching socket plugs, spark-plug wrench, oil funnel, operating manual, ignition keys
