TSS SGG 12000EHLA: gasoline generator for working loads

Filter
77600 - 11700000 ֏ Price
- ֏
Stock status
Inverter
Number of output phases
Power type
Special features
Amperage Amps
Brand
Power (Watts)
12.8 - 1418900 Weight
-
New
Nominal power (watts)
New
In stock
Model: SGG 12000EHLA
Vendor code: BE71639819
Brand: TSS
1,703,000֏
Price in reward points: 1703000
Found it cheaper?
17030 points to the account
Short description
Gasoline generator TSS SGG 12000EHLAThe gasoline generator TSS SGG 12000EHLA is intended for stable primary or standby electricity supply. Its 12 kW rated output and 13 kW maximum output help match the unit to the planne...
Read more...
Brief Attributes
Automatic Transfer Switch (ATS) - No
Certificate of Conformity number -
See all attributes
Payment
Delivery
Delivery within 2 hours.
Delivery within 2 hours.
Yerevan
3,000֏
Delivery within 24 hours.
Delivery within 24 hours.
Yerevan
Free
Delivery within 3 hours.
Delivery within 3 hours.
Regions adjacent to Yerevan
5,000֏
Delivery within 36 hours.
Delivery within 36 hours.
Regions adjacent to Yerevan
Free
Delivery within 24 hours.
Delivery within 24 hours.
Regions not adjacent to Yerevan
35,000֏
Delivery within 7 days.
Delivery within 7 days.
Regions not adjacent to Yerevan
Free

Description Gasoline generator TSS SGG 12000EHLA, 12 kW, 230 V

Gasoline generator TSS SGG 12000EHLA

The gasoline generator TSS SGG 12000EHLA is intended for stable primary or standby electricity supply. Its 12 kW rated output and 13 kW maximum output help match the unit to the planned electrical load.

12 kW13 kW230 V1 phase50 Hz40 L

12 kW rated output for primary and standby power

Product description

The gasoline generator TSS SGG 12000EHLA is intended for stable primary or standby electricity supply. Its 12 kW rated output and 13 kW maximum output help match the unit to the planned electrical load.

The 230 V output, 50 Hz frequency and electric starting system support operation in varied working conditions. The open frame configuration protects the main assemblies and simplifies routine use.

Advantages
  • 12 kW rated and 13 kW maximum output for stable working-load supply.
  • Automatic voltage regulation and overload protection.
  • electric starting system for convenient commissioning.
  • 40 L fuel tank for organizing extended operating periods.
  • IP 23 protection rating and open frame construction.
  • ATS connector for an external automatic transfer system.
Technical characteristics
Equipment type— Gasoline generator.
Fuel— gasoline.
Rated output— 12 kW.
Maximum output— 13 kW.
Output voltage— 230 V.
Number of phases— 1 phase.
Frequency— 50 Hz.
Engine— LC2V80FD.
Engine displacement— 764 cm³.
Number of cylinders— 2.
Engine power— 24.5 hp.
Engine speed— 3000 rpm.
Fuel tank— 40 L.
Starting system— electric.
Noise level— 82 dB.
Protection rating— IP 23.
Power factor— 1.
Oil capacity— 1.8 L.
230 V outlets— 2.
380 V outlets— 0.
ATS connector— yes.
Automatic transfer input— no.
Construction— open frame.
Weight— 190 kg.
Dimensions— 1140 × 770 × 940 mm.

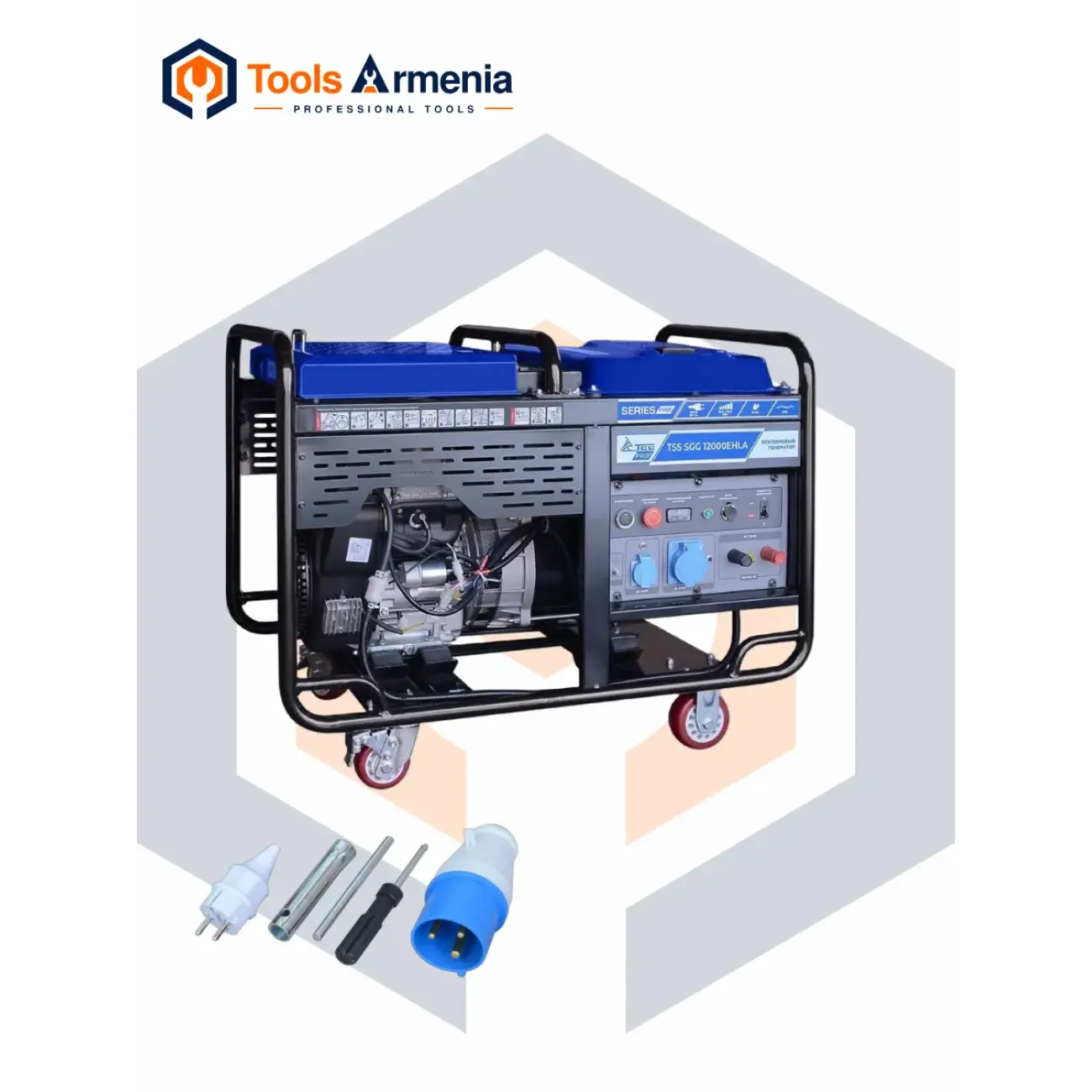

Package contents
  • TSS SGG 12000EHLA generator.
  • Operating and safety manual.
  • Warranty documents.
  • Standard factory connection accessories.
  • Standard starting accessories.
Application areas
  • Standby power for private houses and holiday homes.
  • Operation of workshops, garages and small production areas.
  • Power for electric tools during construction and repair.
  • Field work, mobile retail and event support.
  • Temporary backup during utility outages.
Product description

The gasoline generator TSS SGG 12000EHLA is intended for stable primary or standby electricity supply. Its 12 kW rated output and 13 kW maximum output help match the unit to the planned electrical load.

The 230 V output, 50 Hz frequency and electric starting system support operation in varied working conditions. The open frame configuration protects the main assemblies and simplifies routine use.

Advantages
  • 12 kW rated and 13 kW maximum output for stable working-load supply.
  • Automatic voltage regulation and overload protection.
  • electric starting system for convenient commissioning.
  • 40 L fuel tank for organizing extended operating periods.
  • IP 23 protection rating and open frame construction.
  • ATS connector for an external automatic transfer system.
Technical characteristics
Equipment type— Gasoline generator.
Fuel— gasoline.
Rated output— 12 kW.
Maximum output— 13 kW.
Output voltage— 230 V.
Number of phases— 1 phase.
Frequency— 50 Hz.
Engine— LC2V80FD.
Engine displacement— 764 cm³.
Number of cylinders— 2.
Engine power— 24.5 hp.
Engine speed— 3000 rpm.
Fuel tank— 40 L.
Starting system— electric.
Noise level— 82 dB.
Protection rating— IP 23.
Power factor— 1.
Oil capacity— 1.8 L.
230 V outlets— 2.
380 V outlets— 0.
ATS connector— yes.
Automatic transfer input— no.
Construction— open frame.
Weight— 190 kg.
Dimensions— 1140 × 770 × 940 mm.
Package contents
  • TSS SGG 12000EHLA generator.
  • Operating and safety manual.
  • Warranty documents.
  • Standard factory connection accessories.
  • Standard starting accessories.
Application areas
  • Standby power for private houses and holiday homes.
  • Operation of workshops, garages and small production areas.
  • Power for electric tools during construction and repair.
  • Field work, mobile retail and event support.
  • Temporary backup during utility outages.

Technical data, package contents, packing dimensions and weight may be refined for a specific supply batch. Follow the factory manual supplied with the unit before operation.

Main attributes Gasoline generator TSS SGG 12000EHLA, 12 kW, 230 V

Technical
Automatic Transfer Switch (ATS) No
Certificate of Conformity number
Certificate/declaration expiration date
Date of registration of the certificate/declaration
Declaration of Conformity number
Document number on the customs status of goods
Engine capacity cc 764
Engine power (Horsepower) 24.5
Engine type gasoline, four-stroke
Functions Primary or standby electricity generation
Manufacturer country China
Maximum sound/noise level (dB) 82
Operating temperature range, °С According to operating manual
Power (W) 13000
Power factor 1
Protection class IP 23
Rated output W 12000
Rated speed rpm 3000
Scope of application home, construction, standby supply
Special features Automatic voltage regulation and overload protection
Starting system electric
Warranty period. month 12
Structure
ATS connector Yes
Casing type open frame
Inverter No
Number of cylinders pcs 2
Number of output phases 1
Number of sockets 12 V 0
Number of sockets 230 V 2
Number of sockets 380 V 0
USB socket 0
Weight kg 190
Nutrition
Fuel gasoline
Fuel consumption g/kWh Not specified
Method of power supply of the instrument gasoline engine
Nominal frequency of alternating current, Hz 50
Oil consumption g/kWh Not specified
Voltage (Volt) 230
Voltage regulation automatic AVR regulation
Size
Fuel tank L 40
Oil volume l 1.8
Packing
Packing Factory packing
Set
Included in the package Operating manual and standard connection accessories

Reviews about Gasoline generator TSS SGG 12000EHLA, 12 kW, 230 V

0
0
1
0%
2
0%
3
0%
4
0%
5
0%

There are no reviews for this product.

Questions and Answers (FAQ) Gasoline generator TSS SGG 12000EHLA, 12 kW, 230 V

There are no questions about this product.

How to use Gasoline generator TSS SGG 12000EHLA, 12 kW, 230 V

Soon...

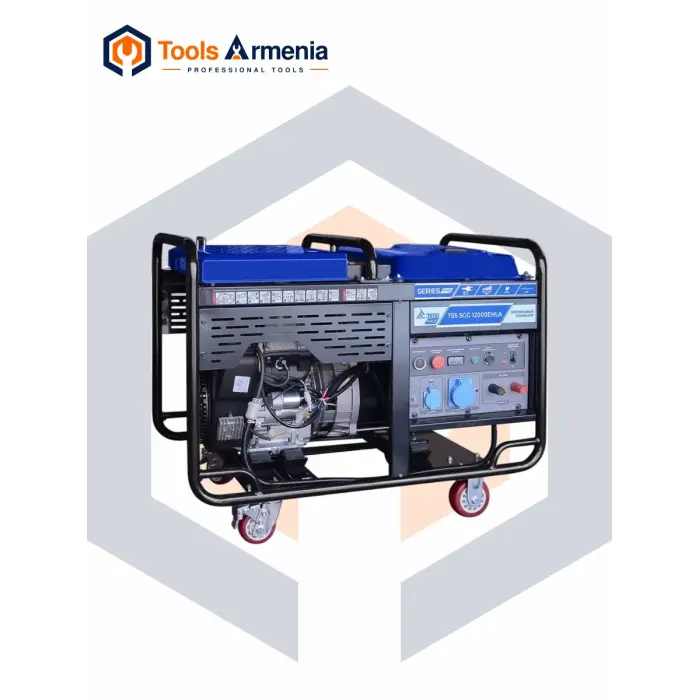

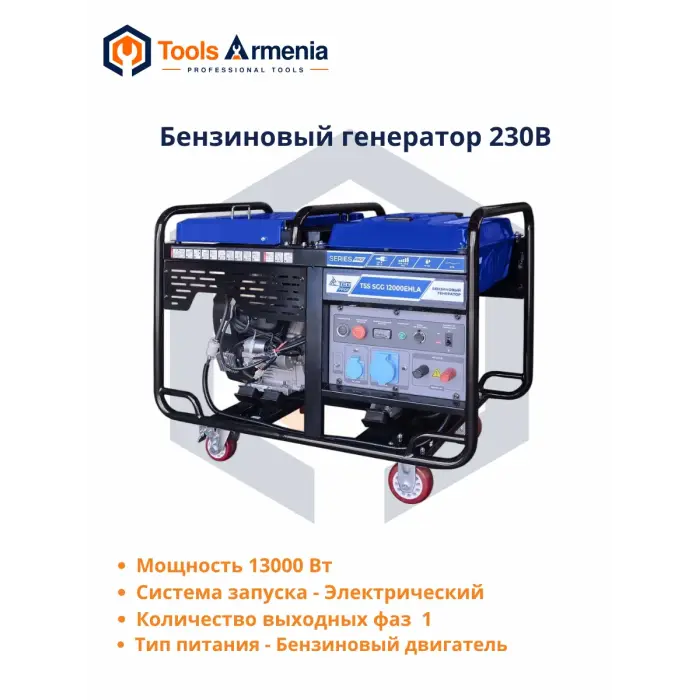

Gasoline generator TSS SGG 12000EHLA, main product view
