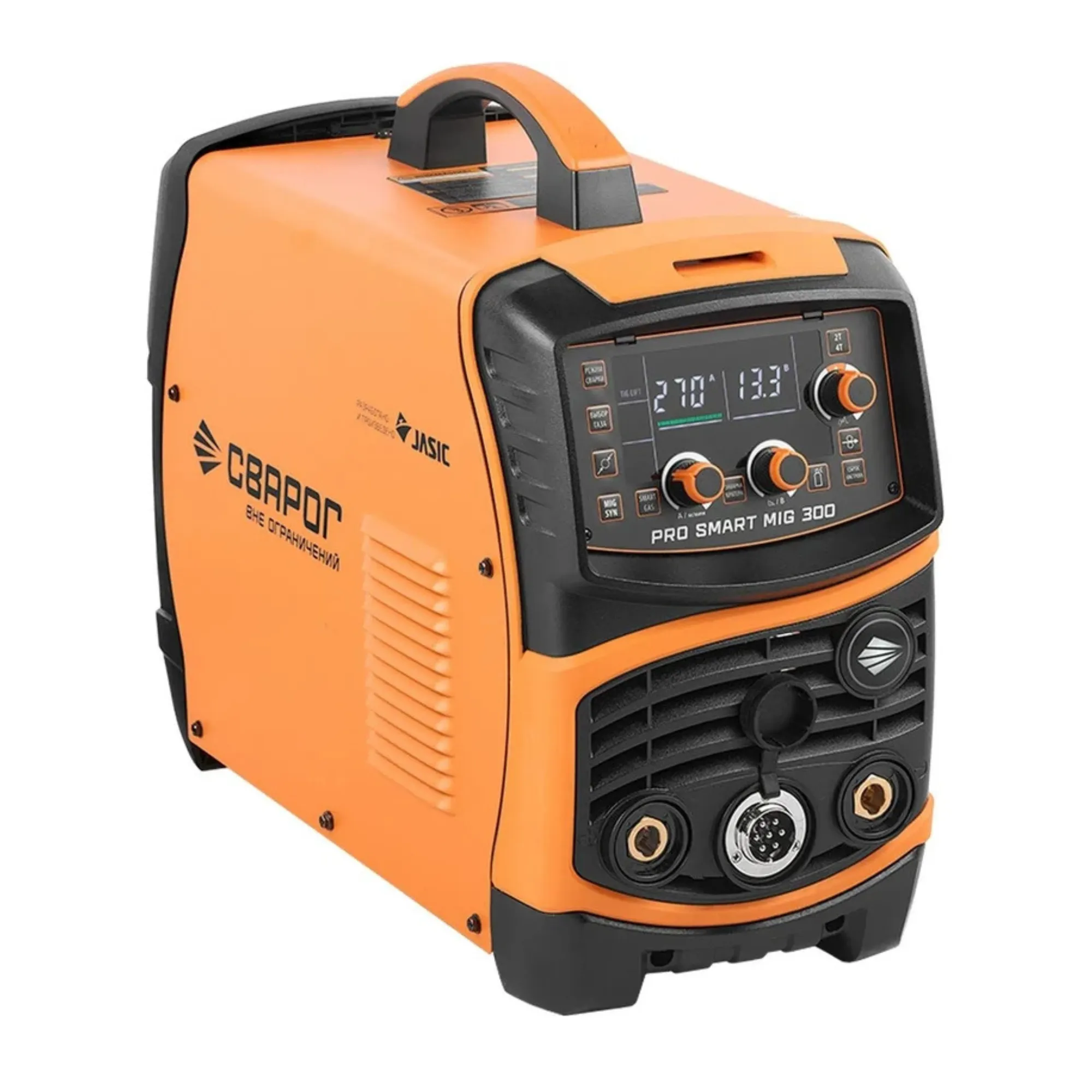

Description Svarog PRO SMART MIG 300 multi-process welder, 270 A

Svarog PRO SMART MIG 300 is a multi-process welder: max current 270 A, duty cycle 60%.

Welding

Duty cycle 60%, input voltage 320–430 V

The welder is designed for joining steel structures, pipes and metal parts in the workshop, on site and at home.

Max current270 A

Duty cycle60%

Input voltage320–430 V

Weight25.2 kg

Product description

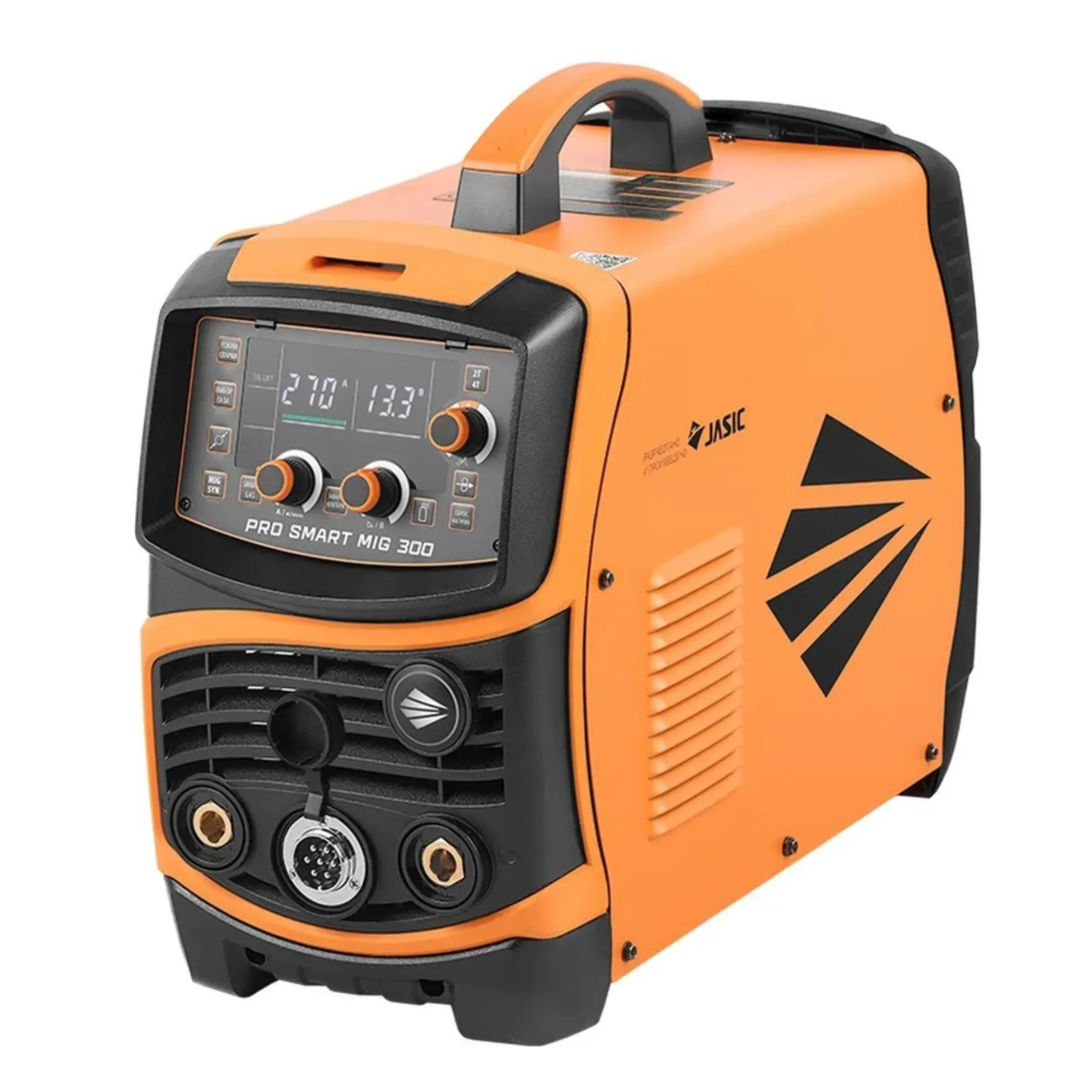

Svarog PRO SMART MIG 300 is a multi-process welder (MIG/MAG + MMA + TIG). Max current is 270 A, duty cycle 60%, input voltage 320–430 V. It weighs 25.2 kg.

Advantages

Welding current 60–270 A.
Duty cycle 60% (40°C).
MMA 50–220 A, Lift TIG 50–270 A.
Synergic MIG, 2T/4T, SMART GAS, crater fill.

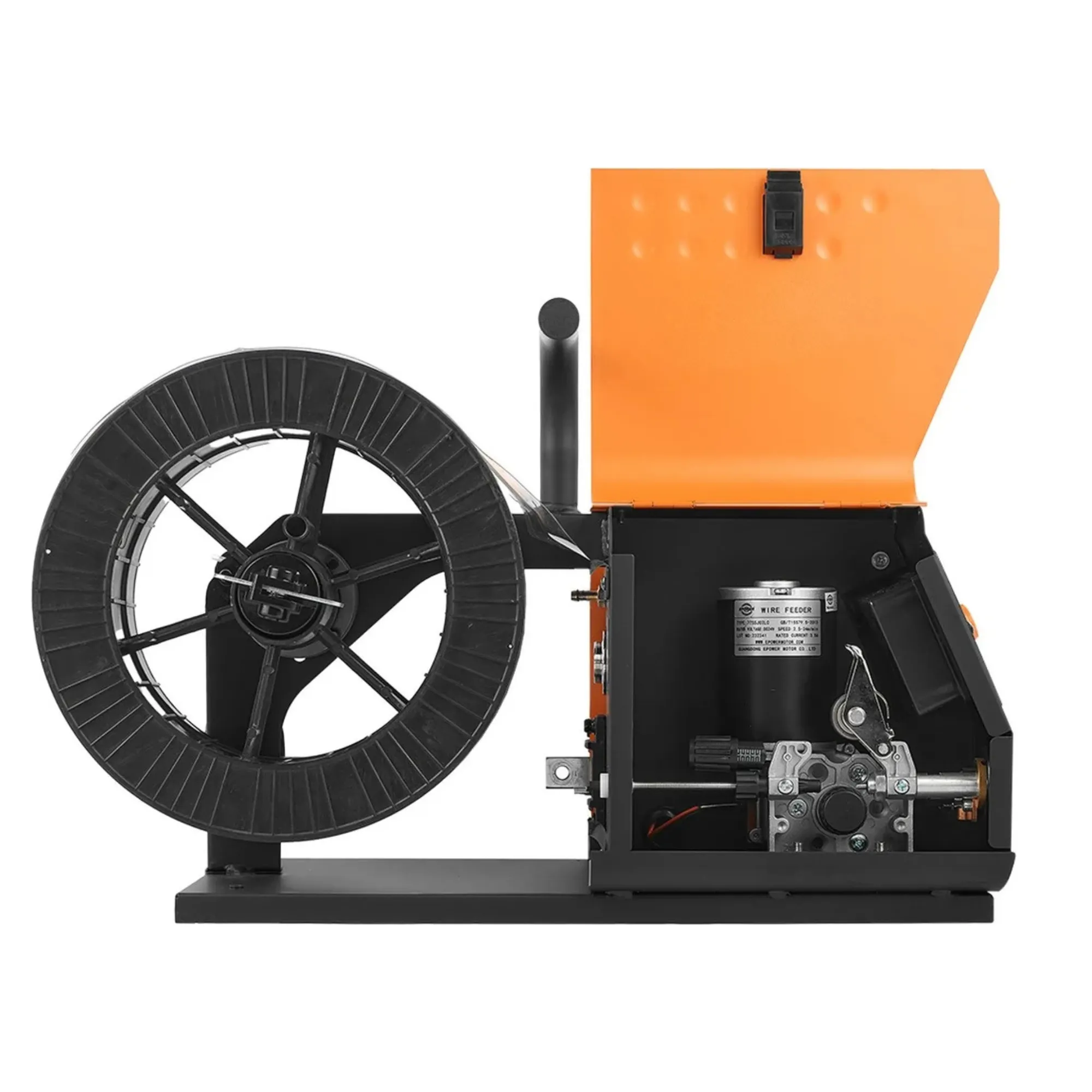

Wire 0.8–1.2 mm, spool up to 20 kg, separate wire feeder.

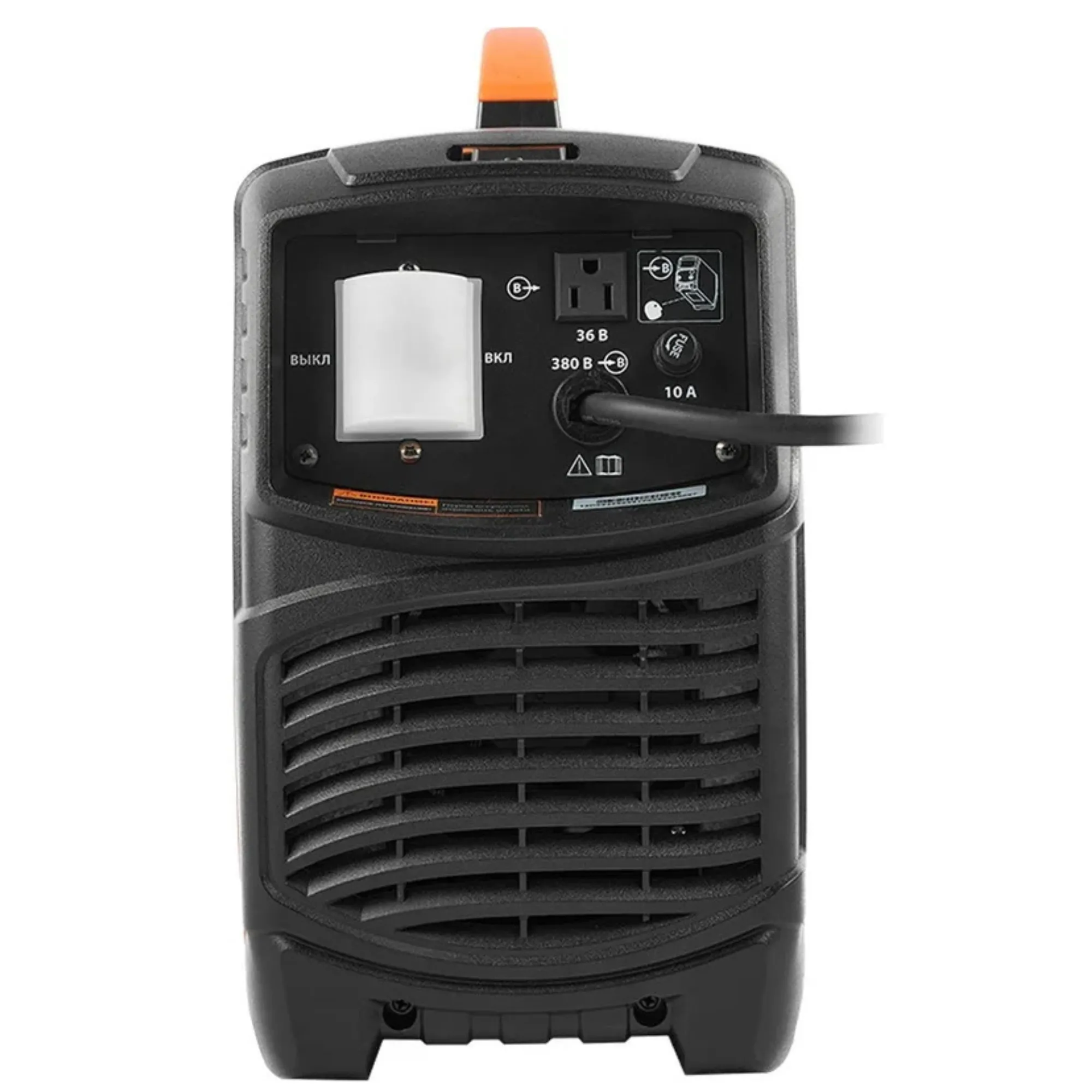

Three-phase 320–430 V, IP23S, works down to −30 °C.

Technical specifications

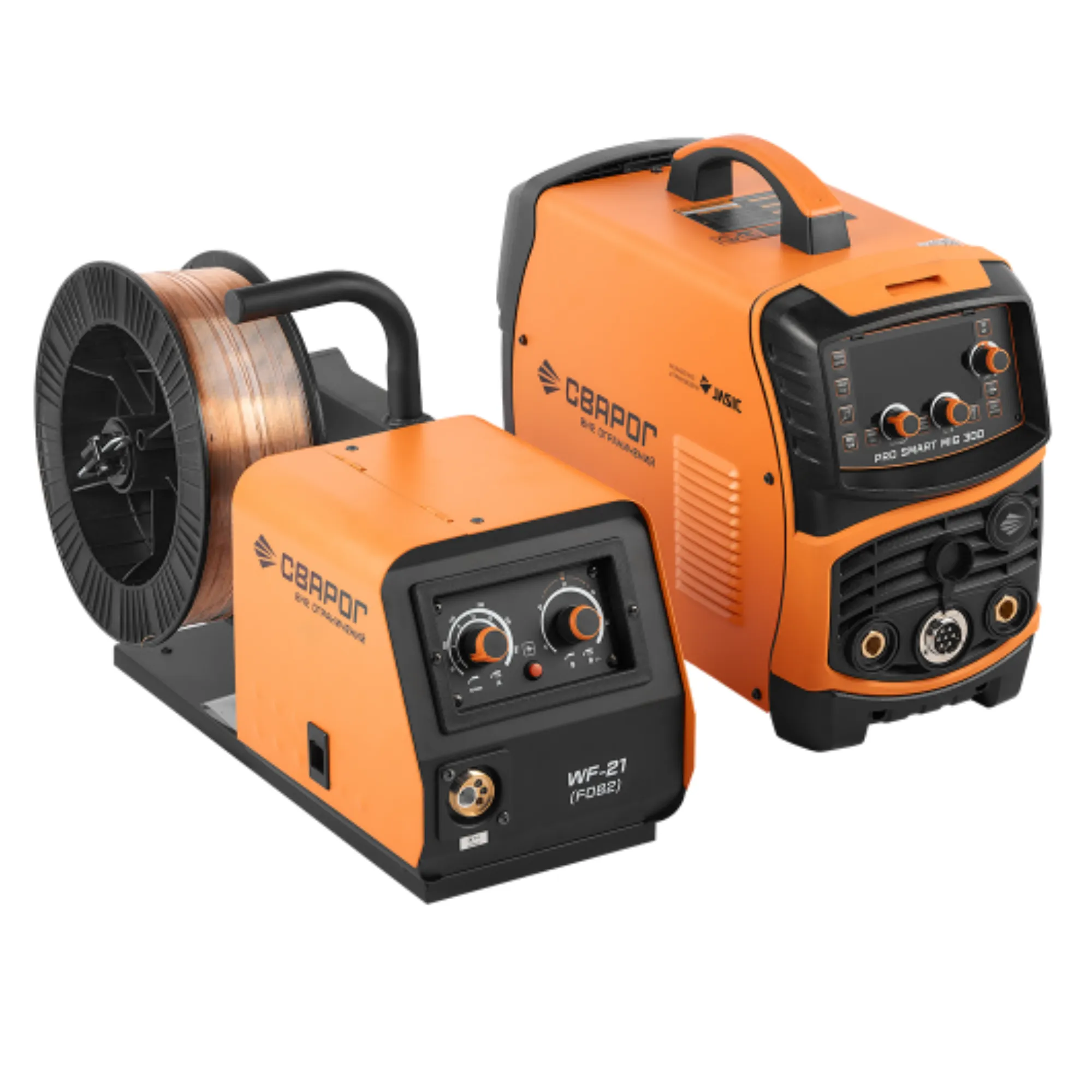

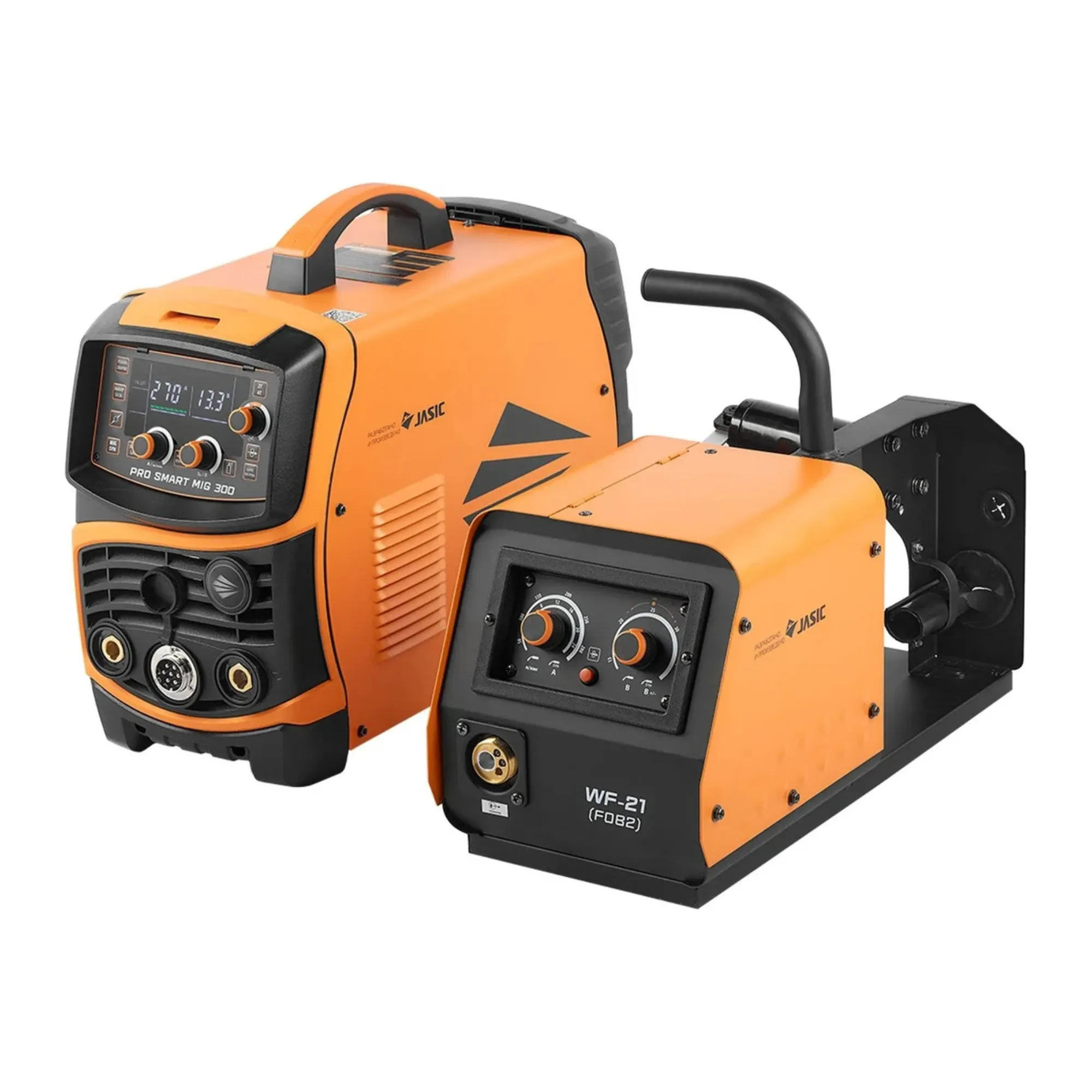

Included in the packagePower source, WF-21 (F0B2) wire feeder, TECH MS 24 torch (3 m), 300 A earth clamp (3 m), spare parts kit, Ø6 gas hose (4 m), gas regulator with 36 V heater, passport and operating manual

Manufacturer countryChina

PackingBox

Weight kg25.2

Voltage (Volt)380

Power (W)9200

Welding Type(s)MIG/MAG + MMA + TIG

Maximum electrode diameter mm5.0

No-load voltage V62

Warranty period. month12

Minimum electrode diameter mm1.6

Pull Force Lbs0

Air flow (l/min)0

TypeMulti-process welder

Power supply typeCorded

Instrument classProfessional

Cable length (cm)300

Rated current A250

MMA power consumption, kVA8

Protection classClass I

Power factor0.92

Nominal frequency of alternating current, Hz50

DisplayYes

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)0

Maximum cutting thickness in stainless steel (mm)0

Duty cycle, %60

Minimum welding current (A)50

Maximum welding current (A)270

Minimum input voltage (V)320

Maximum input voltage (V)430

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0.8

Maximum wire diameter (mm)1.2

Maximum wire spool weight (kg)18

Gasless welding (flux-cored wire)Yes

Hot StartYes

Arc ForceYes

Anti-StickYes

VRD (voltage reduction device)No

Ingress protection rating (IP)IP23S

Welding cable length (m)3

Cooling typeAir

Built-in compressorNo

Arc ignition typeContact (scratch start)

Maximum weldable metal thickness (mm)12

Package contents

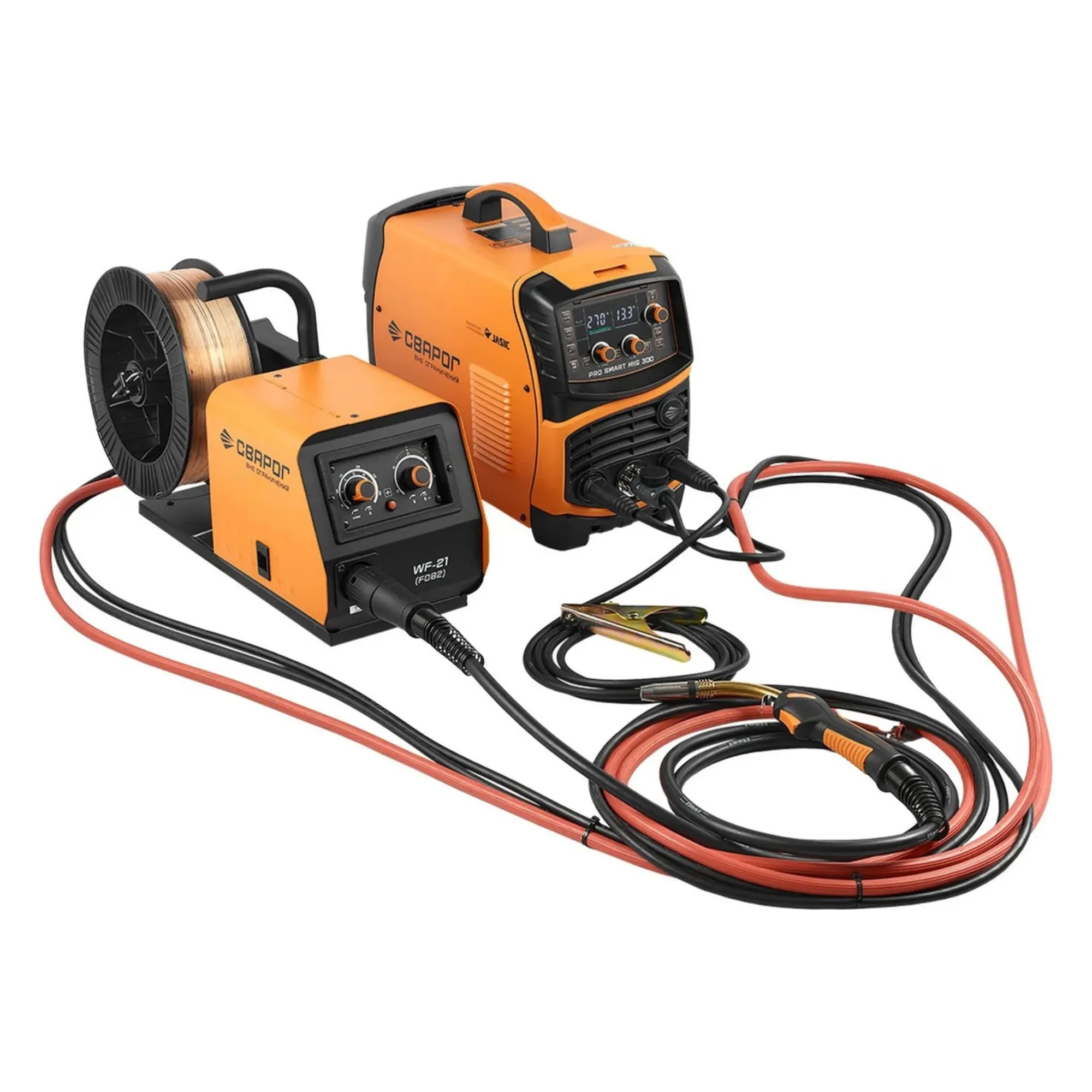

Power source, WF-21 (F0B2) wire feeder, TECH MS 24 torch (3 m), 300 A earth clamp (3 m), spare parts kit, Ø6 gas hose (4 m), gas regulator with 36 V heater, passport and operating manual.

Applications

Industrial semi-automatic welding of steel structures in workshops and high-volume production.

Main attributes Svarog PRO SMART MIG 300 multi-process welder, 270 A

Technical

Anti-Stick Yes

Arc Force Yes

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display Yes

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) Yes

Hot Start Yes

Ingress protection rating (IP) IP23S

Instrument class Professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 0

Maximum cutting thickness in stainless steel (mm) 0

Maximum weldable metal thickness (mm) 12

Maximum welding current (A) 270

Maximum wire diameter (mm) 1.2

Maximum wire spool weight (kg) 18

Minimum welding current (A) 50

Minimum wire diameter (mm) 0.8

Overheat protection Yes

Power (W) 9200

Power factor 0.92

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 3

Minimum electrode diameter mm 1.6

Maximum electrode diameter mm 5.0

Vacuum pressure

Air flow (l/min) 0

Structure

Arc ignition type Contact (scratch start)

Cooling type Air

Type Multi-process welder

Weight kg 25.2

Welding current type Direct current (DC)

Welding Type(s) MIG/MAG + MMA + TIG

Nutrition

Maximum input voltage (V) 430

Minimum input voltage (V) 320

MMA power consumption, kVA 8

No-load voltage V 62

Nominal frequency of alternating current, Hz 50

Power supply type Corded

Rated current A 250

Voltage (Volt) 380

Size

Cable length (cm) 300

Packing

Packing Box

Set

Included in the package Power source, WF-21 (F0B2) wire feeder, TECH MS 24 torch (3 m), 300 A earth clamp (3 m), spare parts kit, Ø6 gas hose (4 m), gas regulator with 36 V heater, passport and operating manual
