TSS EVO CUT-40 plasma cutter: max current 40 A

Name: TSS EVO CUT-40 plasma cutter: max current 40 A
Brand: TSS
SKU: TS40393724
Price: 158890 AMD
Availability: InStock

Filter

Power (Watts)

MMA power consumption, kVA

New

In stock

Model: EVO CUT-40

Vendor code: TS40393724

Brand: TSS

158,890֏

Price in reward points: 158890

Found it cheaper?

1589 points to the account

Payment

Delivery

Delivery within 2 hours.

Yerevan

3,000֏

Delivery within 24 hours.

Yerevan

Free

Delivery within 3 hours.

Regions adjacent to Yerevan

5,000֏

Delivery within 36 hours.

Regions adjacent to Yerevan

Free

Delivery within 24 hours.

Regions not adjacent to Yerevan

35,000֏

Delivery within 7 days.

Regions not adjacent to Yerevan

Free

Description TSS EVO CUT-40 plasma cutter, 40 A

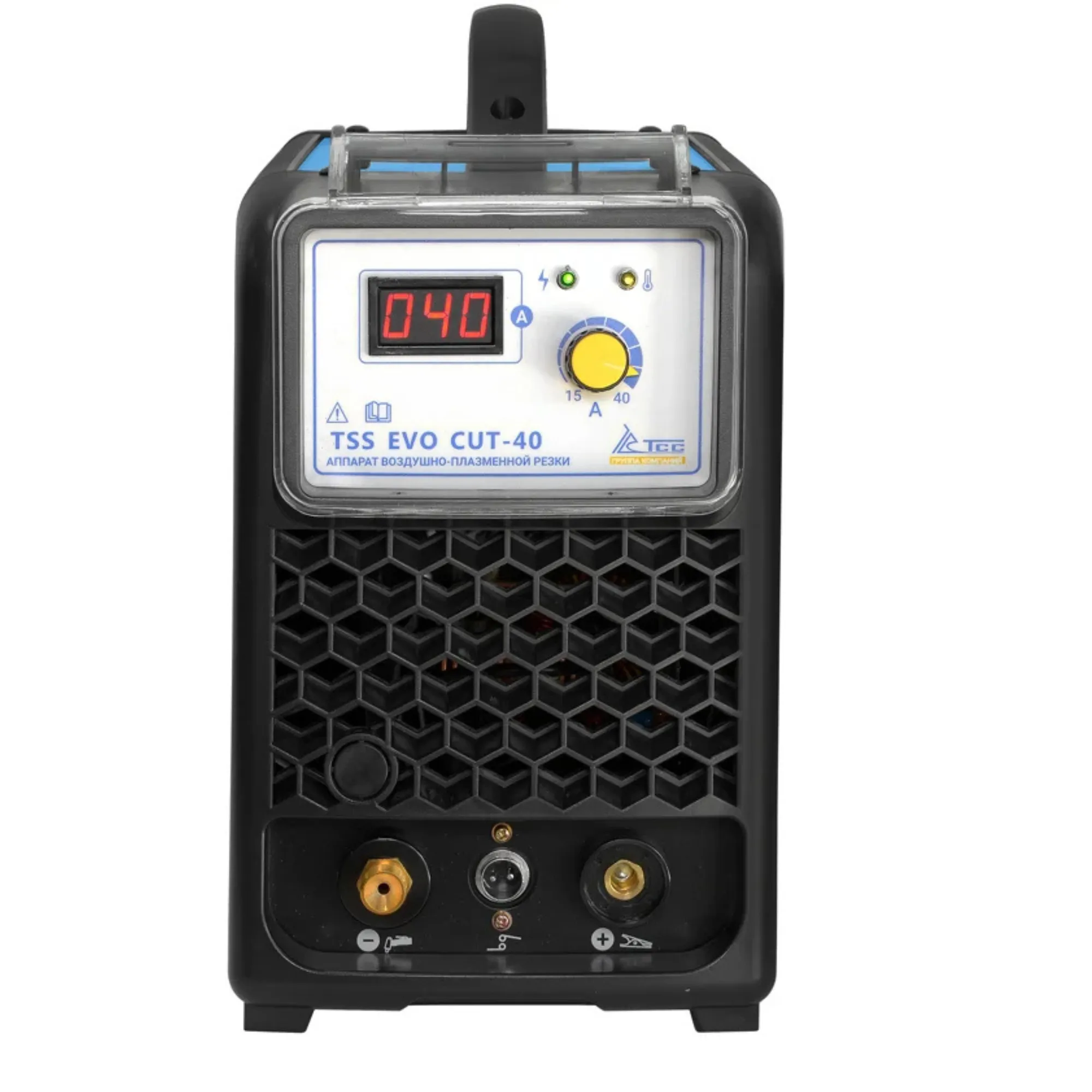

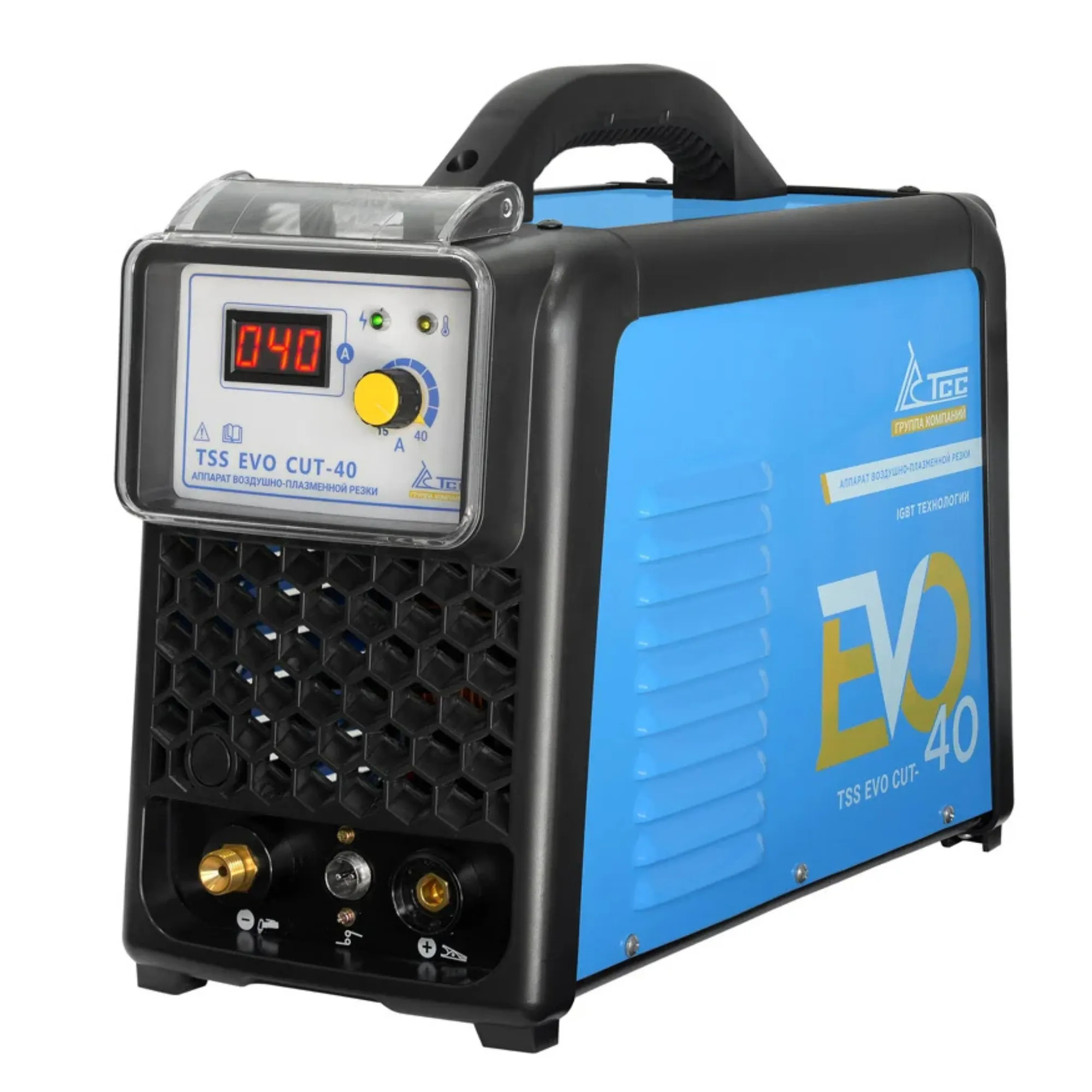

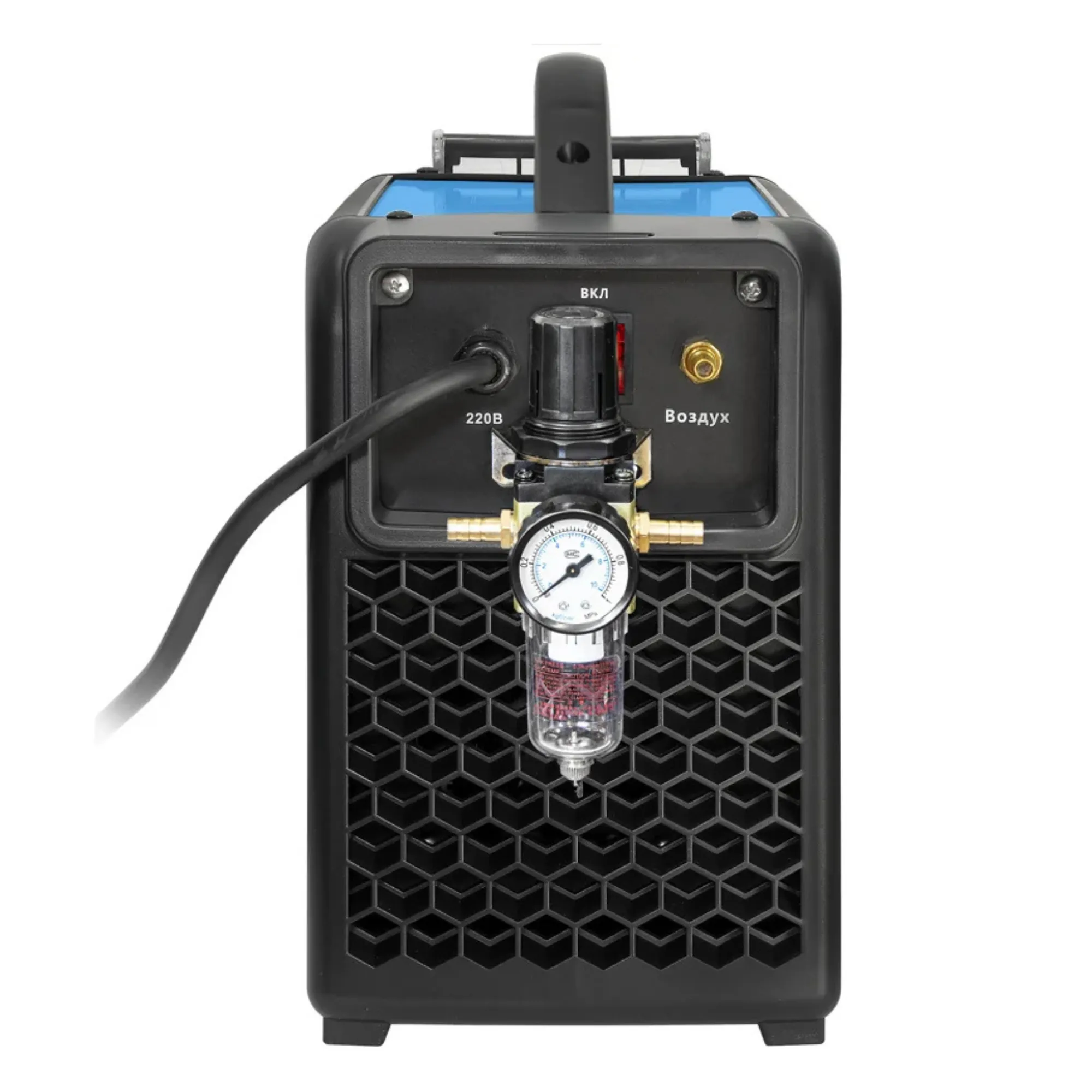

TSS EVO CUT-40 is a plasma cutter: max current 40 A, cut up to 12 mm.

Plasma cutting

Cut up to 12 mm, input voltage 187–253 V

The plasma cutter cuts steel, stainless steel, aluminium and other conductive metals quickly and cleanly.

Max current40 A

Cut up to12 mm

Input voltage187–253 V

Weight9 kg

Product description

TSS EVO CUT-40 is a plasma cutter (plasma cutting). Max current is 40 A, cut up to 12 mm, input voltage 187–253 V. It weighs 9 kg.

Advantages

Cutting current up to 40 A.
Cuts steel up to 12 mm.
220 V supply.
Overheat protection, fan cooling.
60% duty cycle.

Technical specifications

Included in the packagePower source, plasma torch 4 m, torch spare parts, earth cable with clamp 2 m, manual, warranty card

Manufacturer countryChina

PackingBox

Weight kg9

Voltage (Volt)220

Power (W)5400

Welding Type(s)Plasma cutting (CUT)

Maximum electrode diameter mm0

No-load voltage V240

Warranty period. month12

Minimum electrode diameter mm0

Pull Force Lbs0

Air flow (l/min)200

TypePlasma cutter

Power supply typeCorded

Instrument classSemi-professional

Cable length (cm)200

Rated current A100

MMA power consumption, kVA5.4

Protection classClass I

Power factor0.7

Nominal frequency of alternating current, Hz50/60

DisplayNo

Overheat protectionYes

Maximum cutting capacity in steel 400 N/mm² (mm)12

Maximum cutting thickness in stainless steel (mm)8

Duty cycle, %60

Minimum welding current (A)15

Maximum welding current (A)40

Minimum input voltage (V)187

Maximum input voltage (V)253

Welding current typeDirect current (DC)

Minimum wire diameter (mm)0

Maximum wire diameter (mm)0

Maximum wire spool weight (kg)0

Gasless welding (flux-cored wire)No

Hot StartNo

Arc ForceNo

Anti-StickNo

VRD (voltage reduction device)No

Ingress protection rating (IP)IP21

Welding cable length (m)4

Cooling typeAir

Built-in compressorNo

Arc ignition typeContact (scratch start)

Maximum weldable metal thickness (mm)0

Package contents

Power source, plasma torch 4 m, torch spare parts, earth cable with clamp 2 m, manual, warranty card.

Applications

Cutting sheets, pipes and profiles of mild and stainless steel, aluminium and copper in workshops and on construction sites.

Main attributes TSS EVO CUT-40 plasma cutter, 40 A

Technical

Anti-Stick No

Arc Force No

Built-in compressor No

Certificate of Conformity number

Certificate/declaration expiration date

Date of registration of the certificate/declaration

Declaration of Conformity number

Display No

Document number on the customs status of goods

Duty cycle, % 60

Gasless welding (flux-cored wire) No

Hot Start No

Ingress protection rating (IP) IP21

Instrument class Semi-professional

Manufacturer country China

Maximum cutting capacity in steel 400 N/mm² (mm) 12

Maximum cutting thickness in stainless steel (mm) 8

Maximum weldable metal thickness (mm) 0

Maximum welding current (A) 40

Maximum wire diameter (mm) 0

Maximum wire spool weight (kg) 0

Minimum welding current (A) 15

Minimum wire diameter (mm) 0

Overheat protection Yes

Power (W) 5400

Power factor 0.7

Protection class Class I

Pull Force Lbs 0

VRD (voltage reduction device) No

Warranty period. month 12

Welding cable length (m) 4

Minimum electrode diameter mm 0

Maximum electrode diameter mm 0

Vacuum pressure

Air flow (l/min) 200

Structure

Arc ignition type Contact (scratch start)

Cooling type Air

Type Plasma cutter

Weight kg 9

Welding current type Direct current (DC)

Welding Type(s) Plasma cutting (CUT)

Nutrition

Maximum input voltage (V) 253

Minimum input voltage (V) 187

MMA power consumption, kVA 5.4

No-load voltage V 240

Nominal frequency of alternating current, Hz 50/60

Power supply type Corded

Rated current A 100

Voltage (Volt) 220

Size

Cable length (cm) 200

Packing

Packing Box

Set

Included in the package Power source, plasma torch 4 m, torch spare parts, earth cable with clamp 2 m, manual, warranty card

Reviews about TSS EVO CUT-40 plasma cutter, 40 A

There are no reviews for this product.

Questions and Answers (FAQ) TSS EVO CUT-40 plasma cutter, 40 A

There are no questions about this product.

How to use TSS EVO CUT-40 plasma cutter, 40 A

Soon...

TSS EVO CUT-40 plasma cutter: max current 40 A

Model: EVO CUT-40

In stock

158,890֏

Tags: TSS, plasma cutter, welding, metalworking, workshop
